Biamp Desono DX-IC6 6.5” High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (Pair, White) - 910.0104.900

Biamp SKU: 910.0104.900
No reviews
Price:
$580.00

Description

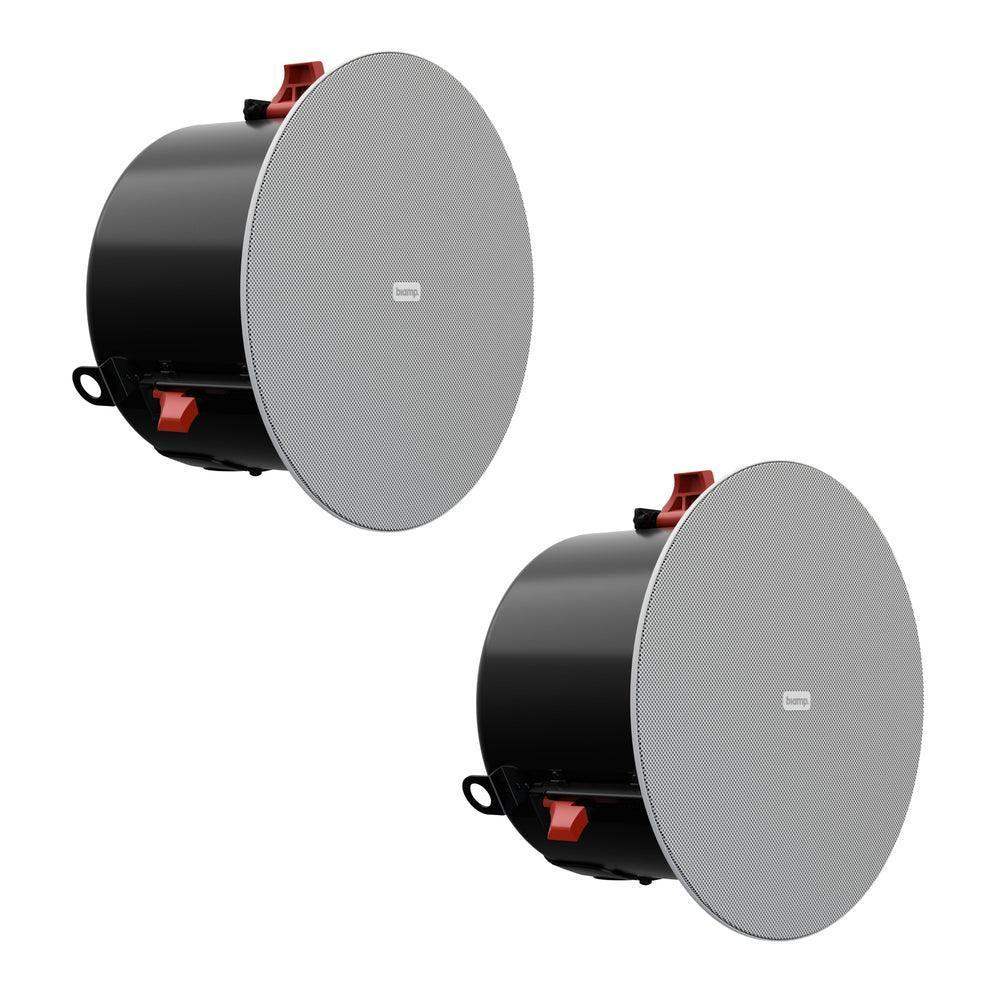

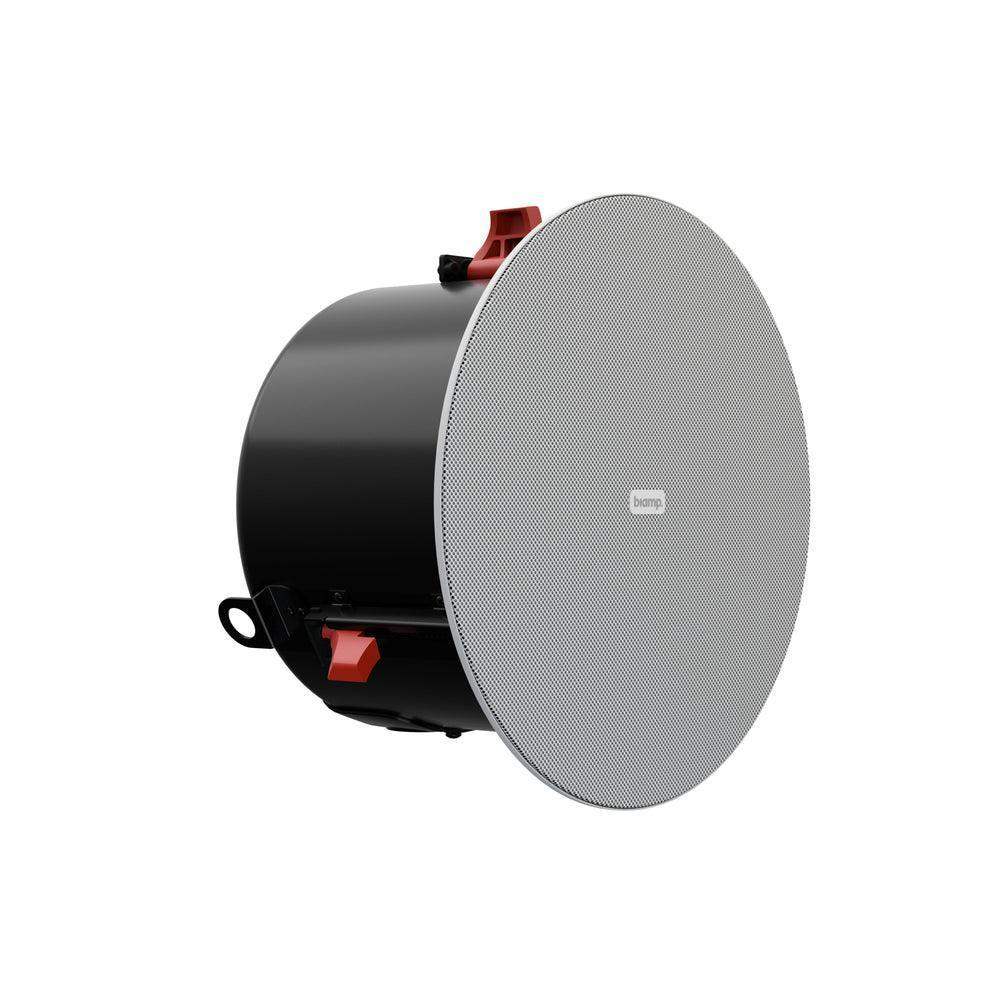

Sold as a pair, Available in standard white or black finish, the powerful and versatile Desono DX-IC6 provides high-quality paging and musical performance suitable for numerous applications where the importance of sonic quality cannot be ignored. Particularly effective when supported by the DX-IC10SUB, a DX-IC6 system is capable of meeting demanding needs at a cost usually associated with much smaller loudspeakers. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC6 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC6 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 65 Hz to 20 kHz
Nominal Beamwidth (H x V) 115°, conical
Transducers LF 1 x 6.5" (165 mm)
HF 1 x 1.0" (25 mm) exit compression driver
Sensitivity 94 dB (2.83 V)
94dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling 28 V (100W @ 8 Ω)
Nominal Maximum SPL Peak 120 dB
Continuous 114 dB
Autoformer 70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W
Recommended Amplifiers 100W - 200W @ 8 Ω, (31V - 44V)
Crossover Frequency 1.2 kHz
Required Accessory 65 Hz Electronic high pass filter
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 3 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D 291 mm x 171 mm (11.46" x 6.75")
Weight TBD
Finish Back Can: Black, Matte finish Steel
Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
Grille Powder-coated perforated steel backed with color-matched woven fabric with safety line. White or Black finish.
Cutout Diameter 260 mm (10.25")
Accessories (included) C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Accessories (optional) New Construction Brackets (SPA-NC400)
Trim Rings (SPA-TR400)
High Humidity Grilles (SPA-GHH400)
48" Tile Rails (SPA-RAIL48)
Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)
