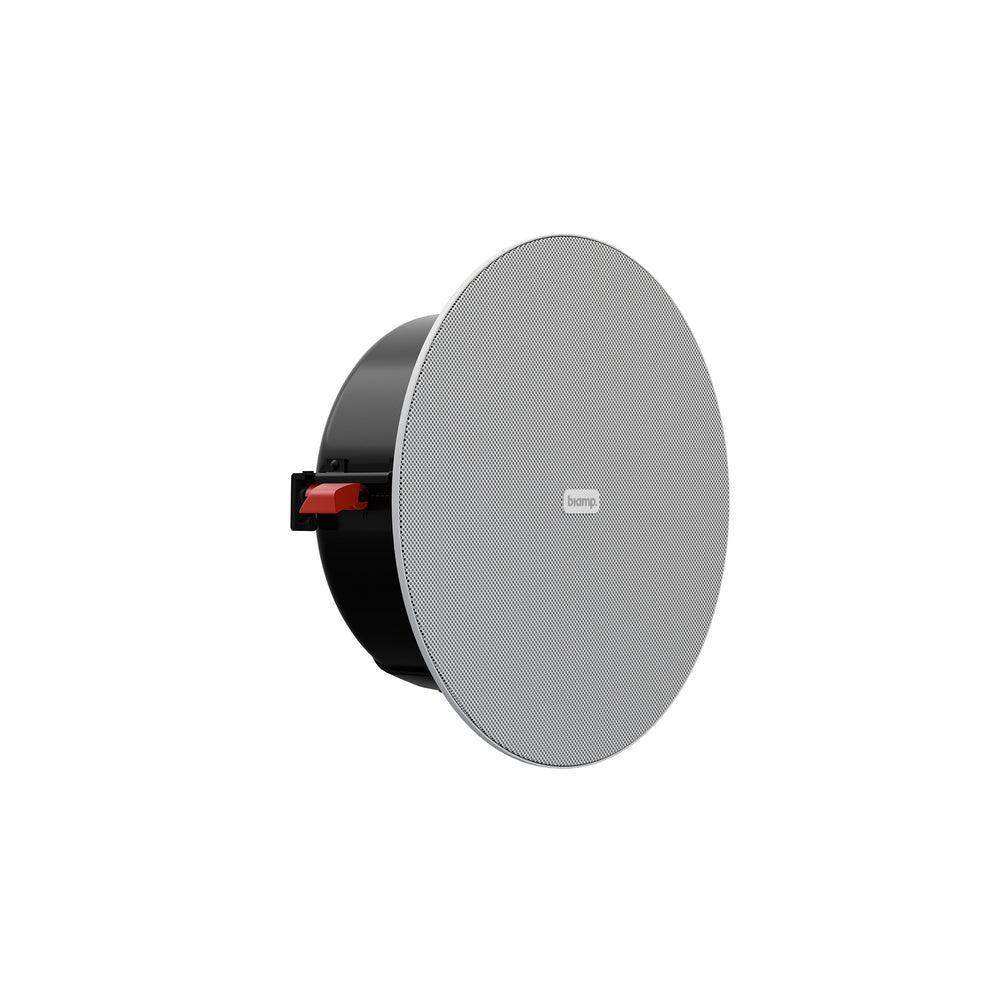

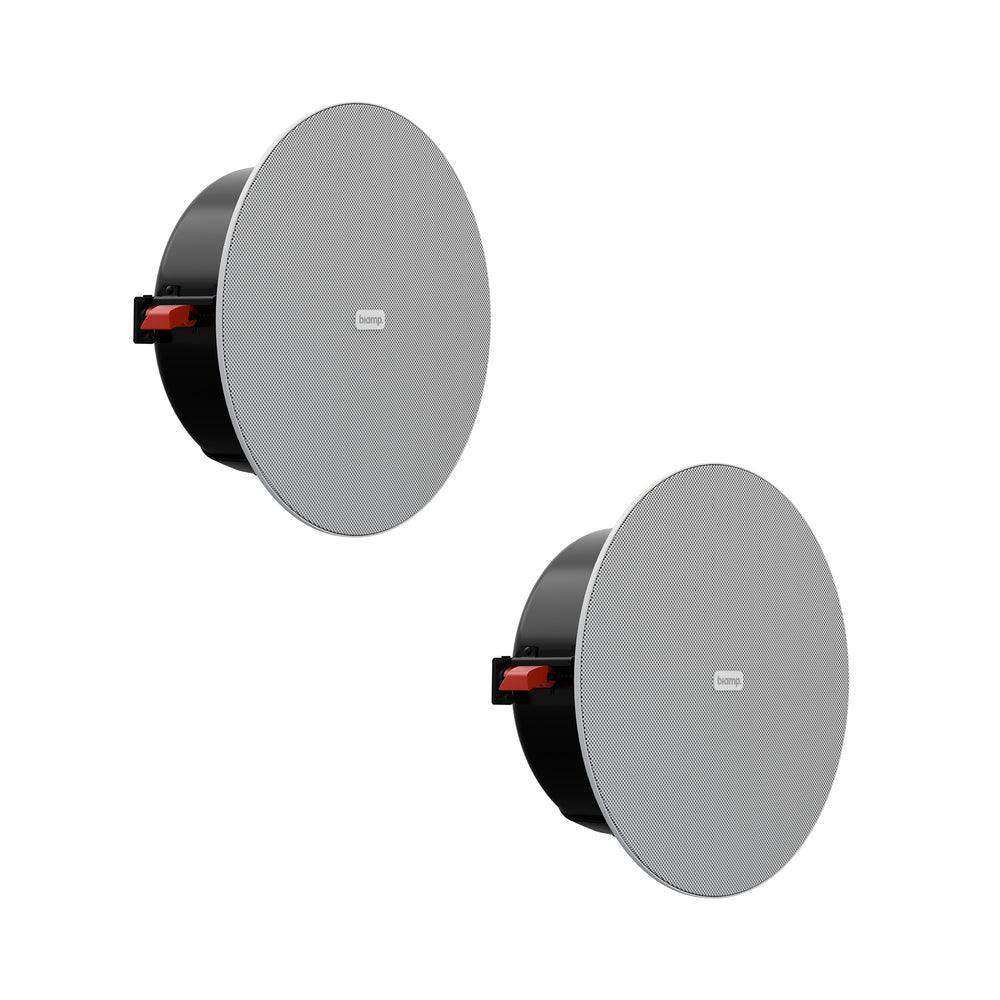

Biamp Desono DX-IC4LP-W 4.5” Low-Profile, High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0103.900
Biamp Desono DX-IC4LP-W 4.5” Low-Profile, High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0103.900
Roll over image to zoom in Click on image to zoom
Biamp Desono DX-IC4LP-W 4.5” Low-Profile, High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0103.900
Biamp Desono DX-IC4LP-W 4.5” Low-Profile, High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0103.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono DX-IC4LP-W 4.5” Low-Profile, High Efficiency Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0103.900

Biamp SKU: 910.0103.900
No reviews
Price:
$440.00

Description

Sold as a pair, Only 3.4 inches (86 mm) in depth, the DX-IC4LP solves space problems that competing products cannot. Suitable for paging, background music, or to augment larger systems, the DX-IC4LP is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX family of loudspeakers apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4LP exhibits reduced distortion and industry-leading sensitivity permitting 3dB to 6dB greater output level, while requiring half the amplification power of competing products.

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Shallow depth to fit into confined ceiling spaces
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 90 Hz to 18.5 kHz
Nominal Beamwidth (H x V) 130°, conical
Transducers LF 1 x 4.5" (114 mm)
HF 1 x 0.75" (19 mm) exit compression driver
Sensitivity 92 dB (2.83 V)
92 dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling 22 V (60W @ 8 Ω)
Nominal Maximum SPL Peak 116 dB
Continuous 110 dB
Autoformer 70V: 30 W, 15 W, 7.5 W, 3.75 W
100V: 30 W, 15 W, 7.5 W
Recommended Amplifiers 60W - 120W @ 8 Ω, (22V - 31V)
Crossover Frequency 2 kHz
Required Accessory 90 Hz Electronic high pass filter
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 2 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D 258 mm x 97 mm (10.16 x 3.81")
Weight TBD
Finish Back Can: Black, Matte finish Steel
Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
Grille Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish.
Cutout Diameter 222 mm (8.75")
Accessories (included) C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Accessories (optional) New Construction Brackets (SPA-NC300)
Trim Rings (SPA-TR300)
Black Grilles (SPA-GRB200)
High Humidity Grilles (SPA-GHH200)
48" Tile Rails (SPA-RAIL48)
Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
