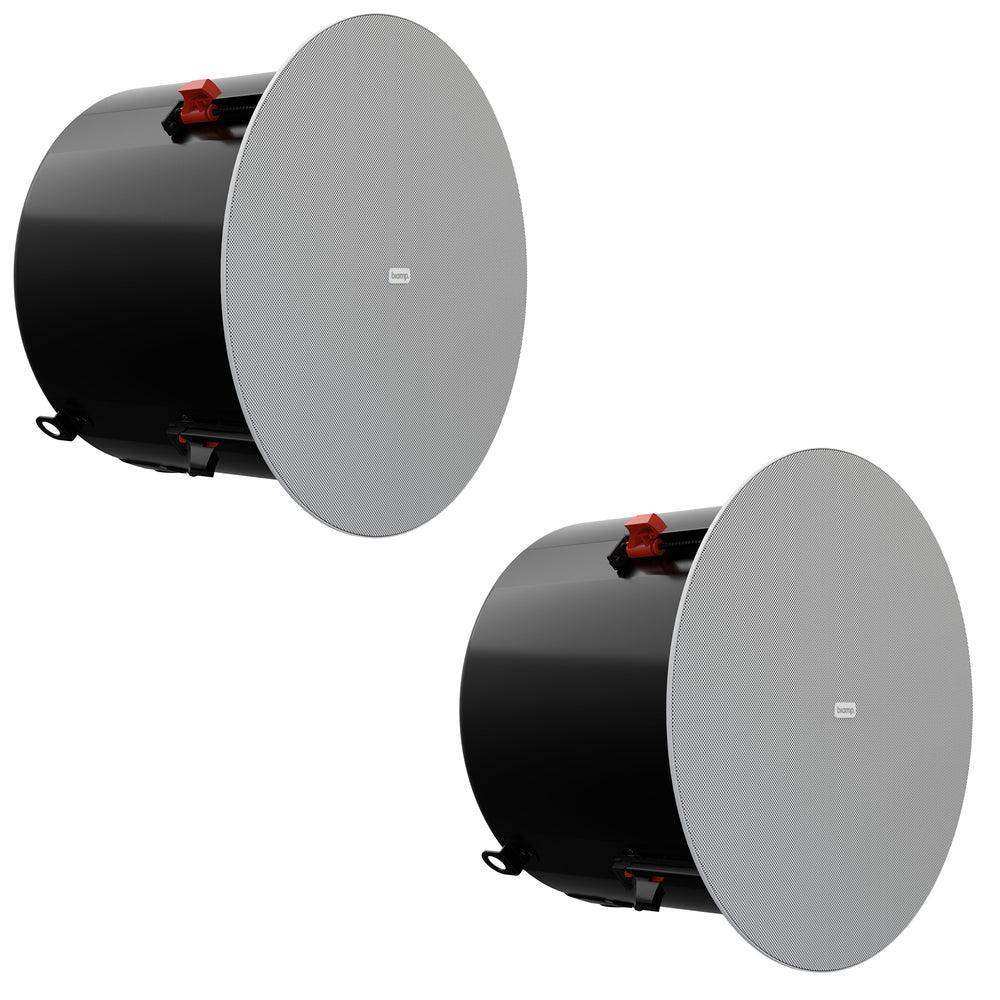

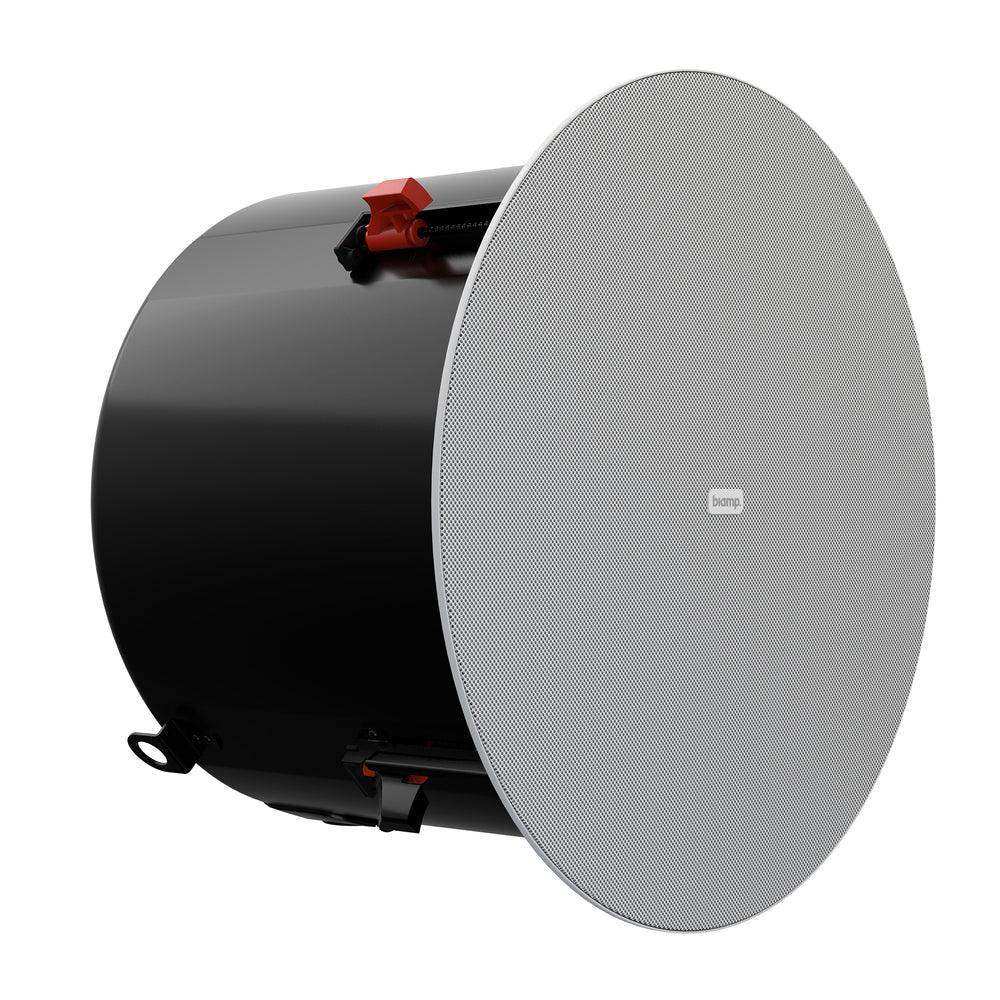

Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900
Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900
Roll over image to zoom in Click on image to zoom
Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900
Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono DX-IC10SUB-W 10” High Output In-Ceiling Subwoofer w/ Internal Crossover. 8 Ohm or 70V/100V operation (White / Pair) - 910.0101.900

Biamp SKU: 910.0101.900
No reviews
Price:
$1,040.00

Description

Sold as a pair, The Desono DX-IC10SUB ceiling mount subwoofer provides a powerful, high-impact bass response intended to augment any combination of Desono DX full-range models. By including a complement of DX-IC10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The DX-IC10SUB’s clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub, and restaurant patrons.

Dependent on program content and the size of the full-range DX models, the ratio of DX-IC10SUBs to full-range models may vary from as few as 1:6 to as many as 1:1. For example, one DX-IC10SUB will provide a strong supporting bass response for six DX-IC4s, while four DX-IC10SUBs will better complement six of the more powerful DX-IC8s or DX-IC10s.

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 42 Hz to 200 Hz
Nominal Beamwidth (H x V) omnidirectional
Transducers LF 1 x 10" (254 mm)
Sensitivity 93 dB (2.83 V)
93 dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling 40 V (200W @ 8 Ω)
Nominal Maximum SPL Peak 122 dB
Continuous 116 dB
Autoformer 70V: 200 W, 100 W, 50 W, 25 W
100V: 200 W, 100 W, 50 W
Recommended Amplifiers 200 W - 400W @ 8 Ω, (40 V - 57  V)
Required Accessory 41 Hz Electronic high pass filter
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 4 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D 394 mm x 263 mm (15.51" x 10.37")
Weight TBD
Finish Back Can: Black, Matte finish Steel
Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
Grille Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish.
Cutout Diameter 360 mm (14.17")
Accessories (included) C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Model DX-IC10SUB-W - loudspeaker with White grille
Accessories (optional) New Construction Brackets (SPA-NC600)
Black Grilles (SPA-GRB600)
High Humidity Grilles (SPA-GHH600)
48" Tile Rails (SPA-RAIL48)
Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)
