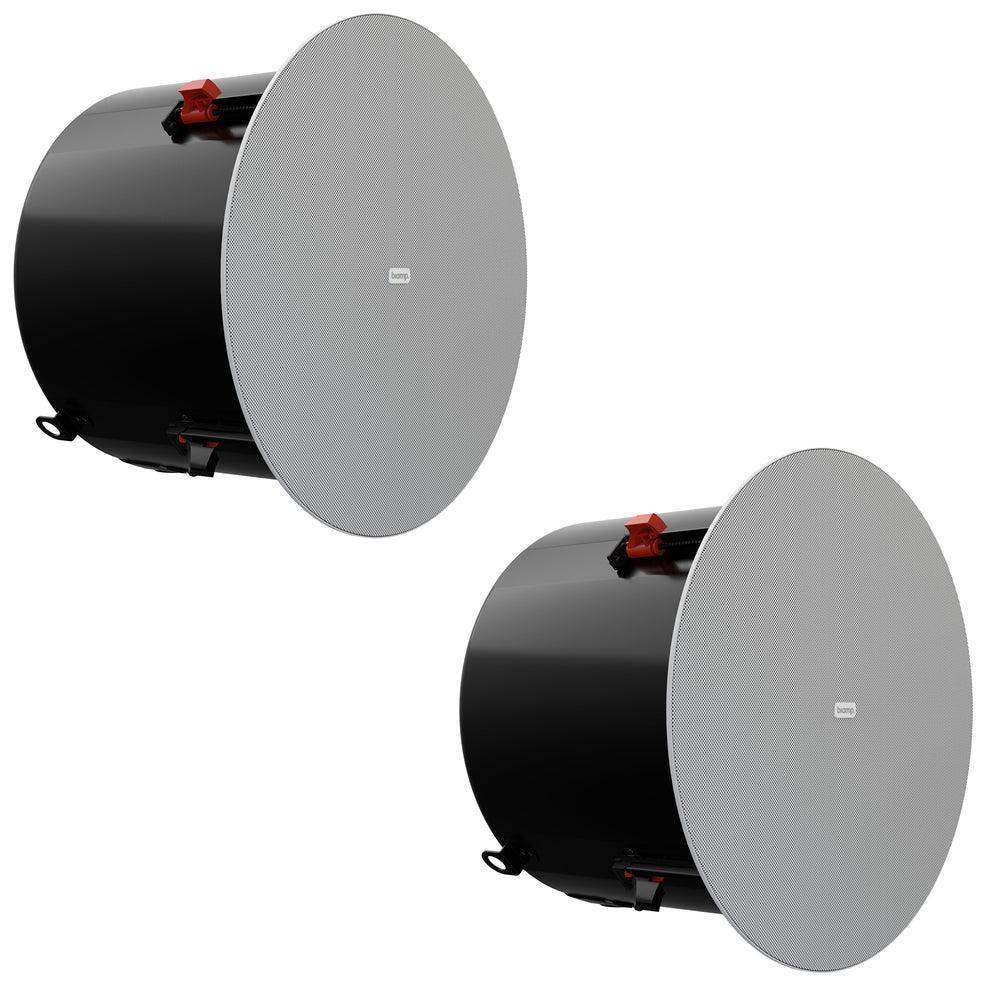

Biamp Desono DX-IC10-W 10” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0100.900
Biamp Desono DX-IC10-W 10” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0100.900
Roll over image to zoom in Click on image to zoom
Biamp Desono DX-IC10-W 10” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0100.900
Biamp Desono DX-IC10-W 10” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0100.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono DX-IC10-W 10” High Output Coaxial In-Ceiling Loudspeaker w/ HF compression driver. 8 Ohm or 70V/100V operation (White / Pair) - 910.0100.900

Biamp SKU: 910.0100.900
No reviews
Price:
$1,120.00

Description

Sold as a pair, The flagship model Desono DX-IC10 exceeds the performance of competing high-ceiling models. The DX-IC10 provides high-level foreground music, loud-and-clear paging (even in noisy environments), and readily supports large systems in sports facilities, clubs, or concert venues for delay and zone fill. Compact, affordable replacement for typical 12-inch competitor ceiling speakers.

DX-IC10s can readily be combined with smaller members of the Desono DX family due to Biamp's uniform voicing technology, providing additional power and LF response in areas that require it. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC10 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 58 Hz to 22 kHz
Nominal Beamwidth (H x V) 90°, conical
Transducers LF 1 x 10" (254 mm)
HF 1 x 1.25" (32 mm) exit compression driver
Sensitivity 98 dB (2.83 V)
98 dB (1W at rated impedance 8 Ω)
Nominal Continuous Power Handling 40 V (200W @ 8 Ω)
Nominal Maximum SPL Peak 127 dB
Continuous 121 dB
Autoformer 70V: 200 W, 100 W, 50 W, 25 W
100V: 200 W, 100 W, 50 W
Recommended Amplifiers 200 W - 400W @ 8 Ω, (40 V - 57  V)
Crossover Frequency 1.0 kHz
Required Accessory 58 Hz Electronic high pass filter
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 4 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1
Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Dimensions W x D 394 mm x 263 mm (15.51" x 10.37")
Weight TBD
Finish Back Can: Black, Matte finish Steel
Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
Grille Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish.
Cutout Diameter 360 mm (14.17")
Accessories (included) C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Accessories (optional) New Construction Brackets (SPA-NC600)
Black Grilles (SPA-GRB600)
High Humidity Grilles (SPA-GHH600)
48" Tile Rails (SPA-RAIL48)
Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)
