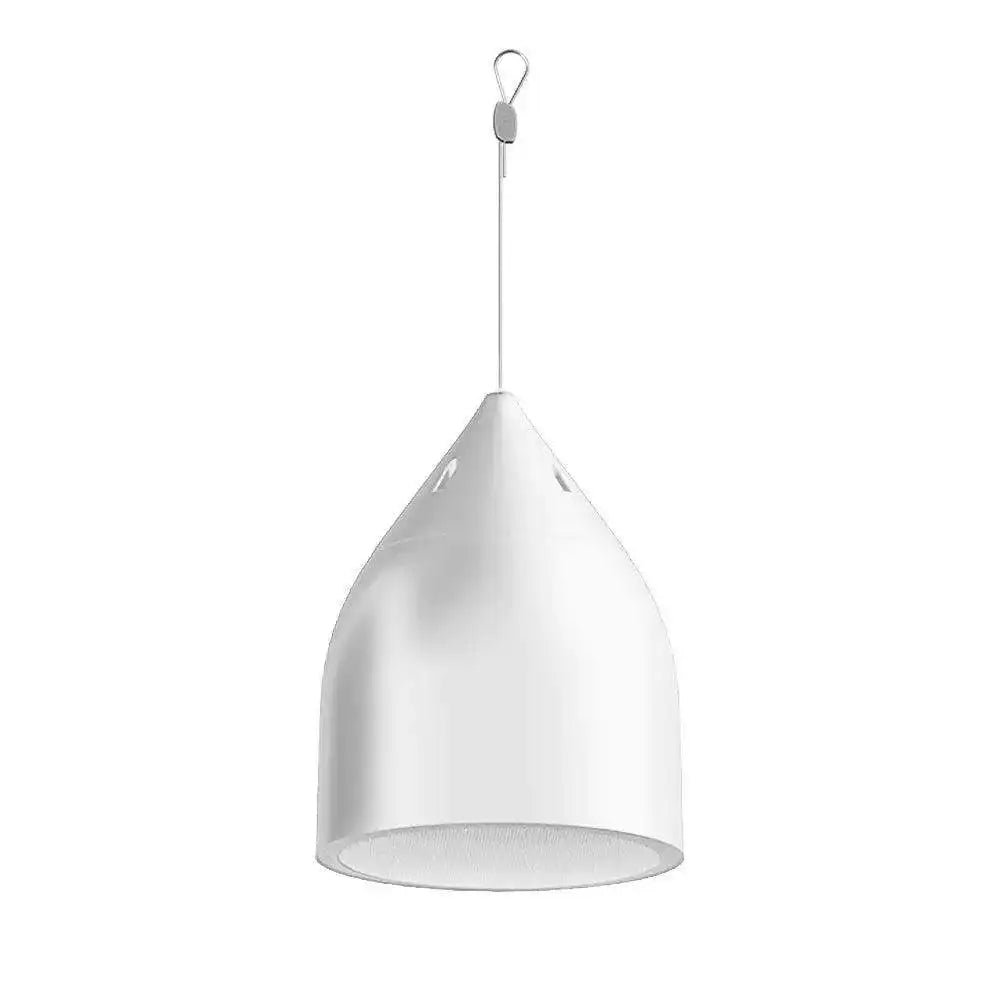

The DP6 is a high performance 6.5-inch pendant loudspeaker designed for open architecture spaces or any location where a stylish pendant form factor is desired. Featuring high power handling, high sensitivity and realistic sound reproduction, D SERIES pendant loudspeakers can be used in a wide variety of speech and music applications. They are equipped with a built-in autoformer, supporting low impedance or 70V/100V operation. Uniform voicing means that the DP6 can be combined with other ceiling and surface mount models in the C or D SERIES family without compromising consistency from zone to zone. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry-leading sensitivity, thereby permitting 3 dB to 6 dB greater output level while requiring half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
- Stylish, contoured contemporary pendant design
- Same components and voicing as the Distributed Design ceiling and surface mount loudspeaker family
- Consistent, wide dispersion up to 16 kHz
- True coaxial loudspeakers with HF compression drivers
- Tru-Phase™ high-frequency waveguide
- Patented Carbon Ring Cone Technology™
- High efficiency, high output, high intelligibility, low distortion
- Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
- Easy-access power tap switch for selectable 8 ohm or 70V/100V operation
- Integrated rear cover hiding all wires and hanging hardware
- Weather-resistant constructed with treated drivers and twolayer powder coated grilles
- ETL listed to comply with UL1480
- Available in standard black or white finishes
- Five year warranty
|Loudspeaker Type||Two-way, full-range, coaxial pendant mount loudspeaker, 8 ohm or 70V/100V operation|
|Operating Range||65 Hz - 22 kHz|
|Frequency Response||80 Hz - 20 kHz (±5 dB)|
|Max Input Ratings (8 ohm)||100W continuous, 250W program
28 volts RMS, 63 volts momentary peak
|Transformer Taps||70V: 60W, 30W, 15W, 7.5W and low impedance
100V: 60W, 30W, 15W
|Sensitivity (1W/1m)||94 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands)
92 dB SPL (250 Hz to 4 kHz speech range)
|Maximum Output||114 dB SPL / 120 dB SPL (peak 8 ohm)|
|Nominal Impedance||8 ohms|
|Minimum Impedance||6.9 ohms @ 210 Hz|
|Nominal Coverage||115º conical (1 kHz to 6 kHz)
125º conical (500 Hz to 6 kHz)
|Axial Q / DI||4.7 / 6.7, 500 Hz to 6 kHz|
|Crossover Frequency||1.2 kHz|
|Recommended Signal Processing||65 Hz high pass filter|
|Drivers||LF 1 x 6.5-inch
HF 1 x 1-inch exit compression driver
|Driver Protection||Self-resetting solid state circuit breaker|
|Input Connection||Two 2-position Euroblock connectors|
|Controls||Front-face wattage / low impedance selector switch|
|Enclosure||UL 94V-0 rated ABS plastic, matte finish, paintable|
|Finish||Black or white|
|Mounting/Rigging Provisions||Two PHK-15 pendant hang kits (one for main suspension and one as a safety cable), each including 15ft (4.5m) long 2mm (0.77") high tensile galvanized steel wire rope suspension cables with integrated spring clips for attaching the cable to the loudspeaker bracket and Gripple™ brand adjustable height cable fasteners.|
|Grille||Powder coated steel with safety line, black or white finish, paintable|
|Baffle||Reflex loaded UL 94V-0 rated ABS|
|Safety Features||Included safety cable. Each cable has an SWL of 99 lbs (45 kg).|
|Safety Agency Ratings||ETL listed to comply with UL1480 and CSA60065.
Suspension system and Gripple™ brand cable fastener listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.
|Required Accessories||Electronic high pass filter|
|Supplied Accessories||Two PHK-15 pendant hang kits
Enclosure ABS plastic rear cover
Rear cover ingress weather plug
|Optional Accessories||PHK-30 30ft (9.1m) pendant hang kit
PHK-50 50ft (15.2m) pendant hang kit
PSC replacement Gripple™ speed clamp
PST-14 trimmable 14ft (4.3m) decorative split loom tubing
|Dimensions||Height: 14.732 inches (374.2 mm) high enclosure
Diameter: 11.22 inches (285 mm) face diameter
|Weight||11.8 lbs (5.4 kg)|
