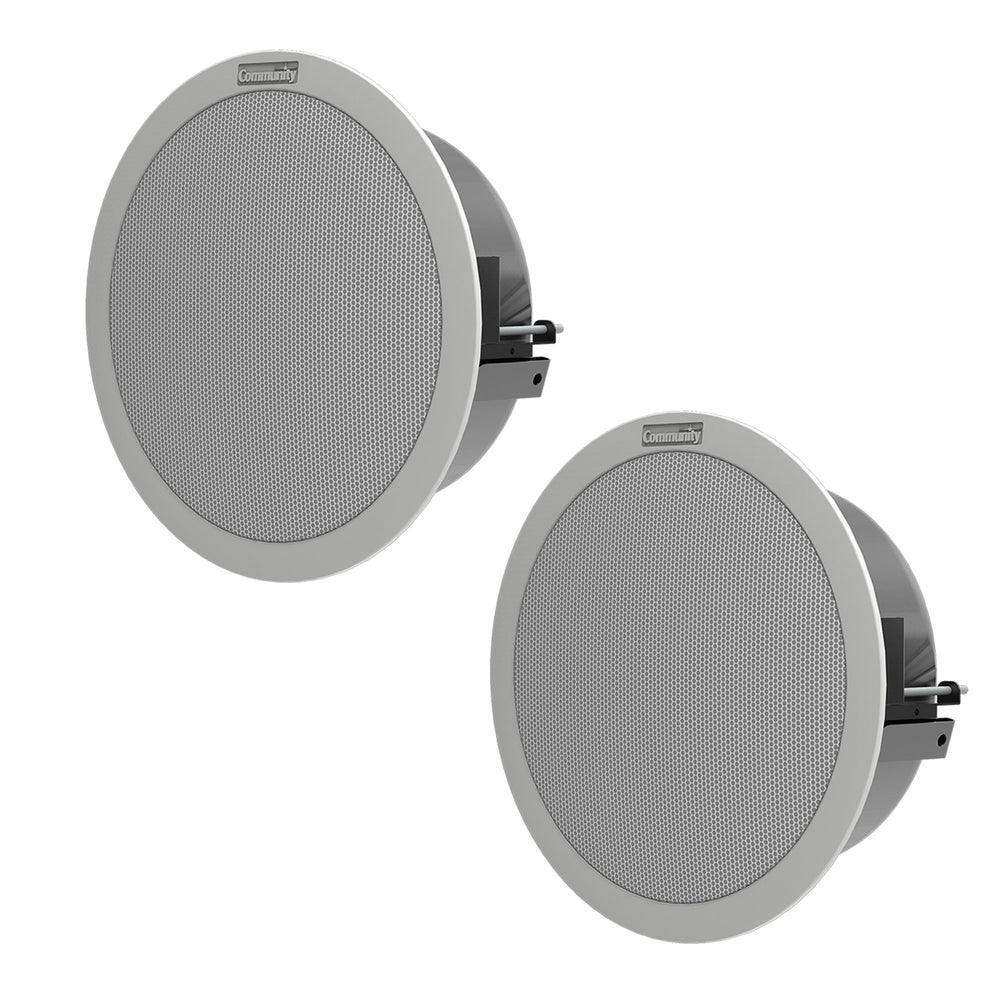

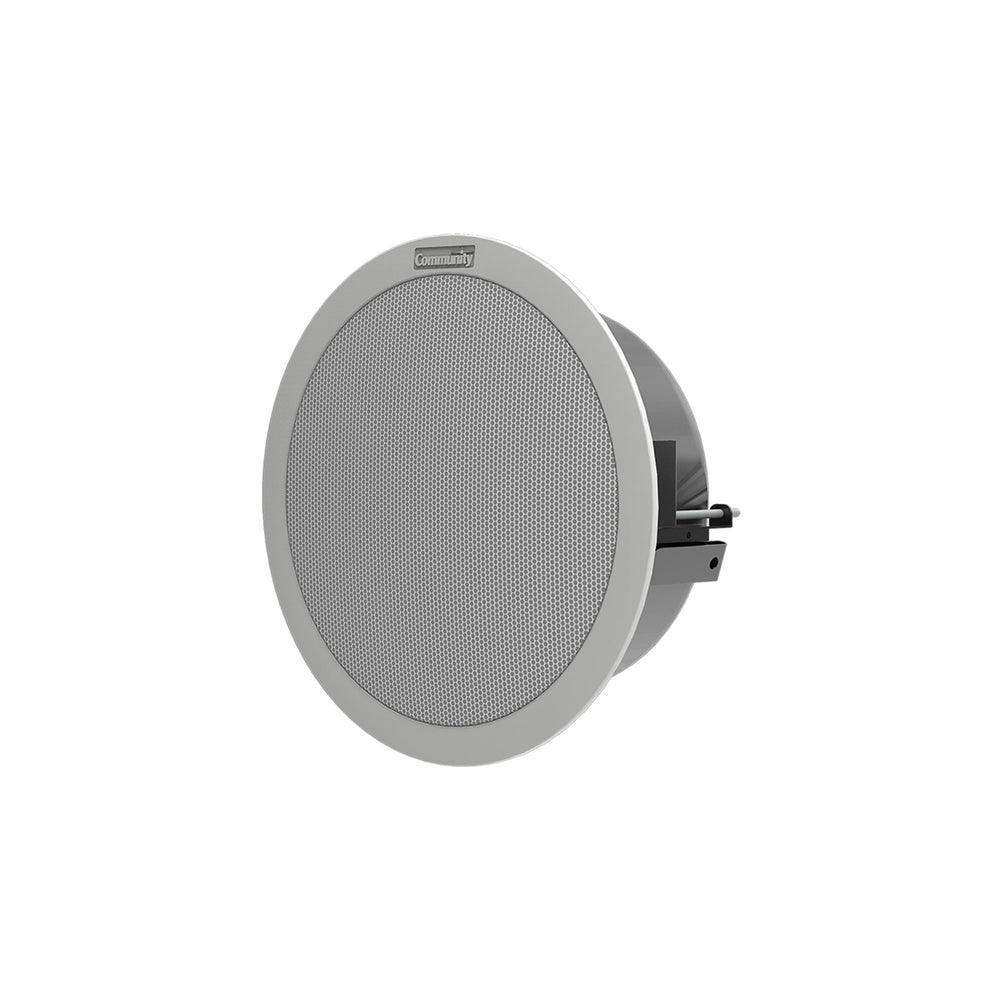

Biamp Desono D4 4.5-Inch Ceiling Loudspeaker (White / Pair)

Biamp SKU: 911.0544.900
No reviews
Price:
$440.00

Description

Sold as a pair, The D4 has a wider dispersion than the larger models. The high performance D4 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion up to 16 kHz, all but eliminating high-frequency narrowing. Further pattern improvement is achieved by precisely mounting the low frequency driver (and its concentric HF driver) centered in the baffle, as contrasted to the offset designs used by others.

The D SERIES offers powerful magnetic structures and efficient coils to ensure high output, which results in more headroom per power amplifier. Each D SERIES ceiling model includes everything needed for standard installations, and has a built-in autoformer allowing it to be used in 8-ohm or 70V/100V applications. The D SERIES ceiling loudspeakers are ETL listed and all models have been tested by ETL to comply with UL1480, UL2043 and CSA60065.

AMPLIFIED LOUDSPEAKER CONTROLLERS
The Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.

  • High intelligibility with exceptional uniform coverage
  • Consistent, wide dispersion up to 16 kHz
  • True coaxial loudspeakers with HF compression drivers
  • Tru-Phase™ high-frequency waveguide
  • Patented Carbon Ring Cone Technology™
  • Spring loaded Drop-Stop™ installation assistant tabs support the back can on the included rails and C-ring to simplify installation
  • Uniquely designed tile bridge support rails and snap-on C-ring support plates prevent sag
  • Twist-Assist™ loudspeaker face retainer tabs for fast and easy installation
  • ¾-inch and 1-inch knock-outs on the sides of the back can
  • External loop-through Euroblock connectors
  • Rear cover with integrated cable clamp (strain relief) and optional conduit knockout
  • Selectable 8 ohm or 70V/100V operation
  • Five year warranty

Product Specs

Loudspeaker Type Two-way, full-range, coaxial ceiling loudspeaker, 8 ohm or 70V/100V operation
Operating Range 62 Hz - 18.5 kHz
Frequency Response 85 Hz - 16 kHz (±5 dB)
Max Input Ratings (8 ohm) 60W continuous, 150W program
22 volts RMS, 49 volts momentary peak
Transformer Taps 70V: 30W, 15W, 7.5W, 3.75W and low impedance
100V: 30W, 15W, 7.5W
Sensitivity (1W/1m) 91 dB SPL (120 Hz to 12.5 kHz 1/3 octave bands)
92 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output 109 dB SPL / 115 dB SPL (peak 8 ohm)
Nominal Impedance 8 ohms
Minimum Impedance 7.8 ohms @ 260 Hz
Nominal Coverage 130º conical (1 kHz to 6 kHz)
140º conical (500 Hz to 6 kHz)
Axial Q / DI 4 / 6, 500 Hz to 6 kHz
Crossover Frequency 2 kHz
Recommended Signal Processing 62 Hz high pass filter
Drivers LF 1 x 4.5-inch
HF 1 x ¾-inch exit compression driver
Driver Protection Self-resetting solid state circuit breaker
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Enclosure Corrosion-resistant zinc plated steel
Mounting/Rigging Provisions 3 steel mounting clamps with 3-inch grip range
Grille Powder coated steel with safety line, white finish, paintable
Baffle Reflex loaded UL 94V-0 rated ABS
Safety Features 3 x safety hang points
Safety Agency Ratings ETL listed to comply with UL1480, UL2043 and CSA60065.
Suitable for use in air handling spaces per NFPA 70 and NFPA 90.
Conforms with City of Chicago Codes
Required Accessories Electronic high pass filter
Supplied Accessories C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Optional Accessories D45-CATR Can Adapter Ring / Trim Ring
D45-NCB New Construction Bracket
D-RAIL48-PR Pair of 48” Channel Rails
Dimensions Width: 9.768 inches (248.1 mm) bezel diameter
Depth: 6.788 inches (172.4 mm) can depth
Cutout Diameter 8.75 inches (222 mm)
Weight 7.6 lbs (3.4 kg)
