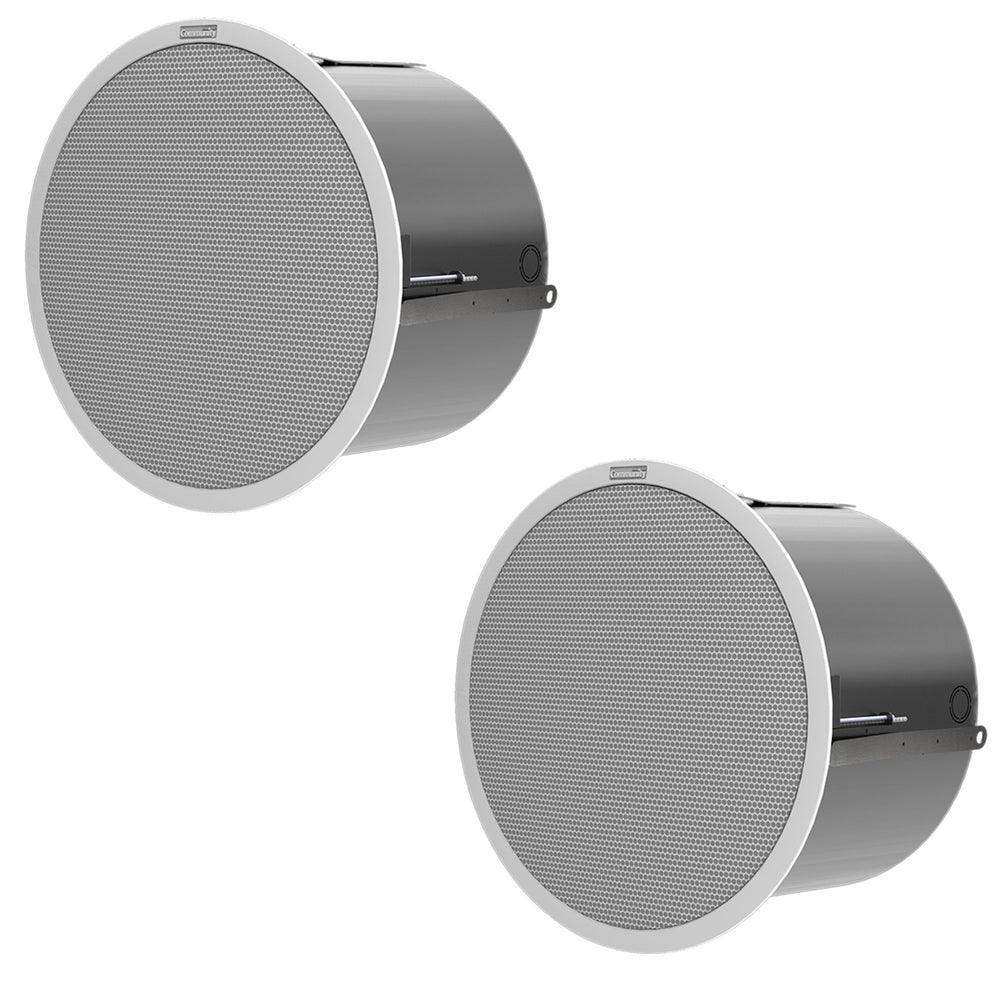

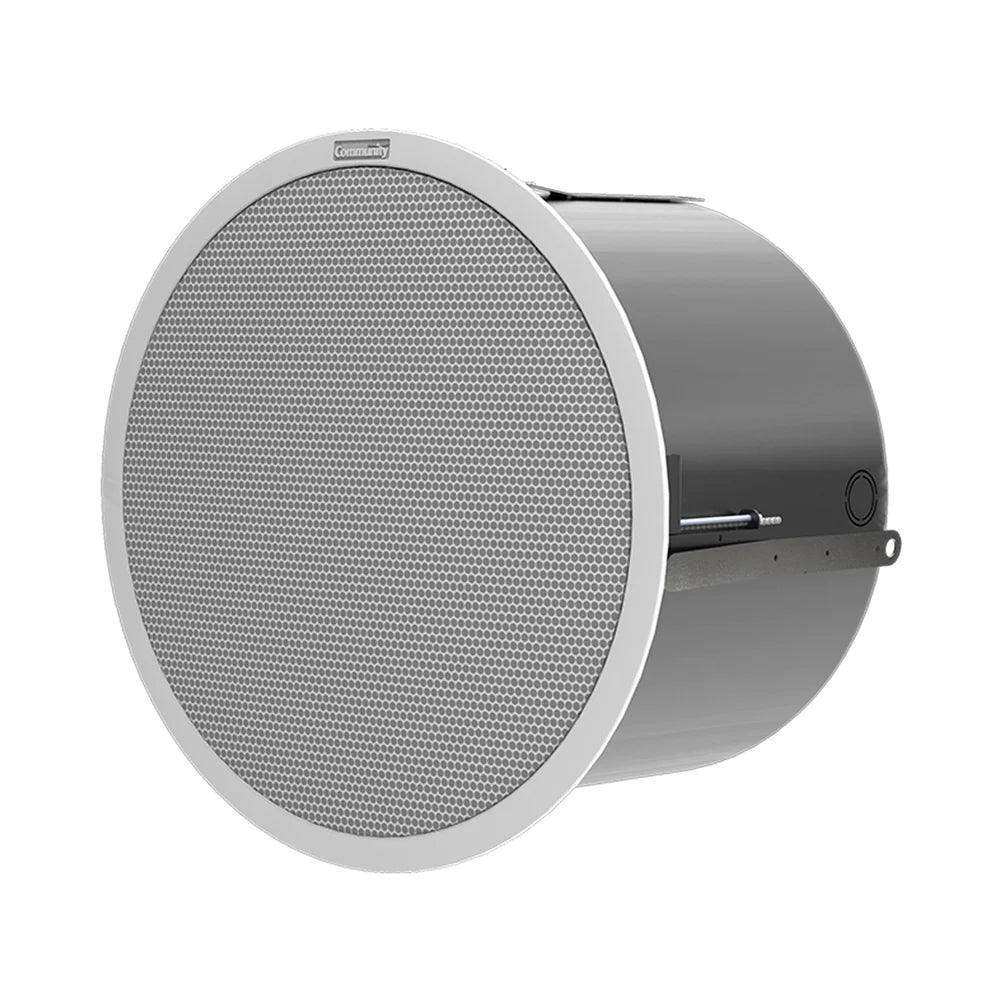

Biamp Desono D10 10-Inch Ceiling Loudspeaker (White / Pair)
Biamp Desono D10 10-Inch Ceiling Loudspeaker (White / Pair)
Roll over image to zoom in Click on image to zoom
Biamp Desono D10 10-Inch Ceiling Loudspeaker (White / Pair)
Biamp Desono D10 10-Inch Ceiling Loudspeaker (White / Pair)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono D10 10-Inch Ceiling Loudspeaker (White / Pair)

Biamp SKU: 911.0542.900
No reviews
Price:
$1,120.00

Description

Sold as a pair, The D10 has a more focused dispersion, higher sensitivity, output and greater LF extension than the smaller models. The high performance D10 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion up to 16 kHz, all but eliminating high-frequency narrowing. Further pattern improvement is achieved by precisely mounting the low frequency driver (and its concentric HF driver) centered in the baffle, as contrasted to the offset designs used by others.

The D SERIES offers powerful magnetic structures and efficient coils to ensure high output, which results in more headroom per power amplifier. Each D SERIES ceiling model includes everything needed for standard installations, and has a built-in autoformer allowing it to be used in 8-ohm or 70V/100V applications. The D SERIES ceiling loudspeakers are ETL listed and all models have been tested by ETL to comply with UL1480, UL2043 and CSA60065.

AMPLIFIED LOUDSPEAKER CONTROLLERS
The Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.

  • High intelligibility with exceptional uniform coverage
  • Consistent, wide dispersion up to 16 kHz
  • True coaxial loudspeakers with HF compression drivers
  • Tru-Phase™ high-frequency waveguide
  • Patented Carbon Ring Cone Technology™
  • Spring loaded Drop-Stop™ installation assistant tabs support the back can on the included rails and C-ring to simplify installation
  • Uniquely designed tile bridge support rails and snap-on C-ring support plates prevent sag
  • Twist-Assist™ loudspeaker face retainer tabs for fast and easy installation
  • ¾-inch and 1-inch knock-outs on the sides of the back can
  • External loop-through Euroblock connectors
  • Rear cover with integrated cable clamp (strain relief) and optional conduit knockout
  • Selectable 8 ohm or 70V/100V operation
  • Five year warranty

Product Specs

Loudspeaker Type Two-way, full-range, coaxial ceiling loudspeaker, 8 ohm or 70V/100V operation
Operating Range 58 Hz - 22 kHz
Frequency Response 75 Hz - 20 kHz (±5 dB)
Max Input Ratings (8 ohm) 200W continuous, 500W program
40 volts RMS, 89 volts momentary peak
Transformer Taps 70V: 200W, 100W, 50W, 25W and low impedance
100V: 200W, 100W, 50W
Sensitivity (1W/1m) 98 dB SPL (100 Hz to 12.5 kHz 1/3 octave bands)
97 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output 121 dB SPL / 127 dB SPL (peak 8 ohm)
Nominal Impedance 8 ohms
Minimum Impedance 6.6 ohms @ 190 Hz
Nominal Coverage 88º conical (1 kHz to 6 kHz)
100º conical (500 Hz to 6 kHz)
Axial Q / DI 6.5 / 8.1, 500 Hz to 6 kHz
Crossover Frequency 1 kHz
Recommended Signal Processing 58 Hz high pass filter
Drivers LF 1 x 10-inch
HF 1 x 1.25-inch exit compression driver
Driver Protection Self-resetting solid state circuit breaker
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Enclosure Corrosion-resistant zinc plated steel
Mounting/Rigging Provisions 4 steel mounting clamps with 3-inch grip range
Grille Powder coated steel with safety line, white finish, paintable
Baffle Reflex loaded UL 94V-0 rated ABS
Safety Features 4 x safety hang points
Safety Agency Ratings ETL listed to comply with UL1480, UL2043 and CSA60065.
Suitable for use in air handling spaces per NFPA 70 and NFPA 90.
Conforms with City of Chicago Codes.
Required Accessories Electronic high pass filter
Supplied Accessories C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Optional Accessories D10-NCB New Construction Bracket
D-RAIL48-PR Pair of 48” Channel Rails
Dimensions Width: 15.197 inches (386 mm) bezel diameter
Depth: 9.938 inches (252.4 mm) can depth
Cutout Diameter 14.125 inches (359 mm)
Weight 23.1 lbs (10.5 kg)
