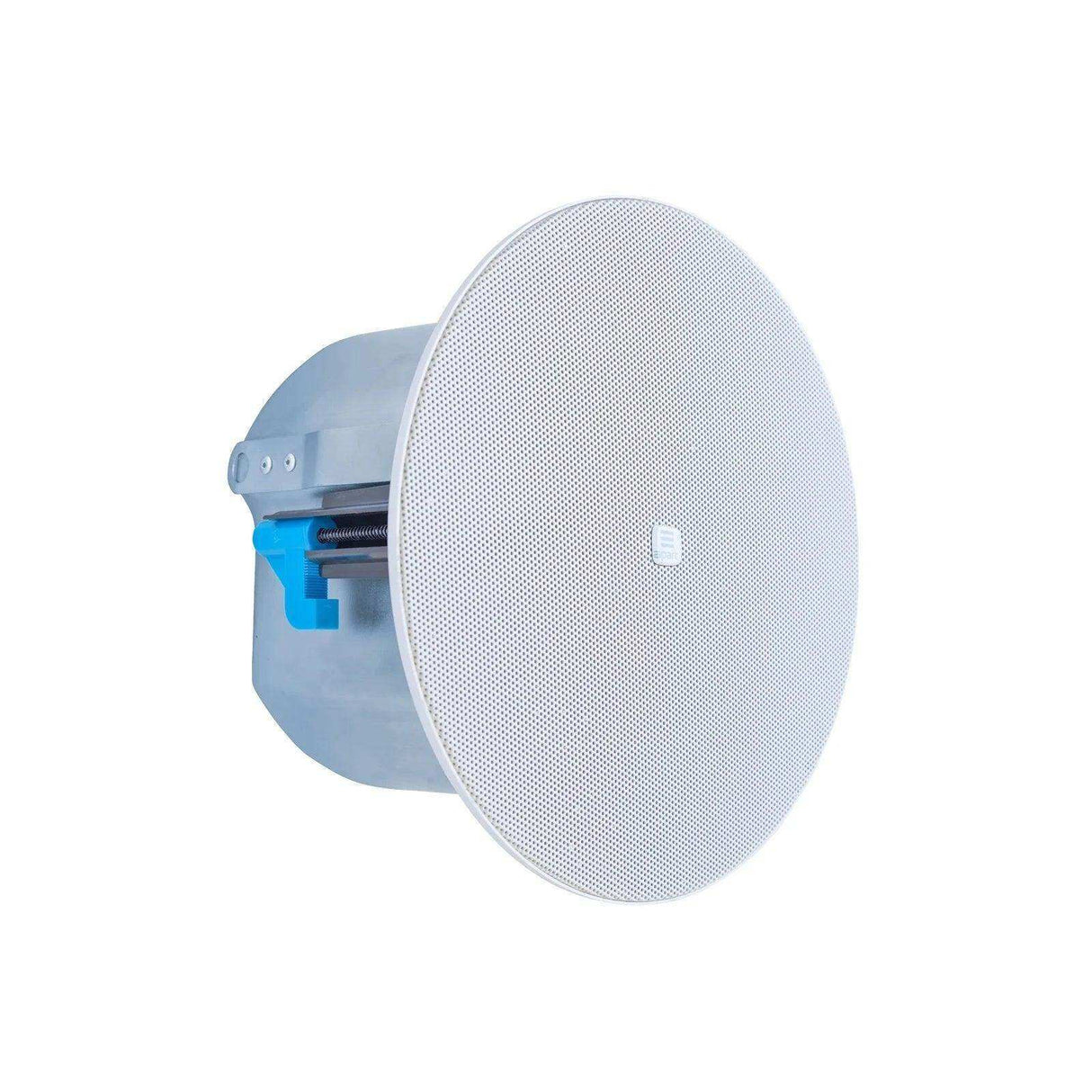

Biamp Desono CM60DTD 6.5” two-way thin edge design ceiling loudspeaker 100-70 volt / 60 watts, 16 ohms / 120 watts, white, front frame integrated neodymium magnets and back can (Pair)
Biamp Desono CM60DTD 6.5” two-way thin edge design ceiling loudspeaker 100-70 volt / 60 watts, 16 ohms / 120 watts, white, front frame integrated neodymium magnets and back can (Pair) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Desono CM60DTD 6.5” two-way thin edge design ceiling loudspea...
Product Overview
The Biamp Desono CM60DTD is a 6.5-inch two-way thin-edge ceiling loudspeaker, sold as a pair. It delivers dynamic music and speech reproduction at higher output levels with defined bass response thanks to a sealed back can and ported bass design. It is capable of 16 ohm or 70 V/100 V operation, selectable on the front panel. A thin-edge grille with integrated neodymium magnets provides elegant integration.
Product Description
The CM60DTD can be combined with other models in the CM range to create the right combination for a space. A solid cable management system, loudspeaker clamps, and integrated seismic safety tabs make it an installer-friendly choice. The thin-edge grille mounts via strong integrated neodymium magnets for a smooth, elegant appearance, and the enclosure is constructed of ABS plastic with a steel grille finished in white (RAL9010). It provides 180-degree horizontal and vertical dispersion at 1 kHz with a frequency response of 65 Hz to 20 kHz.
Key Features
- Sold as a pair — Each order includes two CM60DTD ceiling loudspeakers.
- Thin-edge design — A thin-edge grille with integrated neodymium magnets provides elegant, smooth ceiling integration.
- Sealed back can with ported bass — A sealed back can and ported bass design deliver defined bass response at higher output levels.
- Selectable operation — Front-panel selection sets 16 ohm or 70 V/100 V operation.
- Installer-friendly — A cable management system, loudspeaker clamps, and integrated seismic safety tabs simplify installation.
Typical Applications
The CM60DTD suits commercial meeting spaces, multi-purpose rooms, and houses of worship for distributed background music and speech with elegant ceiling integration.
Technical Specifications
| Loudspeaker System | 2-way thin-edge ceiling loudspeaker |
| Woofer / Tweeter | 6.5-inch coated paper woofer; 1-inch tweeter |
| Operation | 16 ohm or 70 V/100 V, front-panel selectable |
| Low Impedance Power | 60 W RMS, 120 W dynamic |
| 70 V Transformer Taps | 60, 30, 15, 7.5, 3.75 W |
| 100 V Transformer Taps | 60, 30, 15, 7.5 W |
| Sensitivity (1W/1m) | 91 dB |
| Max SPL @ 1m | 110 dB |
| Frequency Response | 65 Hz - 20 kHz |
| Dispersion (1 kHz) | 180° horizontal x 180° vertical |
| Outside Diameter | 258 mm |
| Cutout | 232 mm |
| Depth | 157 mm |
| Grip Range | 3 - 65 mm |
| Weight | 4.01 kg |
| Enclosure / Grille | ABS plastic; steel grille, white (RAL9010) |
Frequently Asked Questions
Is the CM60DTD sold as a pair?
Yes. It is sold as a pair.
What operation modes does it support?
Front-panel selection sets 16 ohm or 70 V/100 V operation.
Can it be combined with other CM models?
Yes. The CM60DTD can be combined with other models in the CM range for a matched system.
