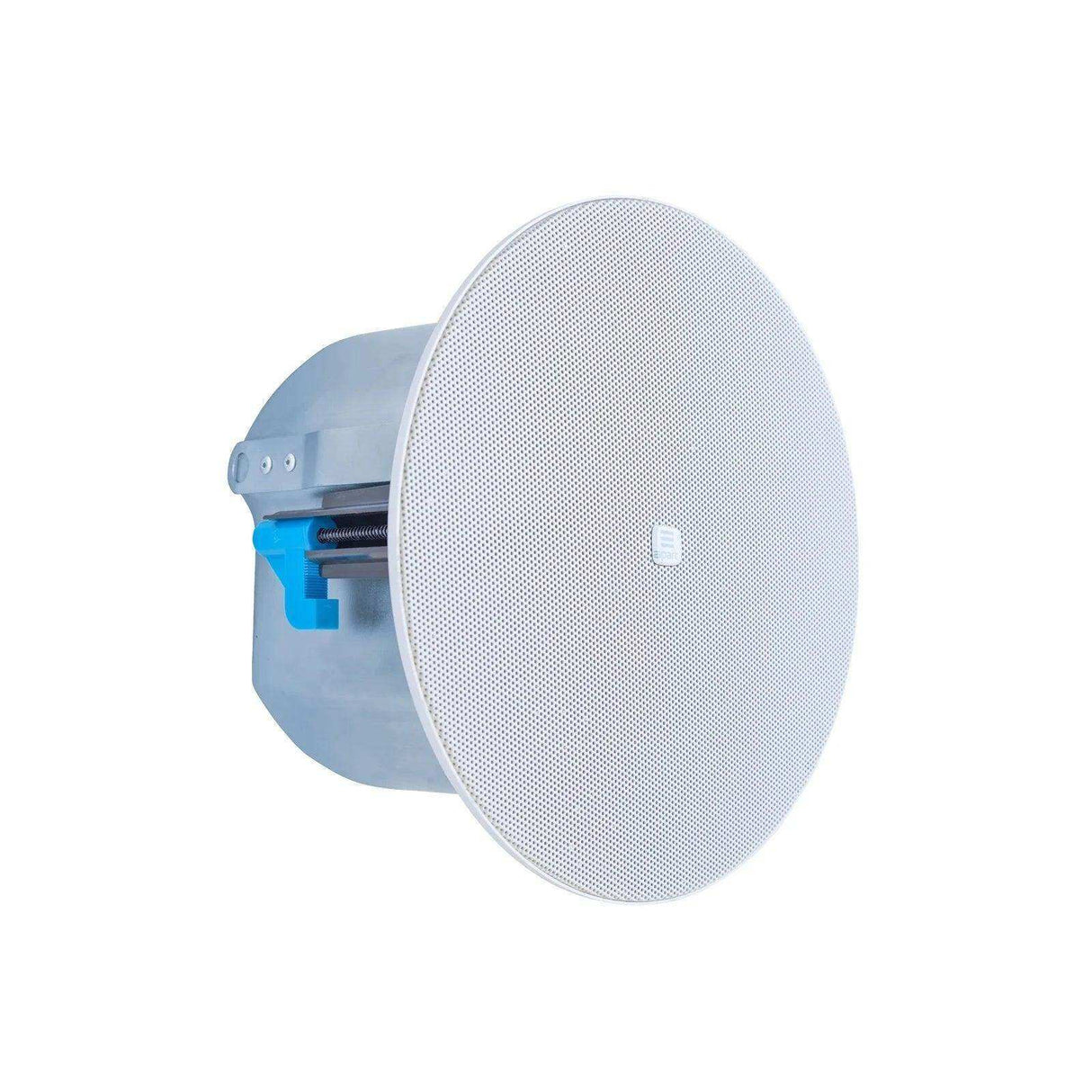

Biamp Desono CM30DTD 4.25” two-way thin edge design ceiling loudspeaker 100-70 volt / 30 watts, 16 ohms / 60 watts, white, front frame integrated neodymium magnets and back can (Pair)
Biamp Desono CM30DTD 4.25” two-way thin edge design ceiling loudspeaker 100-70 volt / 30 watts, 16 ohms / 60 watts, white, front frame integrated neodymium magnets and back can (Pair) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Desono CM30DTD 4.25” two-way thin edge design ceiling loudspe...
Product Overview
The Biamp Desono CM30DTD is a 4.25-inch two-way thin-edge ceiling loudspeaker, sold as a pair. It delivers dynamic music reproduction with defined bass response thanks to a sealed back can and ported bass design. It is capable of 16 ohm or 70 V/100 V operation, selectable on the front panel. A thin-edge grille with integrated neodymium magnets provides elegant integration.
Product Description
The CM30DTD can be combined with other models in the CM range to create the right combination for a space. A solid cable management system, loudspeaker clamps, and integrated seismic safety tabs make it an installer-friendly choice. The thin-edge grille mounts via strong integrated neodymium magnets and is easily paintable in any RAL color, while included tile bridge support rails prevent ceiling tile sag. Two fast-screwing loudspeaker clamps and integrated seismic safety tabs speed installation. The minimal built-in depth preserves acoustical performance, and the enclosure is ABS plastic with a steel grille in white (RAL9010).
Key Features
- Sold as a pair — Each order includes two CM30DTD ceiling loudspeakers.
- Thin-edge design — A thin-edge grille with integrated neodymium magnets enables elegant, paintable ceiling integration.
- Minimal built-in depth — A shallow 131 mm depth preserves acoustical performance while fitting tight ceiling spaces.
- Sealed back can with ported bass — A sealed back can and ported bass design deliver defined bass response.
- Selectable operation — Front-panel selection sets 16 ohm or 70 V/100 V operation.
- Installer-friendly — Two fast-screwing clamps, integrated seismic safety tabs, and cable management speed installation.
Typical Applications
The CM30DTD suits commercial meeting spaces, multi-purpose rooms, and houses of worship for distributed background music and speech where a compact, elegant ceiling loudspeaker is needed.
Technical Specifications
| Loudspeaker System | 2-way thin-edge ceiling loudspeaker |
| Woofer / Tweeter | 4.25-inch polypropylene woofer; 1-inch tweeter |
| Operation | 16 ohm or 70 V/100 V, front-panel selectable |
| Low Impedance Power | 50 W RMS, 80 W dynamic |
| 70 V Transformer Taps | 30, 15, 7.5, 3.75, 1.75 W |
| 100 V Transformer Taps | 30, 15, 7.5, 3.75 W |
| Sensitivity (1W/1m) | 88 dB |
| Max SPL @ 1m | 108 dB |
| Frequency Response | 75 Hz - 20 kHz |
| Dispersion (1 kHz) | 180° horizontal x 180° vertical |
| Outside Diameter | 223 mm |
| Cutout | 193 mm |
| Depth | 131 mm |
| Grip Range | 3 - 65 mm |
| Weight | 2.5 kg |
| Enclosure / Grille | ABS plastic; steel grille, white (RAL9010) |
Frequently Asked Questions
Is the CM30DTD sold as a pair?
Yes. It is sold as a pair.
What operation modes does it support?
Front-panel selection sets 16 ohm or 70 V/100 V operation.
How deep is the CM30DTD?
It has a minimal built-in depth of 131 mm without compromising acoustical performance.
