Biamp Desono C-IC6 In-Ceiling, Indoor 6.5" Coaxial Loudspeaker (Pair, White) - 911.0925.900
Roll over image to zoom in Click on image to zoom
Biamp Desono C-IC6 In-Ceiling, Indoor 6.5" Coaxial Loudspeaker (Pair, White) - 911.0925.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono C-IC6 In-Ceiling, Indoor 6.5" Coaxial Loudspeaker (Pair, White) - 911.0925.900

Biamp SKU: 911.0925.900
No reviews
Price:
$520.00

Description

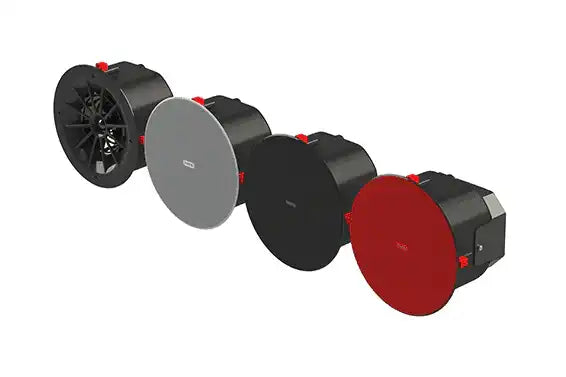

Sold as a pair, The Desono C-IC6 is a low-profile, two-way passive coaxial loudspeaker optimized for speech reproduction in conferencing applications. Designed with the installer in mind, the C-IC6 loudspeaker supports audio connections via either standard category cable or traditional speaker cable. They can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal. The grille plates are available in white, black, or red, or can be painted to match the room decor. The C-IC6 also directly integrates with the Tesira AMP-450BP — a four-channel “backpack” PoE+ amplifier — which reduces wiring requirements and installation time. The Desono C-IC6 loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction.

  • Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
  • Supports both CAT cables and standard speaker wiring
  • Designed to be integrated with the AMP-450BP (backpack PoE+ amplifier)
  • 8-ohm nominal impedance allows for daisy chaining
  • Bridge-mounted 1-inch soft dome tweeter
  • 2-way 6.5-inch treated paper woofer, mechanically isolated and independent of tweeter
  • 130-degree coverage optimized for low ceilings
  • 60W with a peak power of 120W
Operating Mode Passive with DSP
Operating Environment Indoor in climate-controlled environments
Operating Range (-10dB) 60 Hz to 20 kHz
Nominal Beamwidth (H x V) 130°, conical
Transducers LF 1 x 6.5" (165 mm) treated paper cone
HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance 22V 60W @ 8Ω (240W peak)
Nominal Sensitivity @ 1m @ 1W 88 dB
@ 2.83V 88 dB
Nominal Maximum SPL @ 1m Peak 112 dB
Continuous 106 dB
Recommended Amplifiers 60W - 120W @ 8Ω (22V - 31V); Tesira AMP-450BP
Input Connection One 4-pole Euroblock connector for two pair of parallel connections [up to 16AWG]
Two RJ-45 connectors
Mounting Provisions 4 mounting clamps with 36 mm (1.4”) grip range
Compliance ETL listed to comply with UL 1480A and UL 2043
Certified to CSA C22.2#62368-1
Suitable for use in air handling spaces per NFPA 70, NFPA 90
Conforms with City of Chicago Codes
Dimensions H x Dia 151 mm x 276 mm (5.9” x 10.9”)
Cutout Diameter 248 mm (9.75”)
Weight 3.5 kg (7.8 lbs)
Finish PC/ABS V-0 plastic Matte finish, black
Grille Powder-coated perforated steel
Black, White, or Red
Accessories (included) C Ring; Tile Bridge; Paintable Metal Grille
Accessories (option) BPAK backpack adapter kit
C-IC6-GK-12PK grille kits (black, white, or red)
