Biamp Community W2-2W8T Two-Way 8-Inch "Wide" Compact System 70V/100V (Black) - 911.1347.900
Biamp Community W2-2W8T Two-Way 8-Inch "Wide" Compact System 70V/100V (Black) - 911.1347.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community W2-2W8T Two-Way 8-Inch "Wide" Compact Sys...
Product Overview

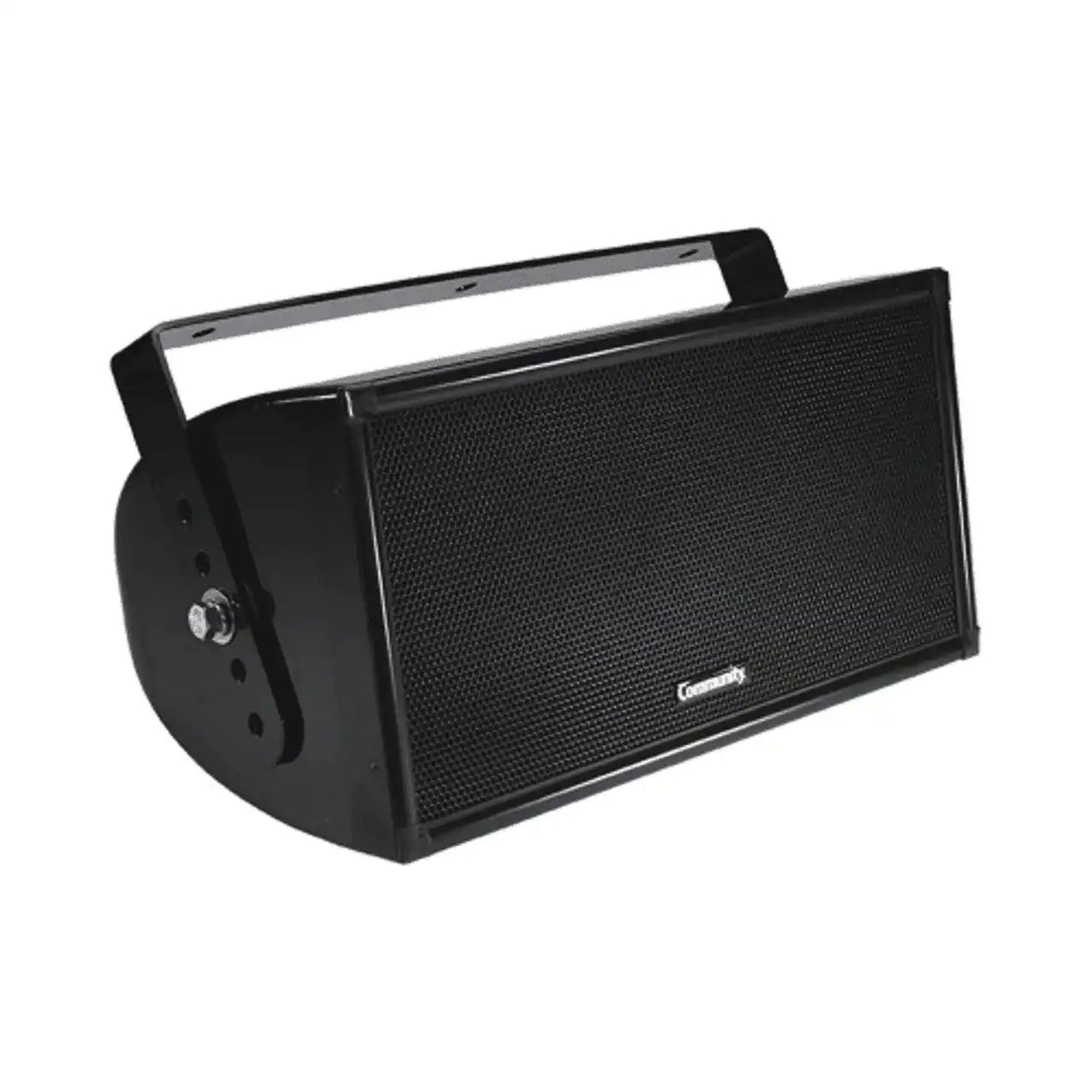

The Biamp Community W2-2W8T is a two-way 8-inch wide-coverage installation loudspeaker with a true 120-degree horizontal pattern and a factory-installed 200W autoformer for 70V/100V lines. It is built for sound reinforcement, down-fill, under-balcony fill, and monitoring. This black loudspeaker suits houses of worship, auditoriums, and multi-purpose venues needing wide, even coverage. Primary keyword: wide-coverage installation loudspeaker; long-tail: 120-degree under-balcony fill speaker, 70V/100V 2-way install loudspeaker, down-fill loudspeaker.
Product Description
The W2-2W8T uses a unique molded Super-V configuration of its LF drivers with a centrally placed 120-degree HF pattern-control horn to provide uniform coverage over a wide bandwidth, preventing the horizontal pattern collapse common in conventional under-balcony designs, especially in the voice range. A factory-installed 200W autoformer supports 70V/100V distributed lines with selectable taps at 200, 100, 50, and 25 watts. The enclosure and faceplate are multi-layer glass composite for high structural strength, with a three-layer WeatherStop grille, stainless-steel and powder-coated aluminum hardware, and an included stainless-steel mounting yoke. It is finished in black.
Key Features
- Super-V LF configuration — A molded Super-V driver arrangement maintains a uniform 120-degree horizontal pattern across the bandwidth, including the critical voice range.
- 70V/100V autoformer — A factory-installed 200W autoformer offers selectable taps at 200, 100, 50, and 25 watts for distributed systems.
- Weather-resistant build — A multi-layer glass-composite enclosure, three-layer WeatherStop grille, and stainless-steel hardware support demanding installs.
- Ferrofluid-cooled HF — Ferrofluid cooling supports reliable high-frequency output.
- Included mounting yoke — A stainless-steel mounting yoke is supplied for installation and aiming.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Format | Two-way, full-range |
| Operating Range | 65 Hz - 18 kHz |
| Frequency Response | 80 Hz - 15 kHz (+/- 3 dB) |
| Dispersion (-6 dB) | 120 x 60 |
| Maximum SPL @ 1 m | 121 dB continuous / 128 dB peak |
| Crossover Frequency | 1 kHz |
| Sensitivity (1W/1m) | 97 dB (1/3 octave); 98 dB (speech range) |
| Max Power Handling (passive) | 250W RMS, 600W program |
| Autoformer | 200W, 70V/100V, taps at 200/100/50/25W |
| Impedance | Nominal 8 ohms; minimum 4.6 ohms at 190 Hz |
| Transducers | LF: 2 x 8-inch (203 mm) carbon fiber; HF: 1-inch (25.4 mm) |
| Enclosure | Hand-laminated fiberglass; three-layer WeatherStop grille |
| Input Connection | 16-2 SJOW (12 ft / 4 m) |
| Dimensions (H x W x D) | 10.13" x 20" x 11.5" (257 x 508 x 292 mm) |
| Net Weight | 40.4 lbs (18.3 kg) |
Frequently Asked Questions
Does the W2-2W8T support 70V/100V systems?
Yes. A factory-installed 200W autoformer provides selectable taps at 200, 100, 50, and 25 watts.
What is the coverage pattern?
It provides a true 120 x 60 degree dispersion, well suited to wide-area, down-fill, and under-balcony fill applications.
Is it suitable for outdoor areas?
The multi-layer glass-composite enclosure, WeatherStop grille, and stainless-steel hardware make it suitable for demanding and weather-exposed installations.
Explore the full range of Biamp installed audio, conferencing, and paging products in the Biamp collection at Creation Networks.
