Biamp Community VLF208LV-I Dual 8-Inch "Large Volume" Subwoofer (Black) - 911.0584.900

Biamp SKU: 911.0584.900
No reviews

Price:
Sale price$970.00

Description

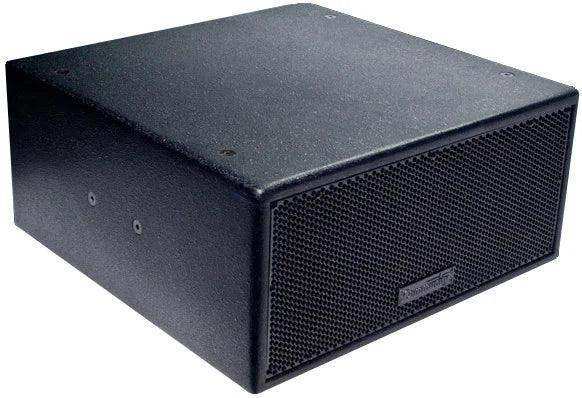

The Community VLF208LV-I is a dual 8" install subwoofer in a "large volume" enclosure with multiple M10 hang points that is designed for applications that require the lowest frequencies from a slim profile design. The VLF208LV-I measures 10.2" H (10" without feet) by 21.75" W and 21.75" D. With a frequency response down to 40 Hz (-3dB) and an operating range to 30 Hz (-10dB), the 1000W program VLF208LV-BI delivers low-end power. Its low-velocity port design extends the response while eliminating air noise through the heavy duty 16-gauge steel perforated grille.

The VLF subwoofers feature a low-profile design that is ideal for theaters, restaurants, auditoria, houses of worship, schools and other venues, with the compact VLF208 and VLF208LV fitting into areas where larger subwoofers are impractical.

  • Low profile design, small footprint
  • Designed to work as a traditional subwoofer or in steered bass arrays
  • DYNA-TECH protection circuitry
  • Suitable for in-wall, under-seating, under-stage and other "hidden" LF applications
  • Five-year warranty
  • Installation version with 12 mounting points
  • Loudspeaker Type: Compact, direct-radiating subwoofer
  • Operating Range*:
    • 30 Hz to 1,000 Hz
    • 40 Hz to 200 Hz (±3 dB)
  • Max Input Ratings:
    • 400W continuous, 1000W program, 4 ohms
    • 40 volts RMS, 89 volts momentary peak
  • Recommended Power Amplifier: 630W to 900W @ 4 ohms
  • Sensitivity (1W/1m)*: 93 dB SPL (40 Hz to 200 Hz 1/3 octave bands)
  • Maximum Output: 119 dB SPL / 126 dB SPL (peak)
  • Nominal Impedance: 4 ohms
  • Minimum Impedance:
    • 3.9 ohms @ 160 Hz
    • Nominal –6dB
  • Beamwidth: 360° H x 180° V
  • Axial Q / DI: 1/0, 40 Hz to 200 Hz
  • Recommended Signal Processing: 40 Hz, 24 dB high pass filter
  • Drivers: LF (2) 8"
  • Driver Protection: None
  • Input Connection:
    • (2) NL4-compatible locking connector
    • (1) 2 conductor barrier strip
  • Enclosure: 11-ply cross-laminated birch
  • Finish: Black or white paint finish
  • Mounting/Rigging Provisions: (12) M10 hang points
  • Required Accessories: None
  • Supplied Accessories: (4) Rubber feet
  • Optional Accessories:
    • VLF-SAB steered array bracket
    • M10EYBLTKIT 10mm eyebolt kit
    • STKIT seat track kit
  • Dimensions (HxWxD): 10.2" x 21.75" x 21.75" (260 x 552x 552 mm)
  • Weight: 48 lbs. (21.8 kg)
