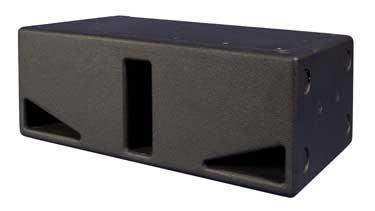

The VLF subwoofers feature a low-profile design that is ideal for theaters, restaurants, auditoriums, houses of worship, schools and other venues, with the compact VLF208 and VLF208LV fitting into areas where larger subwoofers are impractical.
Applications
- Houses of Worship
- Performing arts centers
- Theaters, lecture halls
- Auditoria
- Restaurants
- The "cafe gymnatorium"
- Portable bass reinforcement
- Under-stage, in-wall, under-seating and ceiling mount applications
Features
- Low profile design, small footprint
- Designed to work as a traditional subwoofer or insteered bass arrays
- DYNA-TECH protection circuitry
- Suitable for in-wall, under-seating, under-stage and other "hidden" LF applications
- Optional wall/ceiling mounting brackets and array brackets for multiple cluster configurations
- Available in black or white finishes
Specifications
- Loudspeaker Type: Compact subwoofer
- Operating Range:
- 55Hz-400Hz
- 60Hz-160Hz (+/-1dB) processed
- Max Input Ratings: 300W continuous, 750W program, 4 ohms, 35 volts RMS, 77 volts momentary peak
- Recommended Power Amplifier: 630W to 900W @ 4 ohms
- Sensitivity (1W/1m): 96dB SPL (63Hz to 160Hz 1/3 octave bands)
- Maximum Output: 121 dB SPL/128 dB SPL (peak)
- Nominal Impedance: 4 ohms
- Minimum Impedance: 4.8 ohms @ 130 Hz
- Nominal -6dB beamwidth: 360° H x 180° V
- Axial Q/DI: 1/0, 60Hz to 160Hz
- Recommended Signal Processing: 55Hz high pass filter,48 dB/Oct
- Drivers: LF (2) 8"
- Driver Protection: DYNA-TECH
- Input Connection:
- (1) NL4-compatible locking connector
- (1) 2 conductor barrier strip
- Enclosure: 11-ply cross-laminated birch
- Finish: Black or White paint finish
- Mounting/Rigging Provisions: (8) M10 hang points
- Required Accessories: Digital signal processor
- Supplied Accessories: (4) Rubber feet
- Optional Accessories:
- VLF-SAB steered array bracket
- VLF-Y208 yoke mounting bracket
- Dimensions: 8.25" H x 21.75" W x 13" D
- Weight: 40.7 lbs
