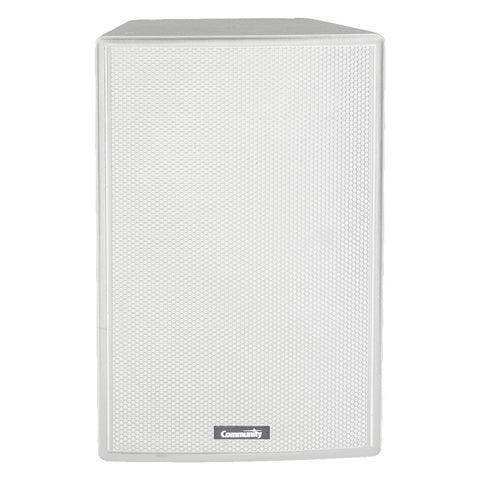

Biamp Community V2-8T Full-Range 2-Way 8-Inch 90 X 70 70V/100V Speaker (White) - 911.0573.900
Biamp Community V2-8T Full-Range 2-Way 8-Inch 90 X 70 70V/100V Speaker (White) - 911.0573.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community V2-8T Full-Range 2-Way 8-Inch 90 X 70 70V/100V Spea...
Product Overview
The Biamp Community V2-8T is a two-way, full-range loudspeaker system with a built-in autoformer for 70V/100V applications, finished in White. It is suitable for a wide variety of fixed installations and is compact yet powerful, making it ideal for distributed systems such as cafes, restaurants, shopping centers, and airports. The V2-8T is also an excellent choice for ancillary delay applications. It can be mounted to a wall or ceiling using the included yoke bracket or suspended from its M6 rigging points.
Product Description
The V2-8T pairs an 8-inch LF cone with a 1-inch HF driver in a trapezoidal, vented-bass enclosure with a user-rotatable constant-directivity square horn, allowing optimal dispersion in vertical or horizontal mounting. DYNA-TECH driver protection circuitry, a ferrofluid-treated HF driver, and Carbon Ring Cone Technology contribute to reliable, high-fidelity output. The 70V/100V autoformer model supports constant-voltage distributed systems. When used to augment a front-of-house system in venues such as auditoriums, theaters, and houses of worship, delay loudspeakers help even out the difference in sound pressure level across the room. Inputs use an NL4-compatible locking connector with a parallel terminal strip.
Key Features
- 70V/100V autoformer — The V2-8T includes a built-in autoformer for 70V/100V distributed-audio applications.
- Two-way design — An 8-inch LF cone and 1-inch HF driver deliver full-range output in a compact enclosure.
- Rotatable horn — A constant-directivity rotatable square horn allows optimal dispersion in vertical or horizontal mounting.
- Driver protection — DYNA-TECH protection circuitry and a ferrofluid-treated HF driver improve reliability and heat dissipation.
- Carbon Ring Cone — Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability.
- Included yoke — A mounting yoke with 10 and 20 degree standoffs is included for wall or ceiling mounting.
Typical Applications
The V2-8T suits houses of worship, auditoriums, and multi-purpose rooms using 70V/100V distributed audio, including delay and fill applications.
Technical Specifications
| Loudspeaker type | Compact two-way, full-range, trapezoidal, vented bass, user-rotatable horn |
| Operating range | 70 Hz to 18 kHz (-10 dB) |
| Frequency response | 100 Hz to 16 kHz (+/-3 dB) |
| Max input | 150W continuous, 375W program |
| Sensitivity (1W/1m) | 92 dB (100 Hz to 12.5 kHz) free space |
| Maximum output | 114 dB SPL / 120 dB SPL (peak) |
| Nominal impedance | 8 ohms |
| 70V/100V autoformer | Built-in (taps 100W, 50W, 25W, 12.5W) |
| Beamwidth (-6 dB) | 90 deg H x 70 deg V (vertical position) |
| Crossover | 1.3 kHz |
| Drivers | LF 1 x 8-inch cone; HF 1 x 1-inch |
| Input connection | NL4-compatible locking connector with parallel terminal strip |
| Enclosure | Trapezoidal (22.5 deg) 18 mm, 11-ply cross-laminated birch |
| Finish | Catalyzed polyester two-part paint, white |
| Dimensions | 17 in H x 11.3 in W x 11.7 in D (433 x 287 x 298 mm) |
| Weight with autoformer | 27.3 lbs (12.5 kg) |
Frequently Asked Questions
Does the V2-8T support 70V/100V systems?
Yes. The V2-8T includes a built-in autoformer with taps at 100W, 50W, 25W, and 12.5W for 70V/100V applications.
What drivers does it use?
It uses a single 8-inch LF cone and a 1-inch HF driver in a two-way configuration.
How is it mounted?
It can be wall- or ceiling-mounted with the included yoke bracket or suspended from its M6 threaded rigging points.
Order the Community V2-8T and the full Biamp lineup at Creation Networks.
