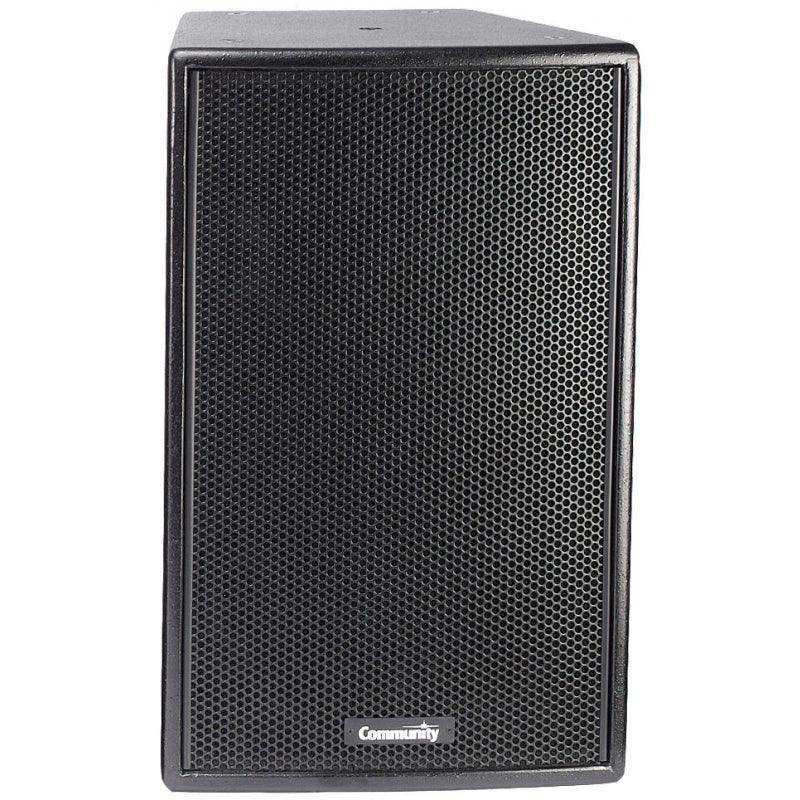

Biamp Community V2-8 Full-Range 2-Way 8-Inch 90 X 70 Speaker (Black) - 911.0570.900

The V2-8 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. Compact but powerful, it is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. When paired with a subwoofer such as the V2-210S, a V2-8 system will produce high-fidelity, broad spectrum sound that belies its modest size. The V2-8 is also an excellent choice for ancillary delay applications. When used to augment a front-of-house system in such venues as auditoriums, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for under balcony fill, over balcony fill, or simply placed towards the rear of the seating areas. By deploying V2-8 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation.

• DYNA-TECH driver protection circuitry
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
• Constant-directivity rotatable square horn
• Terminal strip and NL4-compatible connectors
• Available in standard black or white finishes
• Mounting yoke included with 10° and 20° vertical standoffs
• Optional V2-8T autoformer model for 70V/100V applications

• Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
• Operating Range: 70 Hz to 18 kHz (-10 dB)
• Frequency Response: 100 Hz to 16 kHz (±3 dB)
• Max Input Ratings:
• 150W continuous, 375W program
• 34.6 volts RMS, 69.2 volts momentary peak
• Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
• Maximum Output: 114 dB SPL / 120 dB SPL (peak)
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6.1 ohms @ 180 Hz
• Nominal –6dB
• Beamwidth: 90° H x 70° V (in vertical position)
• Crossover Frequency: 1.3 kHz
• Recommended Signal Processing: 90 Hz, 24 dB/octave Butterworth high pass filter
• Drivers:
• LF 1 x 8-inch cone
• HF 1 x 1-inch
• Driver Protection: DYNA-TECH protection circuitry
• Input Connection: NL4-compatible locking connector with terminal strip in parallel
• Controls: None
• Enclosure: Trapezoidal (22.5° included angle) 18mm,11-ply cross-laminated birch
• Mounting/Rigging Provisions:
• 9 x M6 threaded rigging fittings
• 4 x M6 threaded fittings for V-HSS and third-party suspension products
• Finish: Catalyzed polyester two-part paint, black or white
• Grille: Powder coated steel, black or white finish
• Required Accessories: None
• Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
• Optional Accessories:
• CMKIT ceiling mount kit
• V-HSS handle and stand socket
• VB-TILT tilting bracket
• VB-VY8 vertical yoke bracket
• M6EYBLTKIT 6mm eyebolt kit
• Dimensions:
• Height: 17 inches (433 mm)
• Width: 11.3 inches (287 mm)
• Depth:11.7 inches (298 mm)
• Weight (incl. bracket):
• 25.3 lbs (11.5 kg)
• 27.3 lbs (12.5 kg) with autoformer
