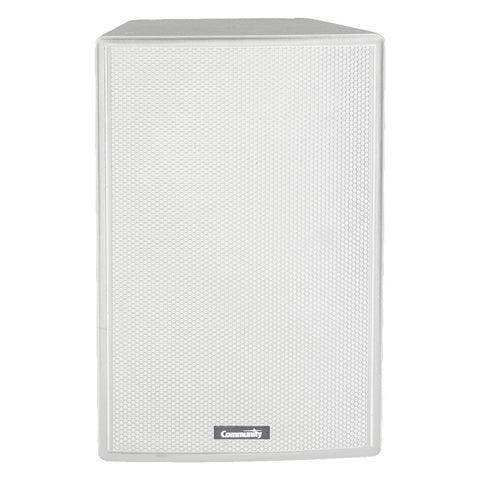

The V2-6 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device.
Features
- DYNA-TECH driver protection circuitry
- Ferrofluid-treated HF driver for improved heat dissipation
- Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
- Rotatable square horn
- Terminal strip and NL4-compatible connectors
- Mounting yoke included with 10° and 20° vertical standoffs
Specifications
- Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, user rotatable horn
- Operating Range: 90 Hz to 18 kHz (-10 dB)
- Frequency Response: 110 Hz to 16 kHz (±3 dB)
- Max Input Ratings:
- 100W continuous, 250W program
- 28.3 volts RMS, 56.6 volts momentary peak
- Sensitivity (1W/1m): 92 dB (100 Hz to 12.5 kHz) free space
- Maximum Output: 112 dB SPL / 118 dB SPL (peak)
- Nominal Impedance: 8 ohms
- Minimum Impedance: 6 ohms @ 200 Hz
- Nominal –6dB Beamwidth: 90° H x 70° V (in vertical position)
- Crossover Frequency: 1.3 kHz
- Recommended Signal Processing: 100 Hz, 24 dB/octave Butterworth high pass filter
- Drivers:
- LF: 1x 6.5" cone
- HF: 1x 1"
- Driver Protection: DYNA-TECH protection circuitry
- Input Connection: NL4-compatible locking connector with terminal strip in parallel
- Controls: None
- Enclosure: Trapezoidal (22.5° included angle) 18mm, 11-ply cross-laminated birch
- Mounting/Rigging Provisions:
- 9x M6 threaded rigging fittings
- 4x M6 threaded fittings for V-HSS and third-party suspension products
- Finish: Catalyzed polyester two-part paint
- Grille: Powder-coated steel
- Required Accessories: None
- Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
- Optional Accessories:
- CMKIT ceiling mount kit
- V-HSS handle and stand socket
- VB-TILT tilting bracket
- VB-VY6 vertical yoke bracket
- M6EYBLTKIT 6mm eyebolt kit
- Dimensions: 15.5" H x 9.8" W x 10.1" D (395 x 249 x 258 mm)
- Weight (incl. bracket): 19.7 lbs (8.9 kg)
