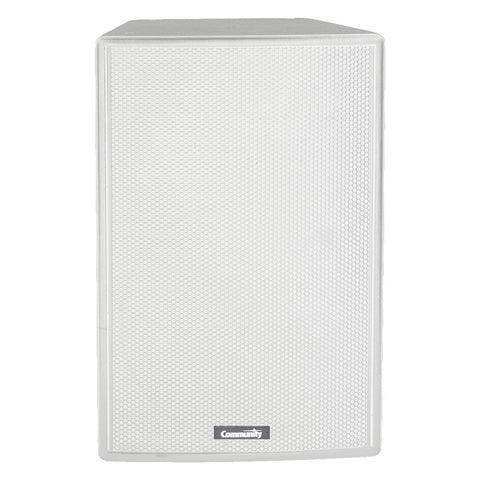

Biamp Community V2-3594 Full-Range 3-Way 15-Inch 90 X 40 Speaker (White) - 911.1313.900
Biamp Community V2-3594 Full-Range 3-Way 15-Inch 90 X 40 Speaker (White) - 911.1313.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community V2-3594 Full-Range 3-Way 15-Inch 90 X 40 Speaker (W...
Product Overview
The Biamp Community V2-3594 is a three-way, full-range 15-inch loudspeaker with horn-loaded mid and high frequencies and a 90 x 40 dispersion pattern. It suits fixed installations needing intelligibility and musical clarity in large, reverberant spaces such as houses of worship and auditoriums. Relevant searches include 15-inch three-way loudspeaker, install sound reinforcement speaker, and horn-loaded full-range speaker.
Product Description
The V2-3594 provides improved pattern control over two-way designs, making it well suited where intelligibility and musical clarity prove challenging. Its 90 x 40 pattern delivers controlled coverage that is particularly useful in rooms wider than they are deep, and the trapezoidal enclosure allows clustering into arrays. Powerful with exceptionally low distortion, it suits contemporary worship services, performance spaces, and theatrical sound reinforcement, and a rotatable horn allows optimal dispersion in vertical or horizontal mounting. The enclosure may be suspended from its M10 threaded rigging points and is finished in white.
Key Features
- Three-way full-range design — Horn-loaded mid and high drivers provide controlled pattern coverage and clarity over two-way designs.
- Trapezoidal enclosure — An 18 mm 11-ply cross-laminated birch trapezoidal cabinet allows clustering into powerful arrays.
- User-rotatable horn — The rotatable horn delivers optimal dispersion in either vertical or horizontal mounting.
- DYNA-TECH protection — DYNA-TECH driver protection circuitry guards the system during demanding use.
- Flexible rigging — Thirteen M10 fittings plus four M8 fittings support a wide range of suspension hardware.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Loudspeaker Type | Three-way, full-range, trapezoidal, vented bass, rotatable horn |
| Operating Range | 60 Hz to 18 kHz (-10 dB) |
| Frequency Response | 80 Hz to 16 kHz (-3 dB) |
| Nominal Beamwidth (H x V) | 90 x 40 (vertical position) |
| Crossover Frequencies | 600 Hz / 3 kHz |
| Drivers | LF 1x 12"; MF 1x 6.5"; HF 1x 1" |
| Max Input Ratings | 200W continuous, 500W program |
| Nominal Impedance | 8 ohms |
| Recommended Signal Processing | 60 Hz 24 dB/octave Butterworth high-pass |
| Driver Protection | DYNA-TECH |
| Input Connection | NL4-compatible with parallel terminal strip |
| Enclosure | 18 mm 11-ply cross-laminated birch, trapezoidal |
| Finish | White, catalyzed polyester two-part paint |
Frequently Asked Questions
Where is the V2-3594 best used?
It suits fixed installations in houses of worship, auditoriums, and performance spaces requiring intelligibility and musical clarity.
Can it be flown or arrayed?
Yes. Thirteen M10 and four M8 rigging fittings support suspension hardware, and the trapezoidal cabinet allows clustering into arrays.
Can the horn be rotated?
Yes. The user-rotatable horn provides optimal dispersion in vertical or horizontal mounting.
