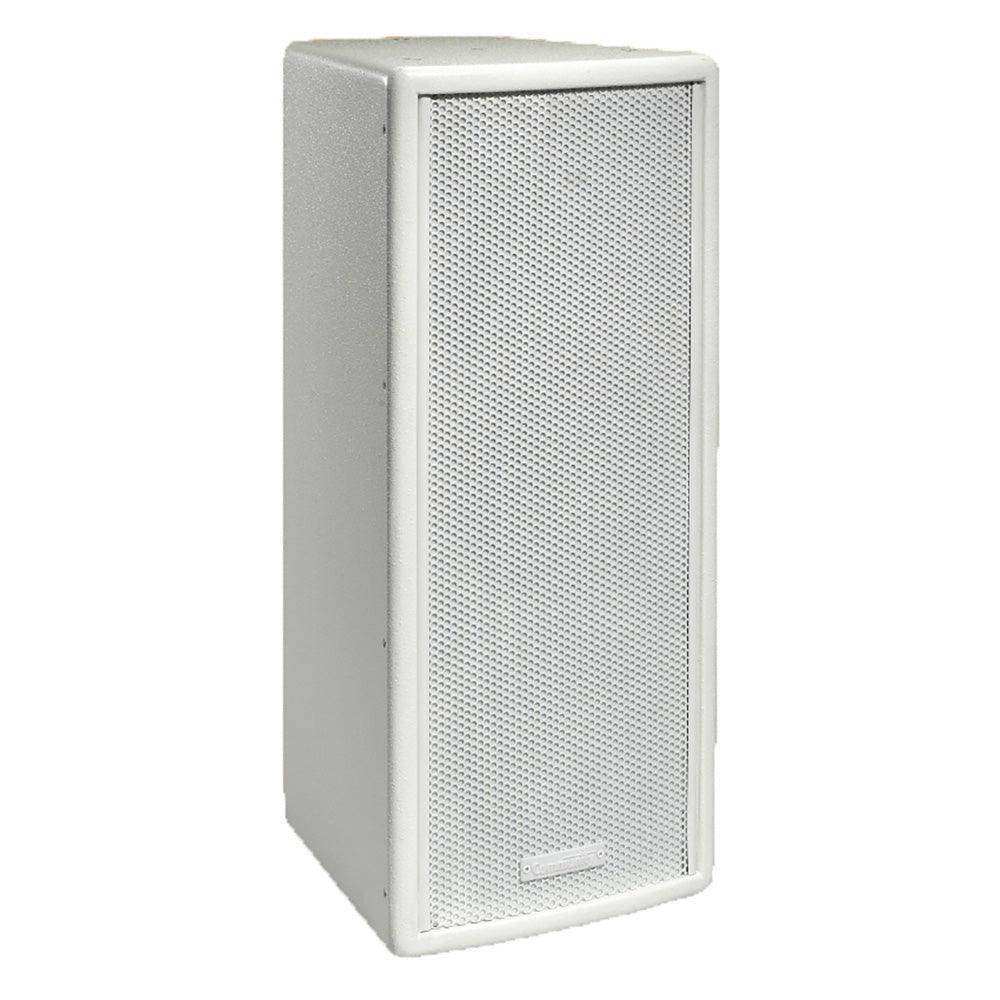

Biamp Community V2-28T Full-Range 2-Way Dual 8-Inch 90 X 70 70V/100V Speaker (White) - 911.0577.900

The Community V2-28T is a two-way, full-range loudspeaker system with built-in 200W transformer that is suitable for use in a wide variety of fixed installations. With its powerful dual cone drivers, the V2-28T provides additional low frequency and mid-range output over that of its sister product, the V2-8. When paired with a subwoofer such as the V2-210S, a V2-28 system will produce high-fidelity, broad spectrum sound that belies its modest size. In addition to distributed systems, the V2-28T is an excellent choice for ancillary delay applications. When used to augment a front-of-house system in venues such as auditoriums, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for under balcony fill, over balcony fill, or simply placed towards the rear of the seating areas. By deploying V2-28T loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation. The V2-28T may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

The V2-28T's built-in 200W autoformer features taps at 200W, 100W, 50W and 25W.

Features

• 200W V2-28T autoformer model for 70V/100V applications
• DYNA-TECH driver protection circuitry
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability
• Constant-directivity rotatable square horn
• Frequency shaded woofers for smooth vertical pattern control
• Terminal strip and NL4-compatible connectors
• Mounting yoke included with 10° and 20° vertical standoffs

Specifications

• Loudspeaker Type: Compact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
• Operating Range: 60 Hz to 18 kHz (-10 dB)
• Frequency Response: 90 Hz to 16 kHz (±3 dB)
• Max Input Ratings:
• 300W continuous, 750W program
• 34.6 volts RMS, 69.2 volts momentary peak
• Sensitivity (1W/1m): 94 dB (100 Hz to 12.5 kHz) freespace
• Maximum Output: 119 dB SPL / 125 dB SPL (peak)
• Nominal Impedance: 4 ohms
• Minimum Impedance: 3.4 ohms @ 200 Hz
• Nominal –6dB Beamwidth: 90° H x 70° V (in vertical position)
• Crossover Frequency: 1.3 kHz
• Recommended Signal Processing: 70 Hz, 24 dB/octave Butterworth high pass filter
• Drivers:
• LF: 2x 8" cone
• HF: 1x 1"
• Driver Protection: DYNA-TECH protection circuitry
• Input Connection: NL4-compatible locking connector with terminal strip in parallel
• Controls: None
• Enclosure: Trapezoidal (22.5° included angle) 18mm,11-ply cross-laminated birch
• Mounting/Rigging Provisions:
• 9x M6 threaded rigging fittings
• 4x M6 threaded fittings for V-HSS
• 4x M8 for third-party suspension products
• Finish: Catalyzed polyester two-part paint
• Grille: Powder-coated steel
• Required Accessories: None
• Supplied Accessories: Yoke-style mounting bracket with optional 10° and 20° standoffs that allow a 10° or 20° downward or upward vertical tilt
• Optional Accessories:
• CMKIT ceiling mount kit
• V-HSS handle and stand socket
• VB-TILT tilting bracket
• VB-VY28 vertical yoke bracket
• M6EYBLTKIT 6mm eyebolt kit
• Dimensions (HxWxD): 25.5" x 11.3" x 11.7" (649 x 287 x298 mm)
• Weight (incl. bracket): 38.7 lbs (17.7 kg) with autoformer
