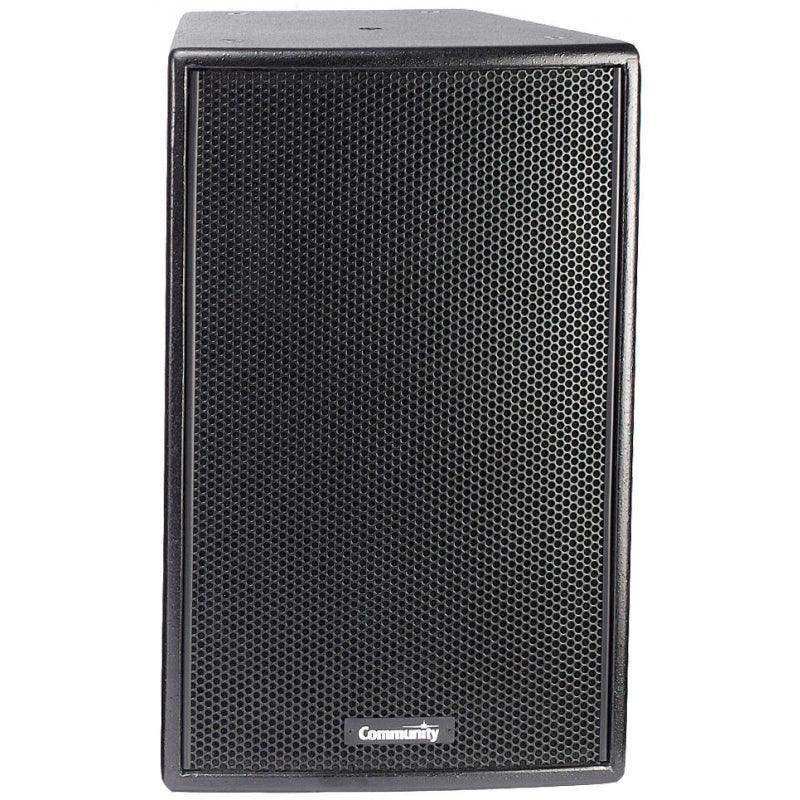

Biamp Community V2-1596 Full-Range 2-Way 15-Inch 90 X 60 Speaker (Black) - 911.0568.900

Biamp SKU: 911.0568.900
No reviews

Price:
Sale price$1,210.00

Description

The V2-1596 from Community is a two-way, full-range loudspeaker system suitable for use in a wide range of fixed installations. Extremely powerful with a clear, low distortion sonic quality, the V2-1596 is ideal for applications such as contemporary worship services, music and dance clubs, and theatrical sound reinforcement. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The 90º x 60º pattern makes the V2-1596 useful for applications requiring a wide angle of controlled coverage, such as in rooms that are wider than they are deep. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware from Community, or it may be installed using a third-party mounting device.

The V2-1596 provides extended high frequency response, low distortion output, authoritative bass, and precise pattern control. Featuring carefully designed crossovers that provide flat acoustic power response throughout the critical mid-range region, and Community’s exclusive DYNATECH driver protection circuitry, the V2-1596 is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price.

  • Discreet and aesthetic trapezoidal enclosure
  • Optimized voicing for full-range reproduction
  • DYNA-TECH driver protection circuitry
  • Ferrofluid-treated HF driver for improved heat dissipation
  • Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
  • Terminal strip and NL4-compatible connectors
  • Multiple bracket options offer affordable arraying solutions
  • Included in Community’s Forecaster HD ceiling distributed system software
  • Available in standard black or white finishes
  • Loudspeaker Type: Two-way, full-range, trapezoidal,vented bass
  • Operating Range: 60 Hz to 18 kHz (-10 dB)
  • Frequency Response: 80 Hz to 16 kHz (±3 dB)
  • Max Input Ratings: 200W continuous, 500W program
  • 40 volts RMS, 80 volts momentary peak
  • Sensitivity (1W/1m): 98 dB (100 Hz to 12.5 kHz) free space
  • Maximum Output: 121 dB SPL / 127 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 6.4 ohms @ 140 Hz
  • Nominal –6dB Beamwidth: 90° H x 60° V (in vertical position)
  • Crossover Frequency: 1.3 kHz
  • Recommended Signal Processing: 60 Hz, 24 dB/octave Butterworth high pass filter
  • Drivers:
    • LF 1 x 15-inch cone
    • HF 1 x 1-inch
  • Driver Protection: DYNA-TECH protection circuitry
  • Input Connection: NL4-compatible locking connector with terminal strip in parallel
  • Controls: None
  • Enclosure: Trapezoidal (22.5° included angle) 18mm,11-ply cross-laminated birch
  • Mounting/Rigging Provisions:
    • 13 x M10 threaded rigging fittings
    • 4 x M8 threaded fittings for third-party suspension products
  • Finish: Catalyzed polyester two-part paint, black or white
  • Grille: Powder coated steel, black or white finish
  • Required Accessories: None
  • Supplied Accessories: None
  • Optional Accessories:
    • VB-Y15 U-shaped yoke bracket
    • VB-VY15 vertical yoke bracket
    • CMKIT ceiling mount kit
    • VB-TILT tilting bracket
    • VB-VST versatilt bracket
    • VFKIT vertical flying kit
    • M10EYBLTKIT 10mm eyebolt kit
    • STKIT seat track kit
  • Dimensions:
    • Height: 27.2 inches (690 mm)
    • Width: 18.4 inches (467 mm)
    • Depth: 15.9 inches (404 mm)
  • Weight: 47.8 lbs (21.7 kg)
  • Model Options:
    • V2-1596B (black finish)
    • V2-1596W (white finish)
