Biamp Community TRC400-8 Tranformer 400W, 8 Ohms

Biamp SKU: 911.1307.900
No reviews

Price:
Sale price$386.00

Description

The TRC400-8 is a 400 watt line transformer used to step down the voltage and impedance of "constant voltage" audio distribution lines to the voltage level and impedance required by loudspeakers. It can also be used to step up the voltage of an amplifier to the voltage needed for a distribution line. The TRC400-8 has three wattage taps. The taps allow individual loudspeakers to be adjusted to operate at the same or different power levels compared to other loudspeakers in a system on the distribution line. The input taps on the TRC400-8 allow it to be used with 70V and 100V distribution systems.

The output taps of the TRC400-8 are designed to drive either 8 ohm or 4 ohm loudspeakers. The TRC400-8 is manufactured from high quality materials. Its high permeability iron core provides high power handling at low frequencies. The TRC400-8 has four mounting tabs that allow it to be bolted into back-boxes or other enclosures, to loudspeaker enclosures, or to loudspeaker mounting hardware. The stripped wire input and output leads can be easily connected to loudspeaker terminals and the distribution cable in a variety of ways including terminal strips, soldering, and wire-nuts.

Applications

  • 70V and 100V Loudspeaker Distribution Systems
  • Can be used with R SERIES (R.35, R.5, R1, R2) and W SERIES systems
  • Use for high power distributed announcement systems
  • Can be used to step up or step down voltage
  • Low insertion loss
  • Excellent low frequency performance at full power
  • Type: Line transformer for constant voltage audio distribution lines
  • Inputs: (2) 70V, 100V
  • Maximum Inputs:
    • 70V RMS / 100V peak
    • 100V RMS / 140V peak

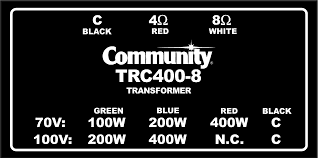

  • Taps: (3):
    • at 70V: 100W, 200W, 400W
    • at 100V: 200W, 400W
  • Output Load: Nominal 4 or 8 Ohm
  • Frequency Response: 50 Hz - 16 kHz (+/- 1 dB)
  • Insertion loss: 1.1 dB
  • Input & Output Connections: 8 in / 178 mm #18 AWG color coded wires with stripped ends
  • Construction: Open frame
  • Mounting Provisions: (4) mounting tabs each with 0.44 in. / 11 mm x 0.22 in. / 6 mm hole
  • Dimensions:
    • Height: 4.30 in. / 95 mm
    • Width: 5.01 in. / 114 mm
    • Depth: 3.75 in. / 95 mm
    • Weight: 8.8 lb. / 4.1 kg
  • Shipping Weight: 9.3 lb. / 4.3 kg
