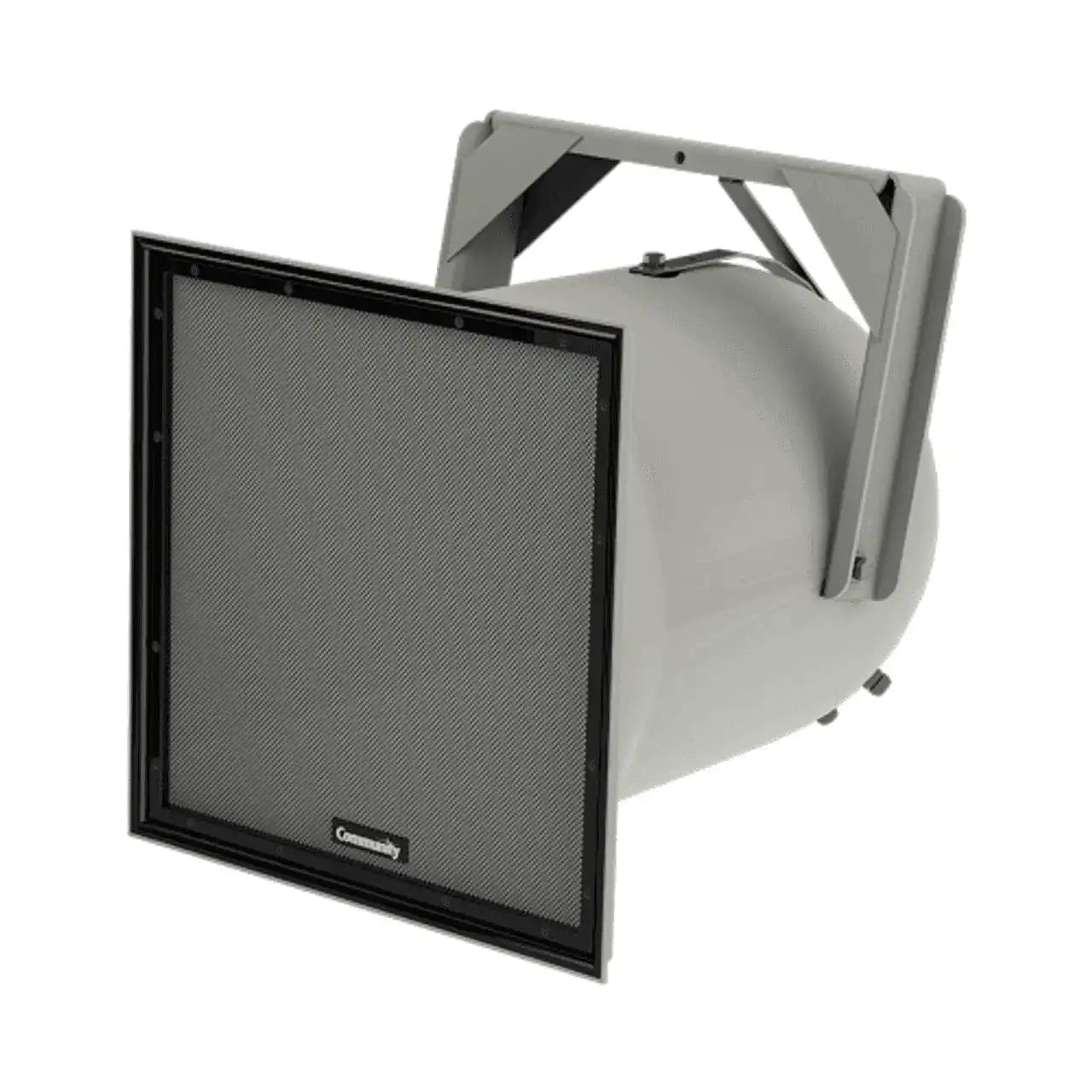

The Community R2-94Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.
The R2-94Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. A stainless steel mounting yoke is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.
Features
- Weather-resistant construction
- 3-layer Weather-Stop grille
- Application-specific coverage pattern
- High-efficiency horn loading
- High-fidelity, full-range reproduction of music and speech
- Included stainless steel mounting yoke for easy mounting and aiming
Specs
- Loudspeaker Type: 3-way horn loaded triaxial, weather-resistant
- Operating Range:
- 70 Hz to 16 kHz
- 70 Hz to 10 kHz (±5 dB)
- Max Input Ratings:
- 400W continuous, 1000W program
- 40 volts RMS, 89 volts momentary peak
- Recommended Power Amplifier: 830W to 1200W @ 4 ohms
- Sensitivity (1W/1m):
- 105 dB SPL (80 Hz to 16 kHz 1/3 octave bands)
- 106 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output: 131 dB SPL / 138 dB SPL (peak)
- Nominal Impedance: 4 ohms
- Minimum Impedance: 2.9 ohms @ 260 Hz
- Nominal –6dB Beamwidth:
- 80° H (+0° / -20°, 1.25 kHz to 10 kHz)
- 40° V (+13° / -5°, 1.25 kHz to 10 kHz)
- 100° H x 100° V (400 Hz)
- Axial Q / DI: 22.8 / 13.6, 1.25 kHz to 10 kHz
- Crossover Frequency: 600 Hz / 3.5 kHz
- Recommended Signal Processing: 70 Hz high pass filter
- Drivers:
- LF: 2x 12" weather-treated, Ferrofluid-cooled
- MF: 1x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled
- HF 1x 1" exit, titanium diaphragm
- Driver Protection: DYNA-TECH protection circuitry
- Input Connection: 12 ft (4 m) SJOW #16 gauge
- Controls: None
- Enclosure: Hand-laminated fiberglass, light grey gel coat
- Mounting/Rigging Provisions: (5) 1/2-13 rigging points
- Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
- Required Accessories (not included): 70 Hz high pass filter
- Supplied Accessories: Weather-resistant mounting yoke, light grey
- Optional Accessories (not included): TRC400 400-watt 70/100/140-volt transformer

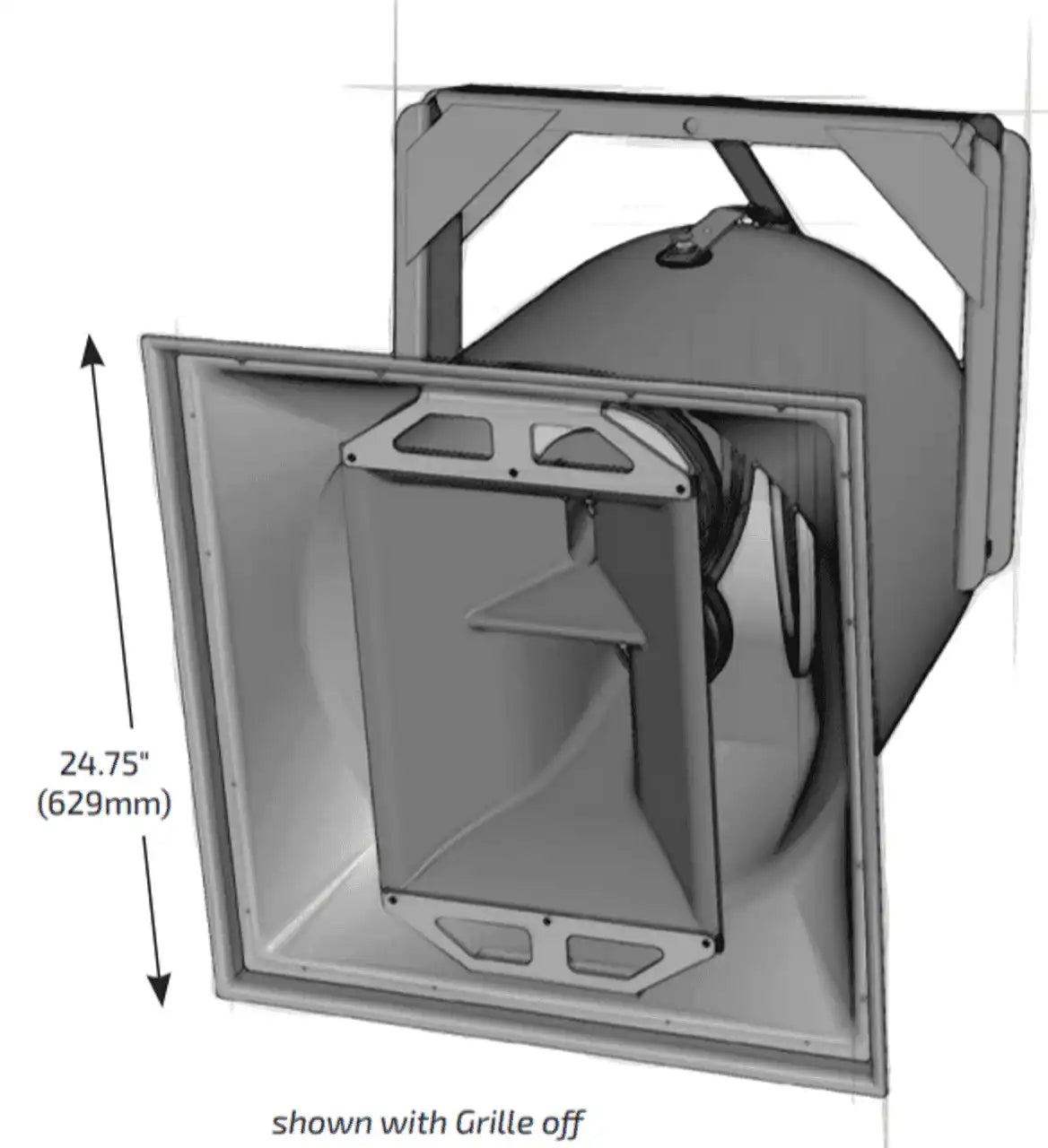

- Dimensions: 24.75" H x 24.75" W x 30.75" D (629 x 629x 781 mm)
- Weight: 96 lbs (43.5 kg)
- Shipping Weight: 124 lbs (56.2 kg)
