Biamp Community R2-77Z Full-Range 3-Way Dual 12-Inch High Output Horn Loaded 60 X 60 - 911.1281.900
Biamp Community R2-77Z Full-Range 3-Way Dual 12-Inch High Output Horn Loaded 60 X 60 - 911.1281.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community R2-77Z Full-Range 3-Way Dual 12-Inch High Output Ho...
Product Overview

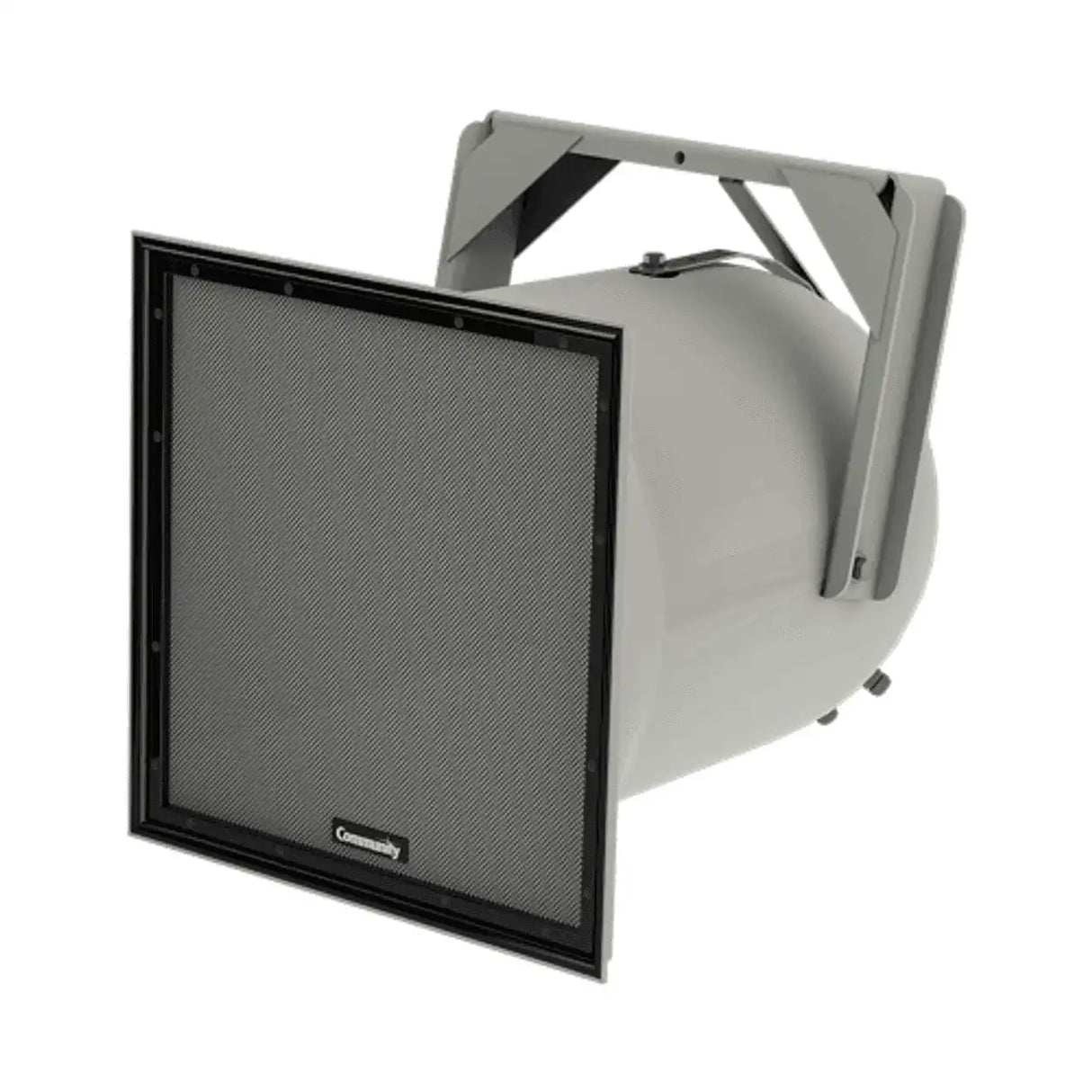

The Biamp Community R2-77Z is a weather-resistant 3-way horn-loaded dual 12-inch full-range installation loudspeaker for long-throw sound reinforcement. Engineered for high-fidelity music and intelligible speech in outdoor and indoor venues, this passive install loudspeaker provides 60 x 60 coverage. It is well suited to stadiums, houses of worship, and large multi-purpose venues that need durable, high-efficiency long-throw projection.
Product Description

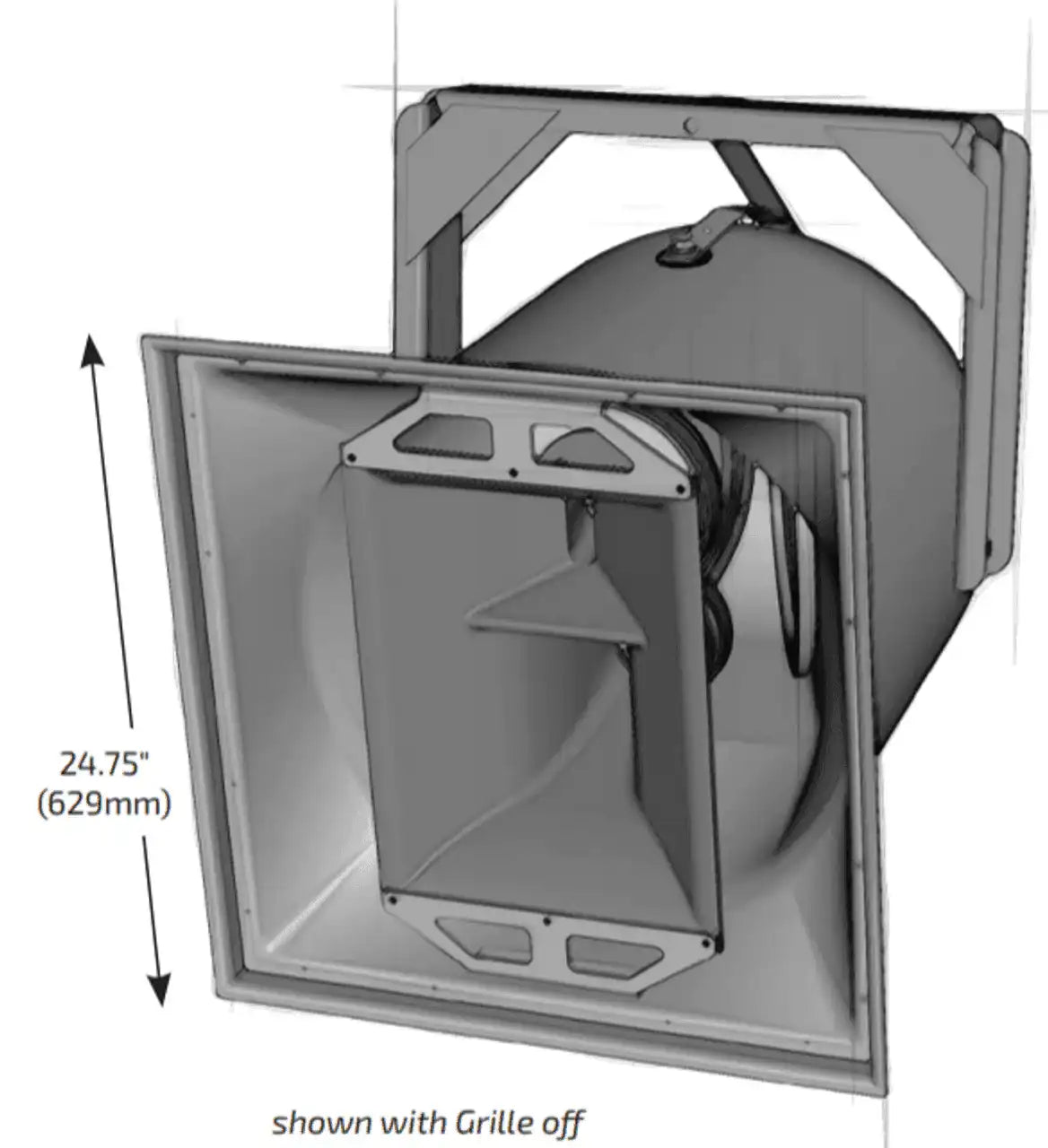

The R2-77Z full-range loudspeaker system is engineered for quality long-throw projection in outdoor and indoor applications. Its wide, smooth frequency response and high efficiency support high-fidelity music reproduction and clear, intelligible speech at very low distortion. The R2-77Z is an all-horn-loaded triaxial design using precision Community waveguides of hand-laminated fiberglass. The outer enclosure forms a double-wall construction with the internal bass horn, providing a fully weather-sealed chamber for the LF drivers, while the mid/high-frequency horn assembly is mounted in the mouth of the bass horn. A high-quality passive crossover with DYNA-TECH dynamic driver protection is included, along with a weather-resistant mounting yoke. The result is a strong, non-resonant, weather-resistant loudspeaker that is easy to install and aim.
Key Features
- All-horn-loaded triaxial design — Hand-laminated fiberglass waveguides provide high-efficiency, long-throw projection of music and speech.
- Weather-resistant construction — Weather-treated drivers and crossovers, a 3-layer Weather-Stop grille, and corrosion-resistant hardware suit outdoor installation.
- Application-specific coverage — The 60 x 60 pattern is matched to long-throw reinforcement requirements.
- DYNA-TECH driver protection — Dynamic driver-protection circuitry guards the drivers against overload.
- Included mounting yoke — A weather-resistant mounting yoke simplifies mounting and aiming.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Type | 3-way horn-loaded triaxial, weather-resistant |
| Operating Range | 70 Hz - 16 kHz (70 Hz - 10 kHz +/- 5 dB) |
| Max Input | 400W continuous, 1000W program |
| Recommended Amplifier | 830W to 1200W @ 4 ohms |
| Sensitivity (1W/1m) | 104 dB (1/3 octave); 105 dB (speech range) |
| Maximum Output | 130 dB SPL (137 dB peak) |
| Nominal Impedance | 4 ohms |
| Nominal Beamwidth (H x V) | 60 x 60 |
| Crossover | 600 Hz / 3.5 kHz |
| Drivers | 2 x 12" LF (Ferrofluid-cooled), 1 x M200 2" MF, 1 x 1" titanium HF |
| Enclosure | Hand-laminated fiberglass, light grey gelcoat; 3-layer Weather-Stop grille |
| Environmental | IEC529 IP55W with minimum 5-degree downward aiming angle |
| Dimensions | 24.75" H x 24.75" W x 30.75" D (629 x 629 x 781 mm) |
| Weight | 96 lbs (43.5 kg) |
Frequently Asked Questions
Is the R2-77Z suitable for outdoor use?
Yes. It uses weather-treated drivers and crossovers, a 3-layer Weather-Stop grille, and an IP55W rating with a minimum 5-degree downward aiming angle.
What amplifier does it need?
A recommended amplifier of 830W to 1200W at 4 ohms; the loudspeaker handles 400W continuous and 1000W program.
Does it require external processing?
A 70 Hz high-pass filter is recommended; a digital system processor is an optional accessory.
