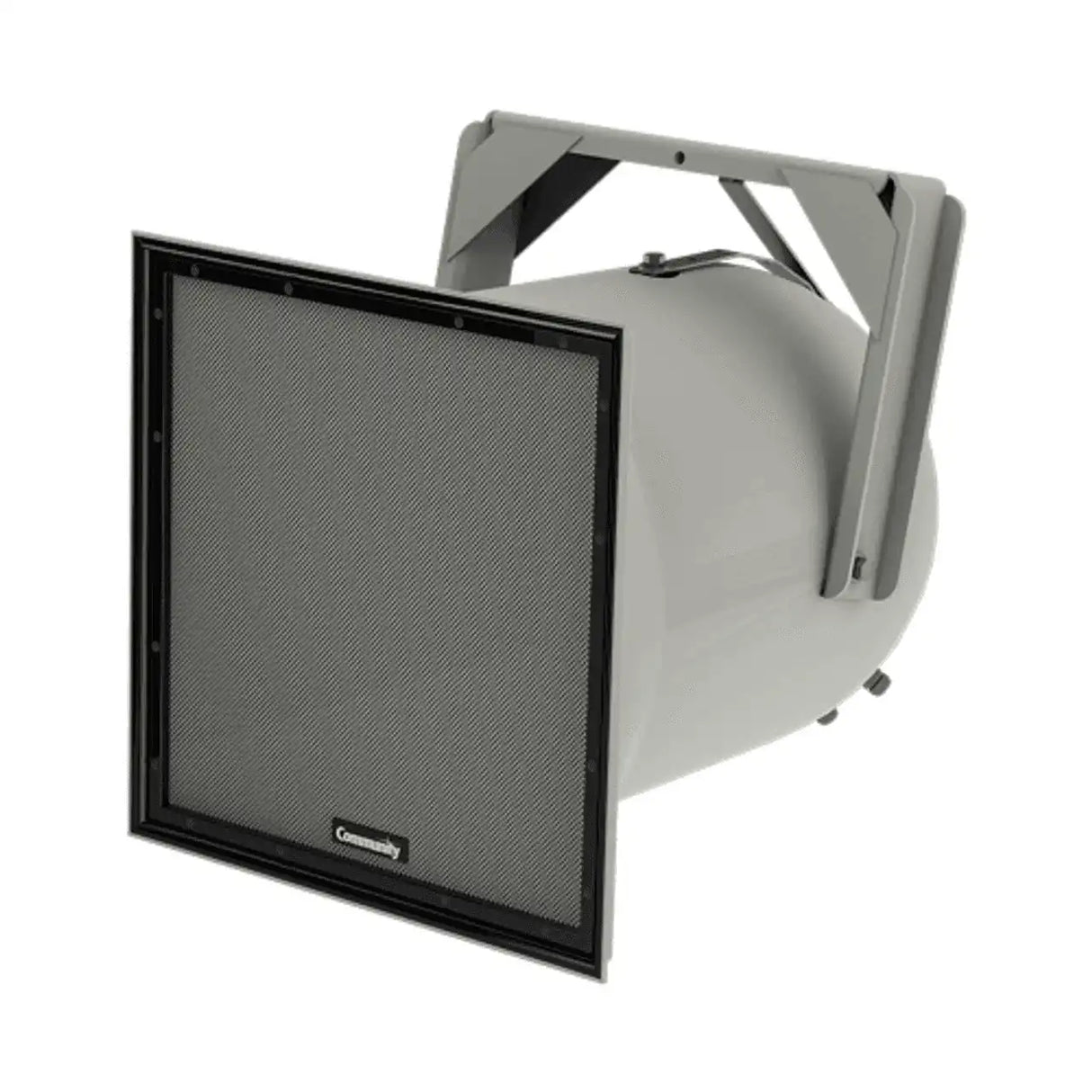

Biamp Community R2-66MAX Full-Range 3-Way Dual 12-Inch High Output 60 X 60 Speakers

Biamp SKU: 911.1278.900
No reviews

Price:
Sale price$6,052.00

Description

The Community R2-66MAX is a three-way, full-range loudspeaker system designed to provide "No Compromises" premium music reproduction at very high output levels, and also improves the legendary R2 voice projection and intelligibility capabilities. It is designed with the same materials and construction as the standard R2 for extreme weather resistance, and can withstand long-term exposure to tough environmental conditions.

The R2-MAX is constructed with premium components in a biamp format to maximally optimize its performance. It uses a 1.4" exit HF compression driver that features a copper shorting ring and hybrid diaphragm to reduce resonances while maintaining excellent HF extension. Operated with a high crossover frequency, the large HF driver maintains very high headroom, delivering effortless performance. The dual, high power 12" LF drivers feature an aluminum demodulation ring for very clean, low distortion performance. The mid-range features a higher performance version of the legendary low compression ratio M200 2" exit compression driver, achieving 3dB greater output with extremely low distortion. The passive MF/HF horn signal aligns the drivers for the best possible music and speech performance. The result is an excellent loudspeaker system that is capable of exceeding expectations in any application.

Applications

  • Arenas
  • Stadiums
  • Racetracks
  • Amusement Parks
  • Themed Entertainment Facilities
  • Fairgrounds
  • Rodeos
  • Air Shows
  • Convention Centers
  • Multipurpose Indoor and Outdoor Venues
  • Modern stadium loudspeaker, designed to meet the needs of today's sporting venues for superb musicality, excellent speech intelligibility and very high output
  • Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
  • Large format 1.4" exit HF, high output M200HP, and premium high output LF drivers
  • High sensitivity and very high output (134 dB max), with flat extended frequency response
  • Finish: Hand-laminated multi-layer fiberglass with paintable, light grey gel coat and dual-layer powder-coated steel grille
  • Nominal Beamwidth (H x V): -52 (50° x 20°), -64 (60° x 40°), -66 (60° x 60°), -94 (90° x 40°)
  • Continuous Max Output: LF - 134 dB (140 dB Peak); MF/HF - 133 dB (139 dB peak)
  • Power Handling: LF - 1200W continuous @ 8 ohms; MF/HF - 350W continuous @ 8 ohms
  • Sensitivity (1W/1m): LF: 103 dB; MF/HF: 109 dB
  • Operating Range: 71Hz – 22 kHz
  • Transducers (R2-64/66/94MAX):LF-2 x 12” weather-resistant cones; MF-1 x 2” exit M200HP compression driver; HF-1 x 1.4” exit compression driver; (R2-52MAX):LF-2 x 12” weather-resistant cones; MF-2 x 2” exit M200HP comp. driver; HF-1 x 1” exit comp. driver

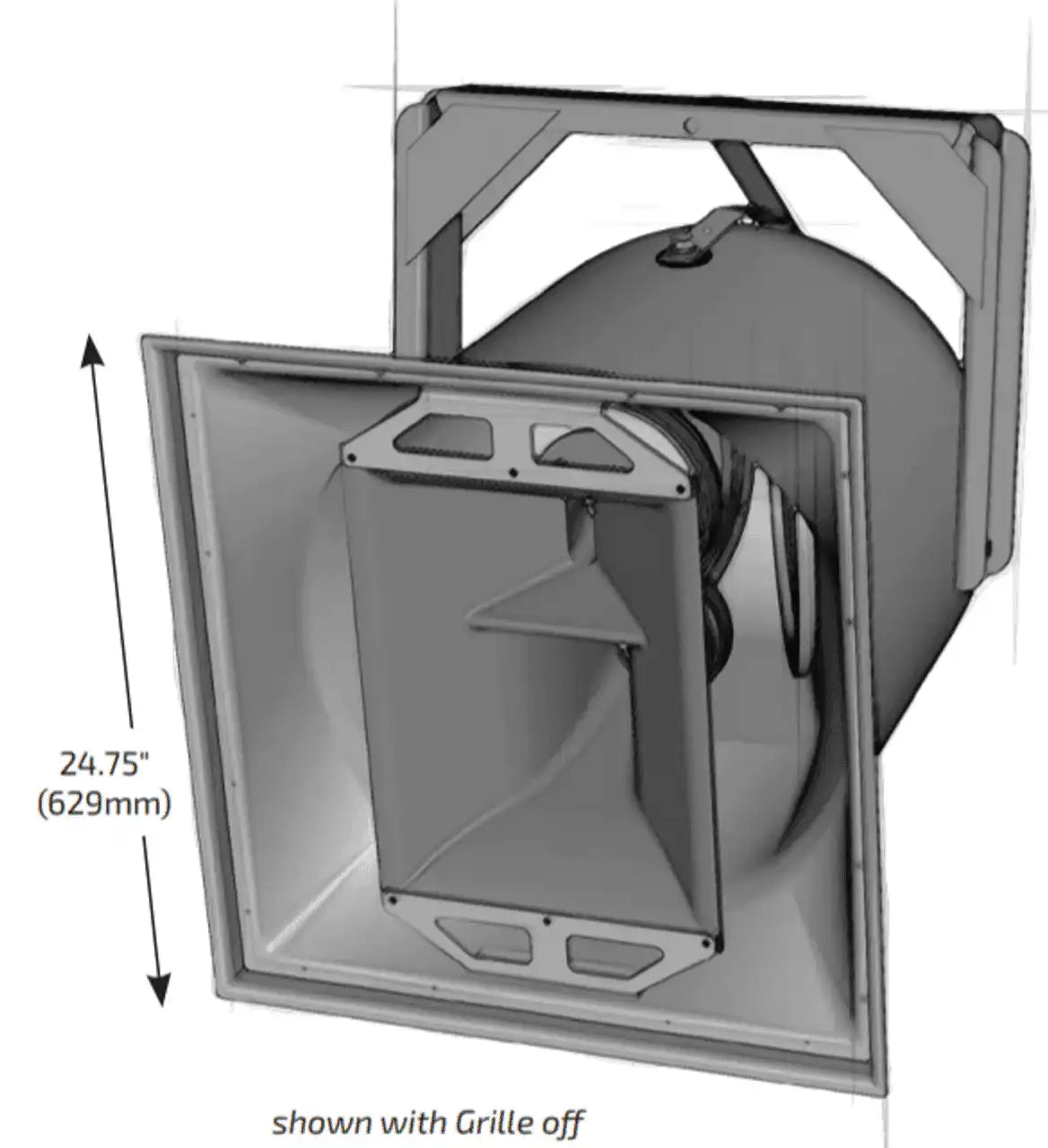

  • Dimensions (H x W x D): 24.75" x 24.75 " x 30.75 " (629 x 629 x 781 mm)
