The family of R-MAX loudspeakers delivers outstanding musical performance. Housed in the same size enclosures as Community’s flagship R2 models, the R2-MAX models feature powerful 1.4-inch exit HF drivers, high performing mid-range drivers, and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. The R2-52MAX adds 50° x 20° long range coverage with high-power 1-inch exit HF and dual M200HP mid-range drivers. While providing the outstanding dynamic range and projection expected from R SERIES, R2-MAX loudspeakers offer listeners a superior musical experience with higher output than the standard R2.

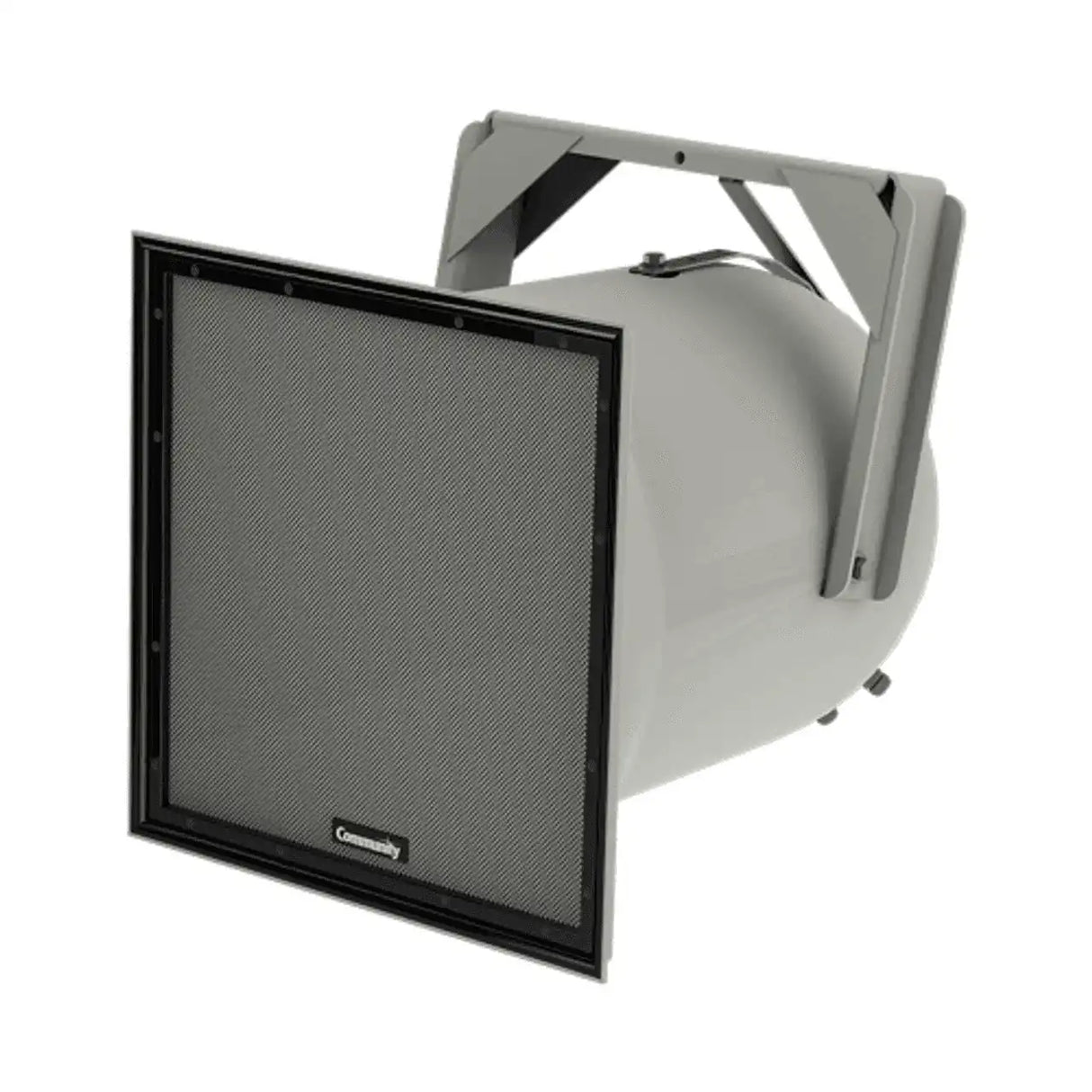

The Commnity R2-64MAX is a three-way, full-range loudspeaker system designed to provide "No Compromises" premium music reproduction at very high output levels, and also improves the legendary R2 voice projection and intelligibility capabilities. It is designed with the same materials and construction as the standard R2 for extreme weather resistance, and can withstand long-term exposure to tough environmental conditions.
Applications
- Arenas
- Stadiums
- Racetracks
- Amusement Parks
- Themed Entertainment Facilities
- Fairgrounds
- Rodeos
- Air Shows
- Convention Centers
- Multipurpose Indoor and Outdoor Venues
Features
- Modern stadium loudspeaker, designed to meet the needs of today's sporting venues for superb musicality, excellent speech intelligibility and very high output
- Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
- Large format 1.4" exit HF, high output M200HP, and premium high output LF drivers
- High sensitivity and very high output (133 dB max), with flat extended frequency response
Specifications
-
Finish: Hand-laminated multi-layer fiberglass with paintable, light grey gel coat and dual-layer powder-coated steel grille
-
Nominal Beamwidth (H x V): -52 (50° x 20°), -64 (60° x 40°), -66 (60° x 60°), -94 (90° x 40°)
-
Continuous Max Output: LF - 134 dB (140 dB Peak); MF/HF - 133 dB (139 dB peak)
-
Power Handling: LF - 1200W continuous @ 8 ohms; MF/HF - 350W continuous @ 8 ohms
-
Sensitivity (1W/1m): LF: 103 dB; MF/HF: 109 dB
-
Operating Range: 71Hz – 22 kHz
-
Transducers (R2-64/66/94MAX):LF-2 x 12” weather-resistant cones; MF-1 x 2” exit M200HP compression driver; HF-1 x 1.4” exit compression driver; (R2-52MAX):LF-2 x 12” weather-resistant cones; MF-2 x 2” exit M200HP comp. driver; HF-1 x 1” exit comp. driver
-
Dimensions (H x W x D): 24.75" x 24.75 " x 30.75 " (629 x 629 x 781 mm)
