Product Overview

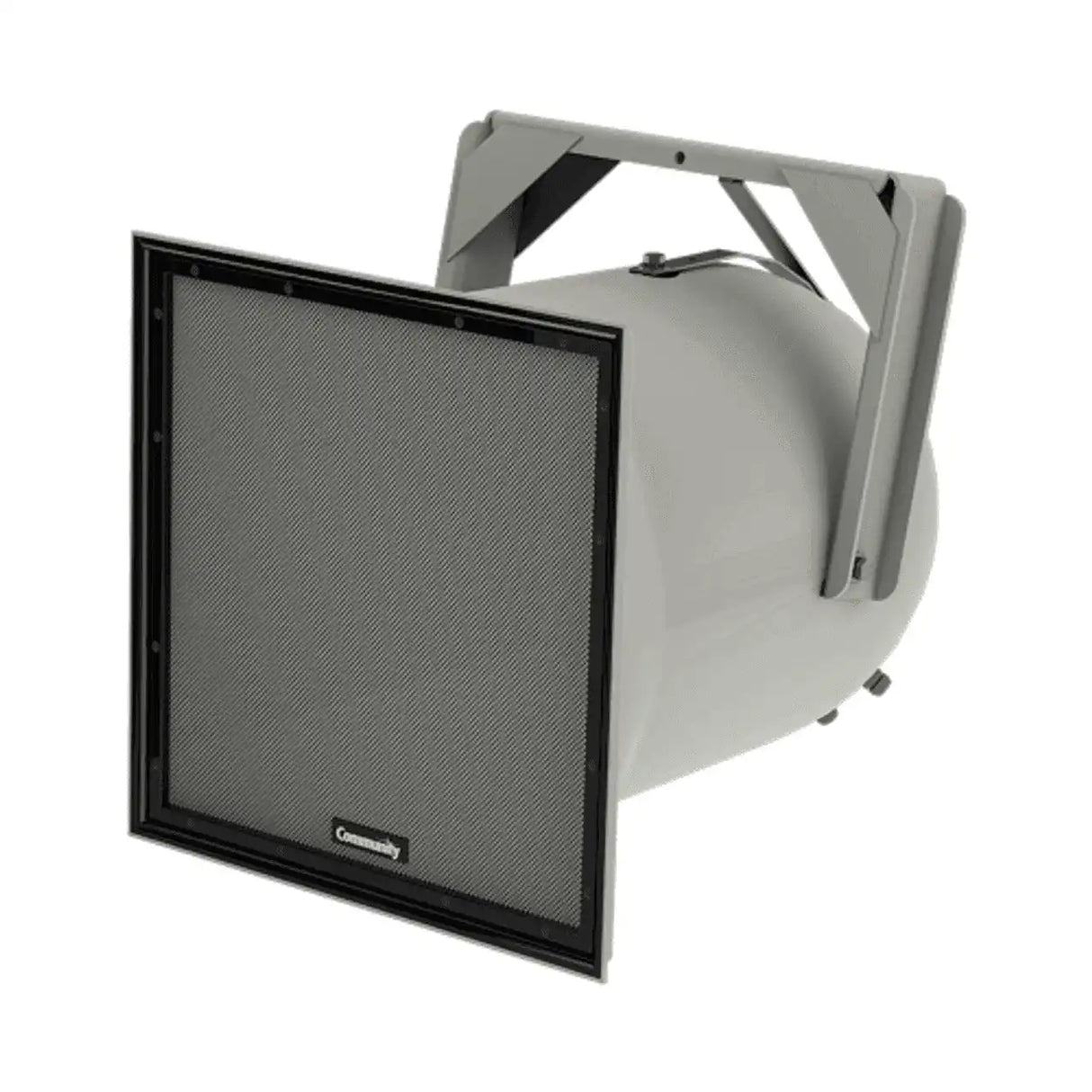

The Community R2-52Z is a three-way horn-loaded full-range loudspeaker engineered for long-throw, high-fidelity sound projection with EN 54-24 certification for voice alarm use. Its 50 x 20 coverage and high efficiency suit large indoor and outdoor venues requiring clear speech and music. The all-horn-loaded triaxial design is weather-resistant for permanent outdoor installation.
Product Description
The R2-52Z uses precision hand-laminated fiberglass waveguides in an all-horn-loaded triaxial design, with the outer enclosure forming a double-wall construction around the internal bass horn for a weather-sealed LF chamber. The mid/high-frequency horn assembly mounts in the mouth of the bass horn, and a high-quality passive crossover with DYNA-TECH dynamic driver protection is included. Weather-treated drivers and crossovers, a corrosion-resistant powder-coated steel grille and yoke, and a 3-layer Weather-Stop grille make the system strong, non-resonant, and easy to install and aim. EN 54-24 certification supports use in voice evacuation systems.
Key Features
- Horn-loaded triaxial — An all-horn-loaded triaxial design provides high-efficiency, long-throw projection of music and speech.
- EN 54-24 certified — EN 54-24 certification supports use in voice alarm and evacuation systems.
- Weather-resistant — Double-wall fiberglass construction with weather-treated drivers and a 3-layer Weather-Stop grille withstands outdoor exposure.
- Driver protection — DYNA-TECH protection circuitry guards the drivers in demanding applications.
- Included yoke — A weather-resistant mounting yoke is included for easy mounting and aiming.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Government space
- Commercial meeting space
Technical Specifications
| Configuration | 3-way horn-loaded triaxial, weather-resistant |
| Operating range | 70 Hz - 16 kHz |
| Power handling | 400W continuous, 1000W program |
| Sensitivity (1W/1m) | 107 dB (80 Hz-16 kHz); 109 dB (speech range) |
| Max output | 133 dB SPL / 139 dB peak |
| Nominal impedance | 4 ohms |
| Nominal beamwidth | 50 H x 20 V |
| Drivers | LF 2 x 12"; MF 1 x M200 2" exit; HF 1 x 1" exit titanium |
| Environmental | IEC529 IP55W with minimum 5-degree downward aim |
| Certification | EN 54-24 |
| Dimensions (H x W x D) | 24.75" x 24.75" x 30.75" (629 x 629 x 781 mm) |
| Warranty | Biamp 5-year warranty |
Frequently Asked Questions
What applications is the R2-52Z (EN 54-24) designed for?
It suits commercial install-sound venues such as houses of worship, auditoriums, and multi-purpose rooms.
How is it mounted?
It mounts using the model's rigging or bracket provisions and should be installed by a qualified AV integrator following Biamp guidance.
What power handling does it have?
Power handling is 400W continuous, 1000W program.
Does it require external processing?
For best performance, use the Community-provided loudspeaker presets and an appropriate DSP or amplified loudspeaker controller.
What is the warranty?
It is covered by the Biamp 5-year warranty.
