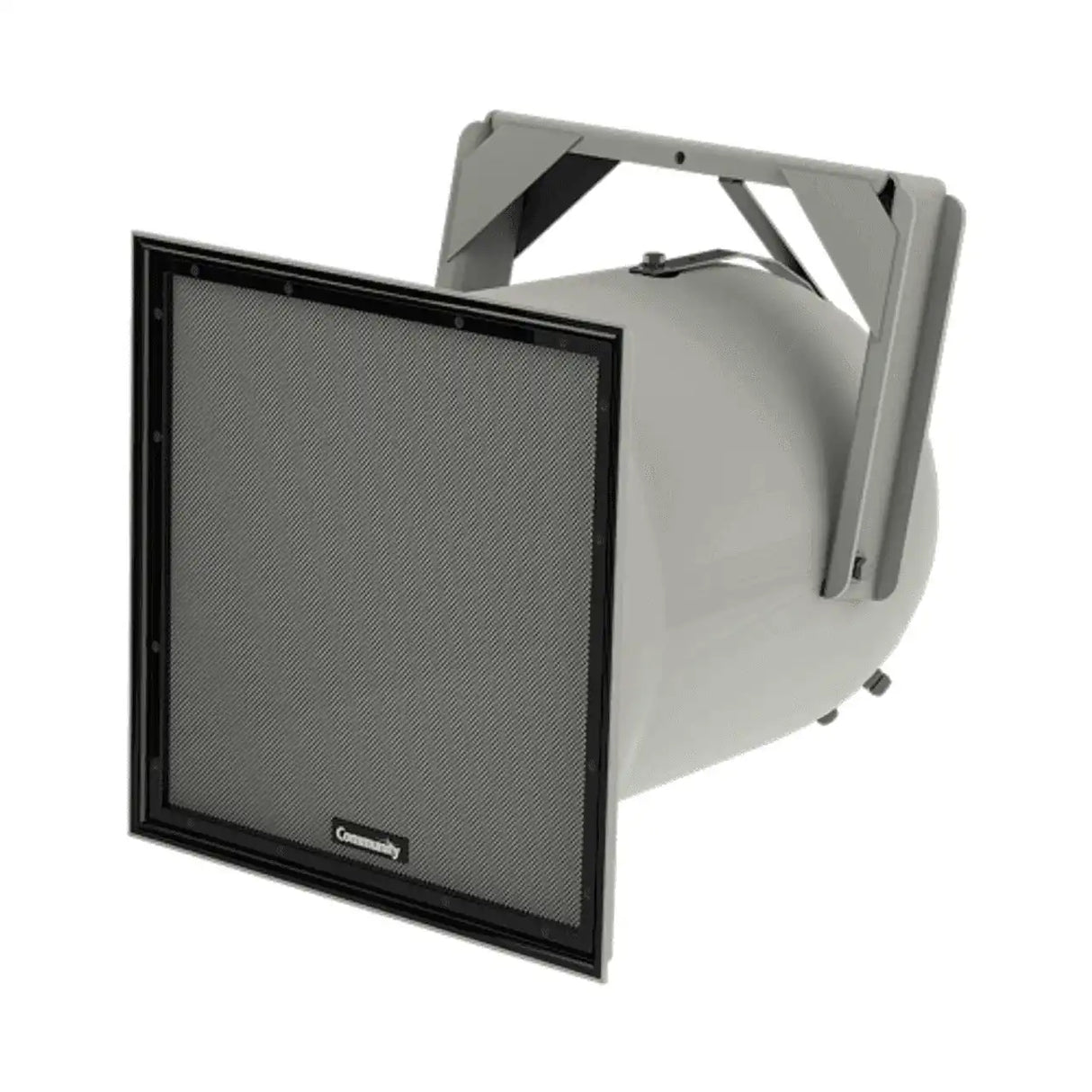

Biamp Community R2-474Z Full-Range 3-Way Dual 12-Inch High Output Horn Loaded 40-70 X 40 Speaker (w/ EN 54-24 certification) - 911.1273.900

The R2-474Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.

The R2-474Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.

Features

• Weather-resistant construction
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• 3-layer Weather-Stop grille
• Application-specific coverage pattern
• High-efficiency horn loading
• High-fidelity, full-range reproduction of music and speech
• Included weather-resistant mounting yoke for easy mounting and aiming

Specifications

• Loudspeaker Type: 3-way horn loaded triaxial, weather-resistant
• Operating Range:
• 70 Hz to 16 kHz
• 70 Hz to 10 kHz (+/- 5 dB)
• Max Input Ratings:
• 400W continuous, 1000W program
• 40 volts RMS, 89 volts momentary peak
• Recommended Power Amplifier: 830W to 1200W @ 4 Ohms
• Sensitivity (1W/1m):
• 106 dB SPL (80 Hz to 16 kHz 1/3 octave bands)
• 107 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 132 dB SPL / 139 dB SPL (peak)
• Nominal Impedance: 4 Ohms
• Minimum Impedance: 2.9 Ohms @ 260 Hz
• Nominal –6dB Beamwidth:
• 40° - 70° H (+8° / -13°, 1.25 kHz to 10 kHz)
• 40° V (+10° / -8°, 1.25 kHz to 10 kHz)
• 100° H x 100° V (400 Hz)
• Axial Q / DI: 26.9 / 14.3, 1.25 kHz to 10 kHz
• Crossover Frequency: 600 Hz / 3.5 kHz
• Recommended Signal Processing: 70 Hz high pass filter
• Drivers:
• LF: 2x 12" weather-treated, Ferrofluid-cooled
• MF: 1x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled
• HF: 1x 1" exit, titanium diaphragm
• Driver Protection: DYNA-TECH protection circuitry
• Input Connection: 12 ft (4 m) SJOW #16 gauge
• Controls: None
• Enclosure: Hand-laminated fiberglass, light grey gel coat
• Mounting/Rigging Provisions: (5) 1/2-13 rigging points
• Grille: 3-layer WeatherStop, light grey (Zinc-richepoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
• Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
• Required Accessories (not included): 70 Hz high pass filter
• Supplied Accessories: Weather-resistant mounting yoke, light grey
• Optional Accessories (not included): TRC400 400-watt 70/100/140-volt transformer
• Dimensions: 24.75" H x 24.75" W x 30.75" D (629 x 629x 781 mm)
• Weight: 96 lbs (43.5 kg)
