Biamp Community R1-64Z-EN R1-64Z with EN 54-24 certification
Product Overview

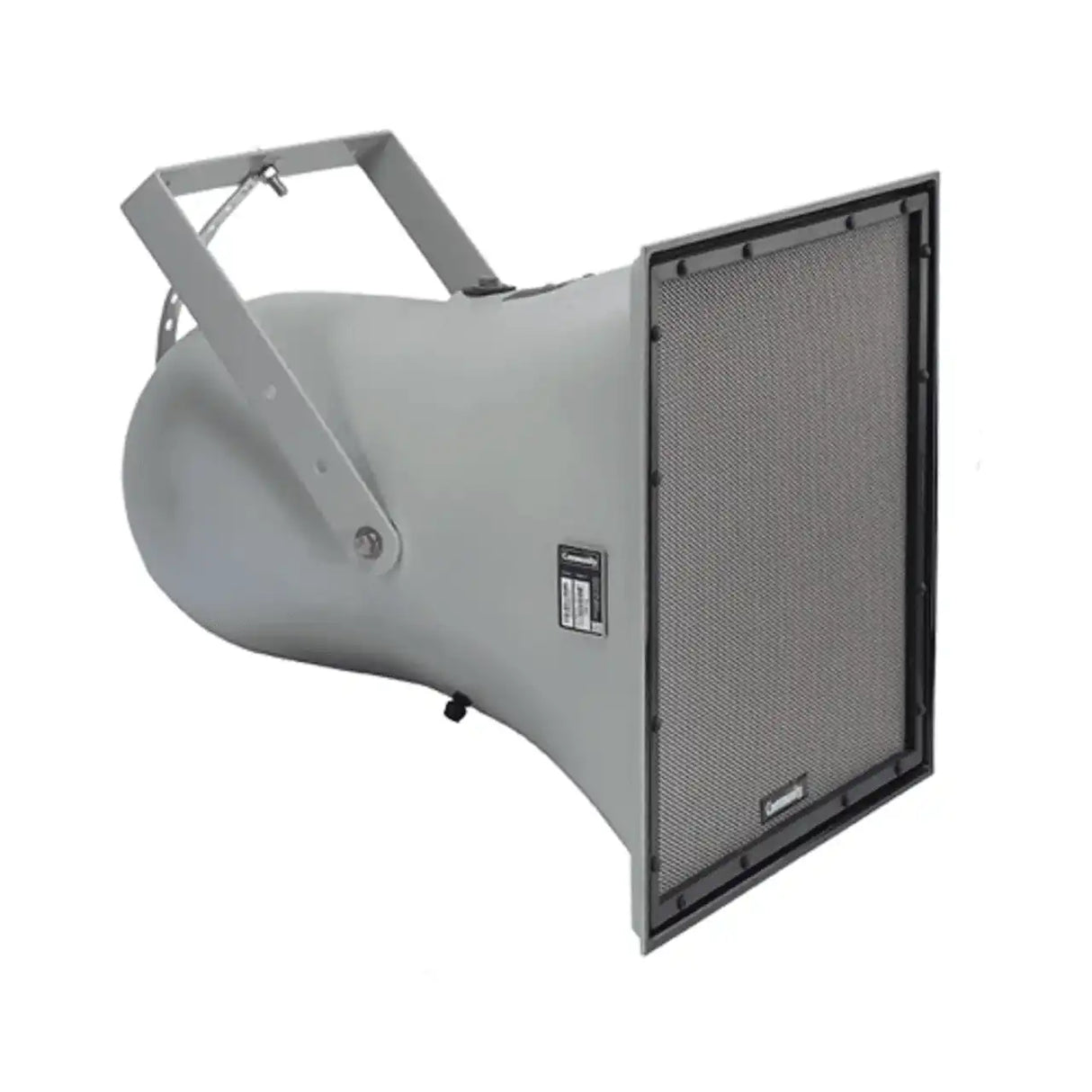

The Biamp Community R1-64Z-EN is an EN 54-24 certified, large-format 12-inch 2-way horn-loaded coaxial loudspeaker. It offers very high sensitivity with low-frequency directivity control to 400 Hz, delivering strong projection and intelligibility. It is engineered for highly reverberant indoor sports venues and small-to-mid-sized outdoor stadiums, as well as houses of worship and large commercial spaces. Its weather-sealed, all-horn-loaded design suits demanding indoor and outdoor installations.
Product Description
The EN 54-24 certified R1-EN offers very high sensitivity with LF directivity control to 400 Hz; its large, deep LF horn and large-diaphragm 1-inch exit HF driver provide exceptional HF extension and LF output. The R1-64Z-EN two-way full-range loudspeaker system is engineered for quality full-range sound projection in outdoor and indoor applications, with wide range, smooth frequency response and high efficiency for high-fidelity music and clear, intelligible speech at very low distortion. It is an all horn-loaded coaxial design using precision Community fiberglass waveguides; the outer enclosure forms a double-wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The high-frequency horn assembly is mounted in the mouth of the bass horn, and a high-quality passive crossover with dynamic driver protection is included. The result is a loudspeaker that is strong, non-resonant, weather-resistant and easy to install.
Key Features
- EN 54-24 certified — Certified to EN 54-24 for voice-alarm and life-safety sound reinforcement.
- Coaxial horn-loaded design — All horn-loaded coaxial design provides high sensitivity and pattern control to 400 Hz.
- Weather-sealed chamber — Double-wall construction provides a completely weather-sealed chamber for the LF drivers.
- Dynamic driver protection — Includes a high-quality passive crossover with dynamic driver protection.
- Durable construction — Strong, non-resonant, weather-resistant enclosure that is easy to install.
Typical Applications
- House of worship
- Auditorium
- Government space
- Commercial meeting space
Technical Specifications
| Type | 2-way horn-loaded coaxial, weather-resistant, EN 54-24 certified |
| Pattern Options | 60° x 40°, 60° x 60°, or 90° x 40° |
| LF Directivity Control | To 400 Hz |
| HF Driver | 1-inch exit, large diaphragm |
| LF Section | 12-inch driver in deep LF horn |
Frequently Asked Questions
Is the R1-64Z-EN certified for voice alarm use?
Yes. This model carries EN 54-24 certification for voice-alarm and life-safety sound-reinforcement applications.
Where is the R1-64Z-EN best used?
It is well suited to highly reverberant indoor sports venues and small-to-mid-sized outdoor stadiums, as well as houses of worship and large commercial spaces.
Is it weather resistant?
Yes. Its double-wall, all horn-loaded construction provides a weather-sealed chamber for the LF drivers.
