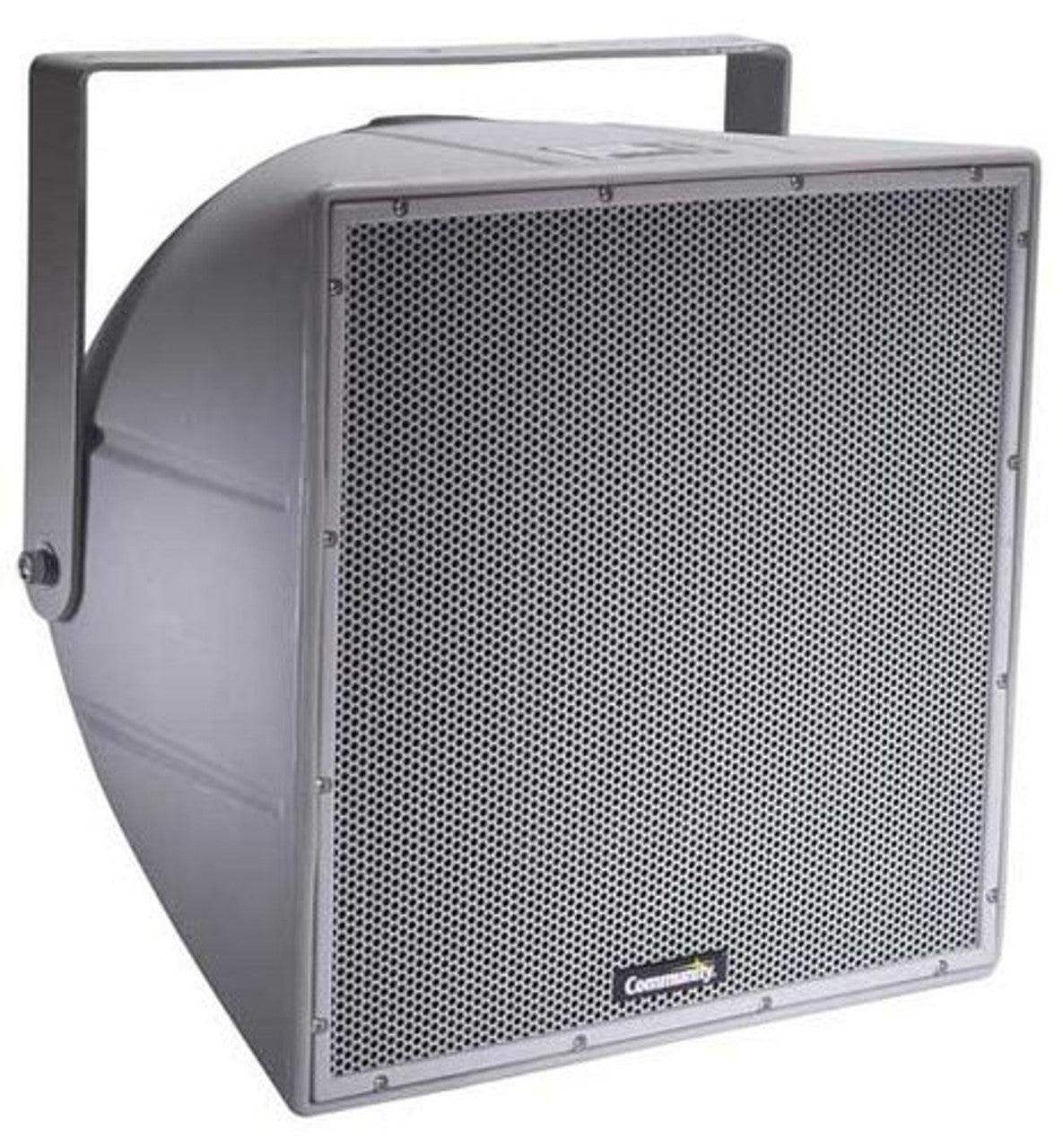

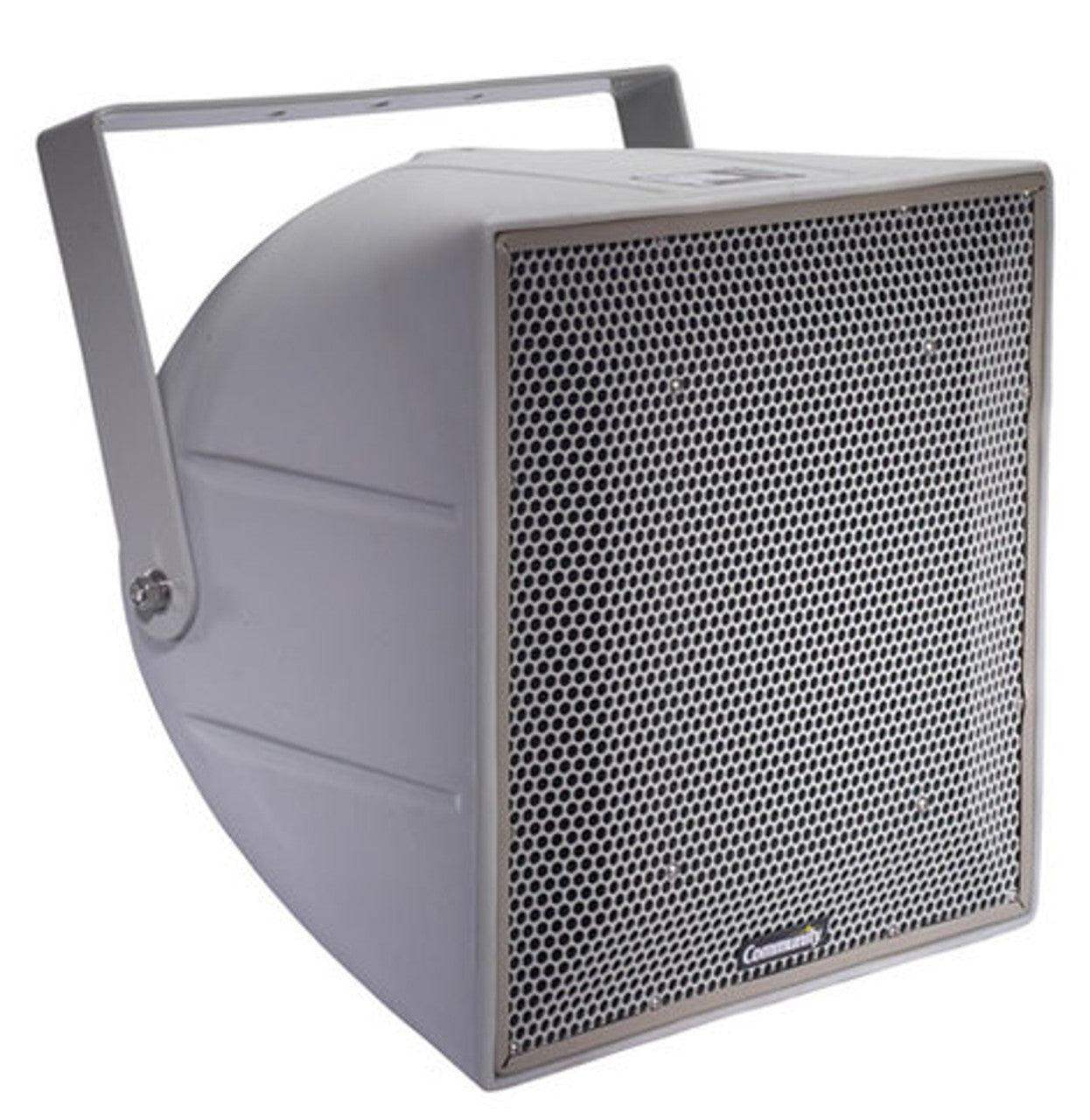

Biamp Community R.5HPT-R Full-Range 3-Way 12-Inch Horn Loaded 60 X 40 Grey 70V/100V (Racing)

The R.5HPT-R is a custom version of Community’s popular R.5HP loudspeaker, with the high frequency driver mounted 20° vertically. It was specially designed for racetrack catch fence systems. A uniquely shaped grille accommodates the high frequency driver’s position.

The R.5HPT-R is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a compact design. By packaging Community's well-known M200 mid-range driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HPT-R can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously.

Applications

• Specially designed for racetrack catch fence systems

Features

• High frequency driver mounted 20 degrees vertically
• Weather-resistant, rotomolded UV enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and yoke
• Pattern control down to 630 Hz
• High efficiency
• High power passive crossover
• Included yoke mounting bracket

Specifications

• Loudspeaker Type: 3-way, horn-loaded coaxial, weather-resistant
• Operating Range:
• 90 Hz to 16 kHz
• 125 Hz to 12500 Hz (+/- 6 dB)
• Max Input Ratings: 200W, 70/100V
• Recommended Power Amplifier:
• 25W to 200W @ 70 Volts
• 50W to 200W @ 100 Volts
• Sensitivity (1W/1m):
• 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
• 106 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output on 200W Tap: 128 dB SPL
• 200W Nominal Impedance: 25 Ohms
• 200W Minimum Impedance: 12.1 Ohms @ 11 kHz
• Nominal –6dB Beamwidth:
• 60° H (+32° / -17°, 2 kHz to 10 kHz)
• 40° V (+33° / -1°, 2 kHz to 10 kHz)
• Axial Q / DI: 20.5 / 13.1, 2 kHz to 12.5 kHz
• Crossover Frequency: 600 Hz / 4 kHz
• Recommended Signal Processing: 70 Hz high pass filter
• Drivers:
• LF: (1) 12" weather-treated, Ferrofluid-cooled
• MF: (1) M200, Ferrofluid-cooled
• HF: (1) 1" exit, titanium-free, Ferrofluid-cooled
• Driver Protection: None
• Input Connection: 12ft (4 m) UV-resistant #18 gauge multi-conductor cable
• Controls: None
• Physical:
• Dimensions (HxWxD): 16" x 16" x 16.187" (406.4 x 406.4 x 411.15mm)
• Weight:
• Product: 45.5 lbs (20.6 kg)
• Shipping: 52 lbs (23.6 kg)
• Enclosure: Rotomolded LLDPE in Light Grey
• Grille: 3-layer WeatherStop, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
• Mounting/Rigging Provisions: (5) 3/8-16 rigging points
• Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
• Required Accessories: None
• Supplied Accessories:
• (1) Yoke bracket, Light Grey
• (1) Aiming strap
• Optional Accessories (sold separately): PMB Series pole mount brackets
