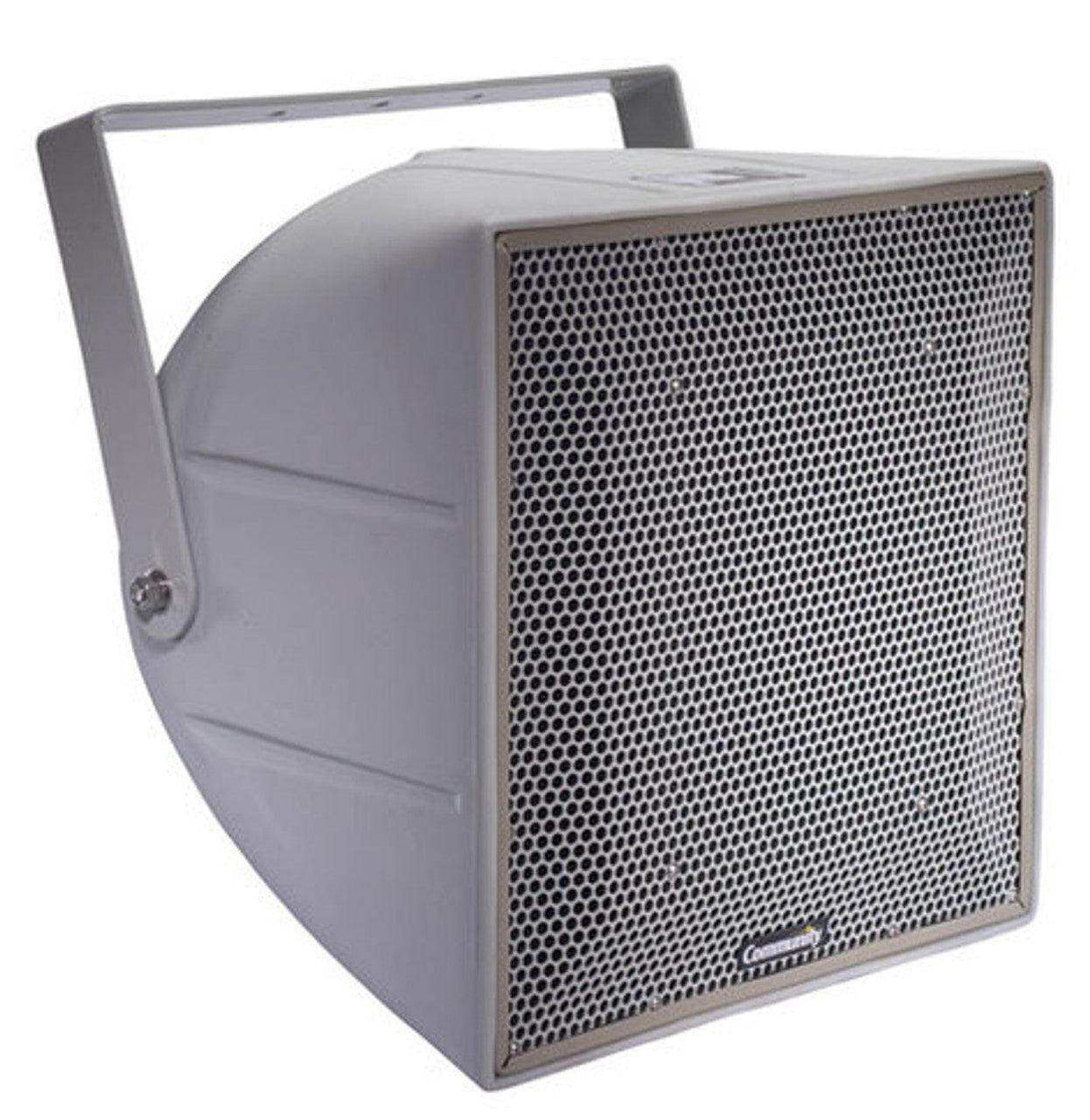

Biamp Community R.5HP Full-Range 3-Way 12-Inch Horn Loaded 60 X 40 Speaker (Grey)

The R.5HP is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously.

Features

• Weather-resistant, rotomolded UV enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• Pattern control down to 630 Hz
• High efficiency
• Integral mounting points
• High power passive crossover

Specifications

• Loudspeaker Type: 3-way, horn loaded coaxial, weather-resistant
• Operating Range:
• 90 Hz to 16 kHz
• 125 Hz to 12500 Hz (+/- 6 dB)
• Max Input Ratings: 200W continuous, 500W program, 35 volts RMS, 77 volts momentary peak
• Recommended Power Amplifier: 420W to 600W @ 6 ohms
• Sensitivity (1W/1m): 106 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 107 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 129 dB SPL / 136 dB SPL (peak)
• Nominal Impedance: 6 Ohms
• Minimum Impedance: 3.2 Ohms @ 11220 Hz
• Nominal –6dB Beamwidth: 60° H (+32° / -17°, 2 kHz to 10 kHz); 40° V (+33° / -1°, 2 kHz to 10 kHz)
• Axial Q / DI: 20.5 / 13.1, 2 kHz to 12.5 kHz
• Crossover Frequency: 600 Hz / 4 kHz
• Recommended Signal Processing: 70 Hz high pass filter
• Drivers:
• LF: (1) 12” weather treated, Ferrofluid-cooled
• MF: (1) M200, Ferrofluid-cooled
• HF: (1) 1” exit, titanium free, Ferrofluid-cooled
• Driver Protection: None
• Input Connection: 12 foot (4 m) SJOW #16 gauge
• Controls: None
• Enclosure: Rotomolded LLDPE, light grey
• Mounting/Rigging Provisions: (5) 3/8-16 rigging points
• Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
• Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
• Required Accessories: None
• Supplied Accessories:
• (1) Yoke bracket, light grey
• (1) Aiming strap
• Optional Accessories:
• TRC400 transformer (400W 70/100/140V)
• PMB Series pole mount brackets
• Dimensions:
• Height: 16 inches (406.4 mm)
• Width: 16 inches (406.4 mm)
• Depth: 16.187 inches (411.15 mm)
• Weight: 42.3 lbs (19.2 kg)
