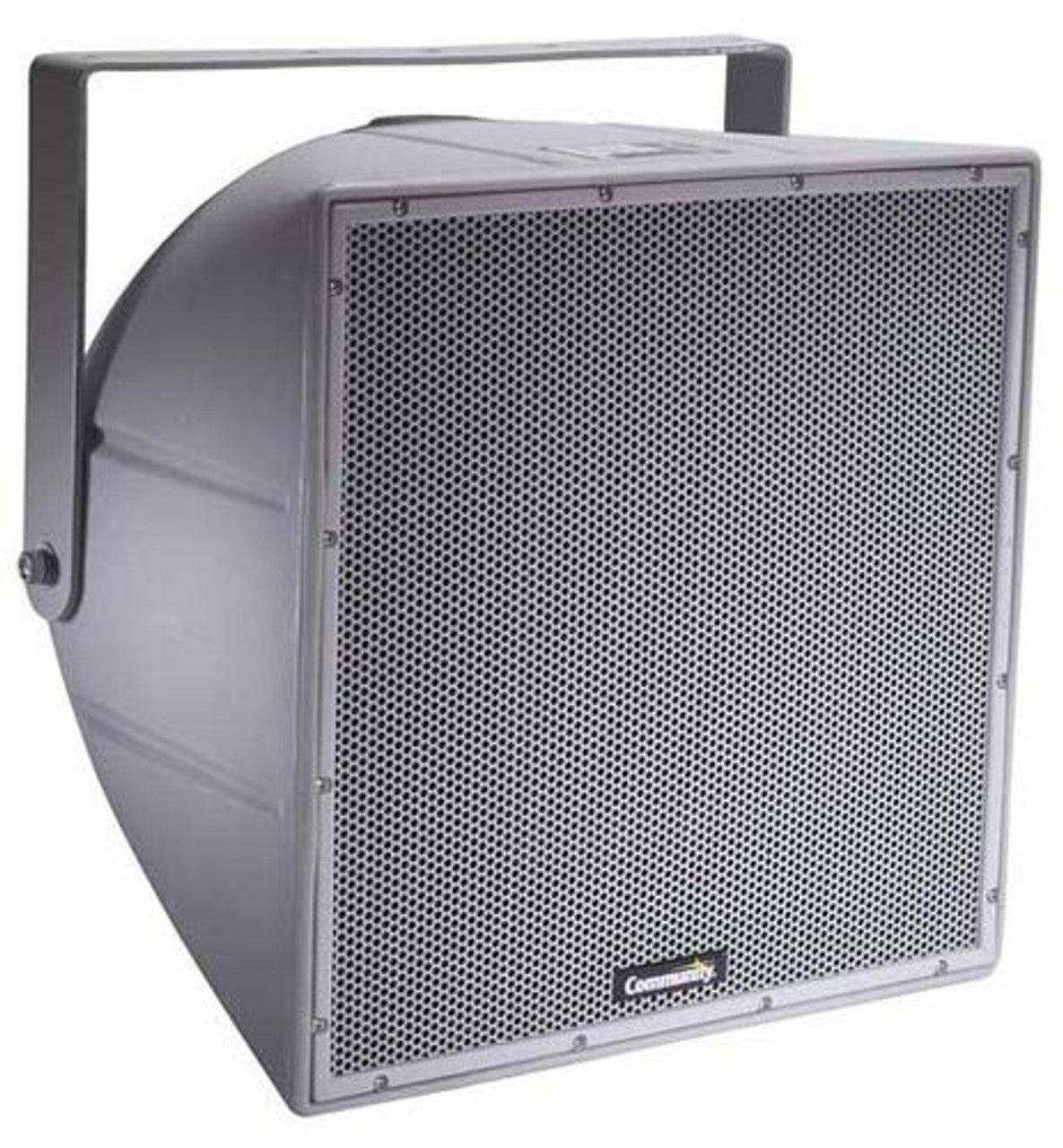

Biamp Community R.5COAX99 Full-Range 2-Way 12-Inch Coax 90 X 90 Speakers (Grey) - 911.1258.900
Biamp Community R.5COAX99 Full-Range 2-Way 12-Inch Coax 90 X 90 Speakers (Grey) - 911.1258.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Biamp Community R.5COAX99 Full-Range 2-Way 12-Inch Coax 90 X 90 Spe...
The R.5COAX99 high fidelity, two-way, full-range loudspeaker system is engineered to provide quality full-range sound in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.
Applications
- Convention centers
- Fill speaker for stadiums, athletic fields, arenas and race tracks
- Outdoor background music/paging systems
- Theme and amusement parks
- Fairgrounds, rodeos, air shows
- Malls, cruise ships, skating rinks
- Swimming pools
- Portable sound systems
Includes
- (1) R.5COAX99 unit
- (1) Yoke bracket, Light Grey
- (1) Aiming strap
Features
- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- High fidelity
- High efficiency
- Integral mounting points
- High power passive crossover
- Optional 200W, 70V autoformer (sold separately)
Specifications
- Loudspeaker Type: 2-way, coaxial, weather-resistant, full-range
- Operating Range:
- 80 Hz to 18 kHz
- 90 Hz to 12.5 kHz (±3.5 dB)
- Max Input Ratings:
- 200W continuous, 500W program
- 40 volts RMS, 89 volts momentary peak
- Recommended Power Amplifier: 420W to 600W @ 8 ohms
- Sensitivity (1W/1m):
- 96 dB SPL (100 Hz to 13 kHz 1/3 octave bands)
- 96 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output: 119 dB SPL / 126 dB SPL (peak)
- Nominal Impedance: 8 ohms
- Minimum Impedance: 3.8 ohms @ 9.9 kHz
- Nominal –6dB Beamwidth:
- H: 90° (+10° / -23°, 1.6 kHz to 12.5 kHz)
- V: 90° (+4° / -30°, 1.6 kHz to 12.5 kHz)
- Axial Q / DI: 10.7 / 10.3, 1.6 kHz to 12.5 kHz
- Crossover Frequency: 2 kHz
- Recommended Signal Processing: 60 Hz high pass filter
- Drivers:
- LF: 1 x 12”
- HF: 1 x 1” exit titanium free, Ferrofluid-cooled
- Driver Protection: DYNA-TECH protection circuitry
- Input Connection: 12 foot (4 m) SJOW #16 gauge
- Enclosure: Rotomolded LLDPE, Light Grey
- Mounting/Rigging Provisions: (5) 3/8-16 rigging points
- Grille: 3-layer WeatherStop, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Dimensions (HxWxD): 16" x 16" x 15.94" (406.4 x 406.4 x 404.88mm)
- Weight:
- Product: 35 lbs (15.9 kg)
- Shipping: 42 lbs (19.1 kg)
- Required Accessories: 24 dB/Oct high pass filter (contact your Sales Pro for more details)
- Optional Accessories (sold separately): PMB Series pole mount brackets
