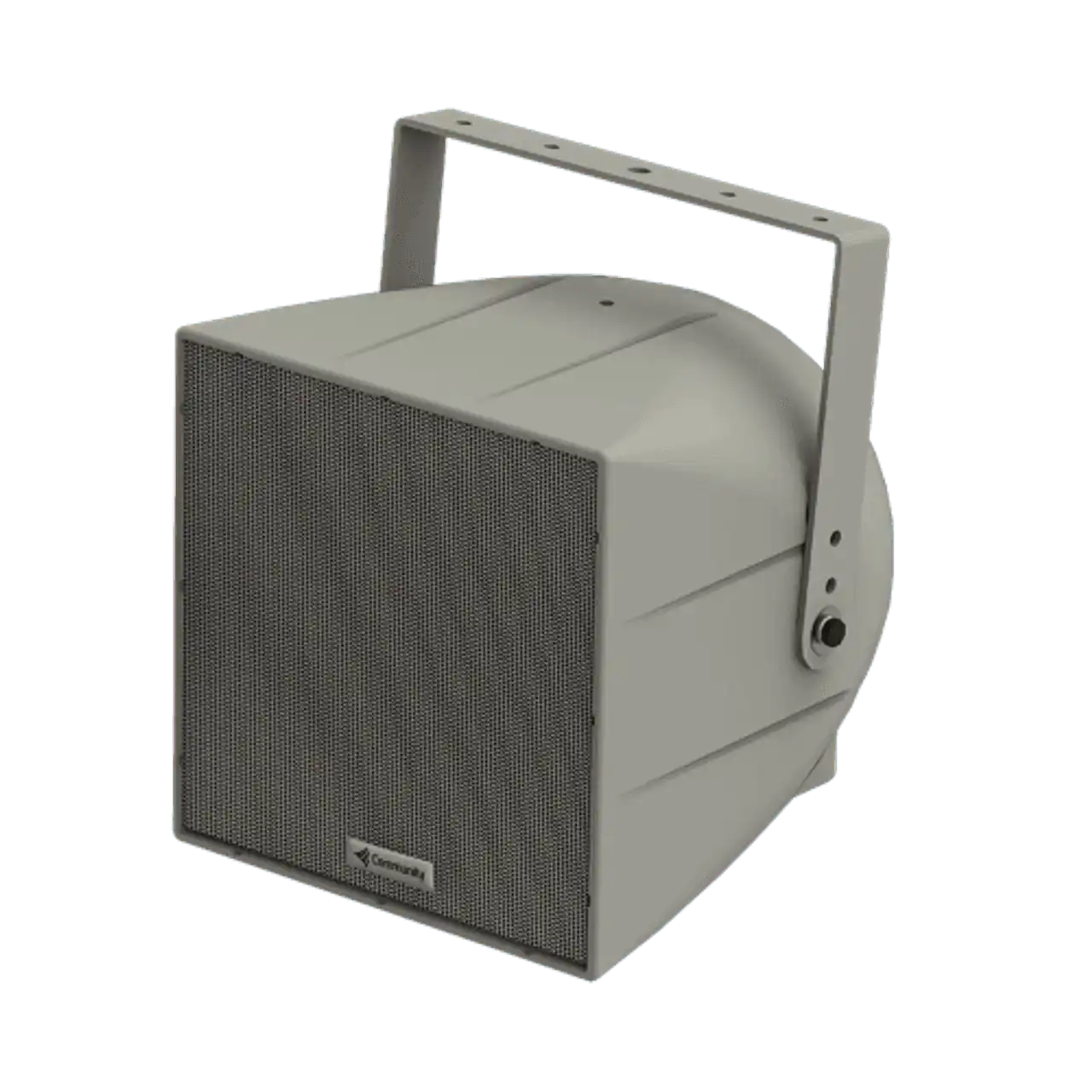

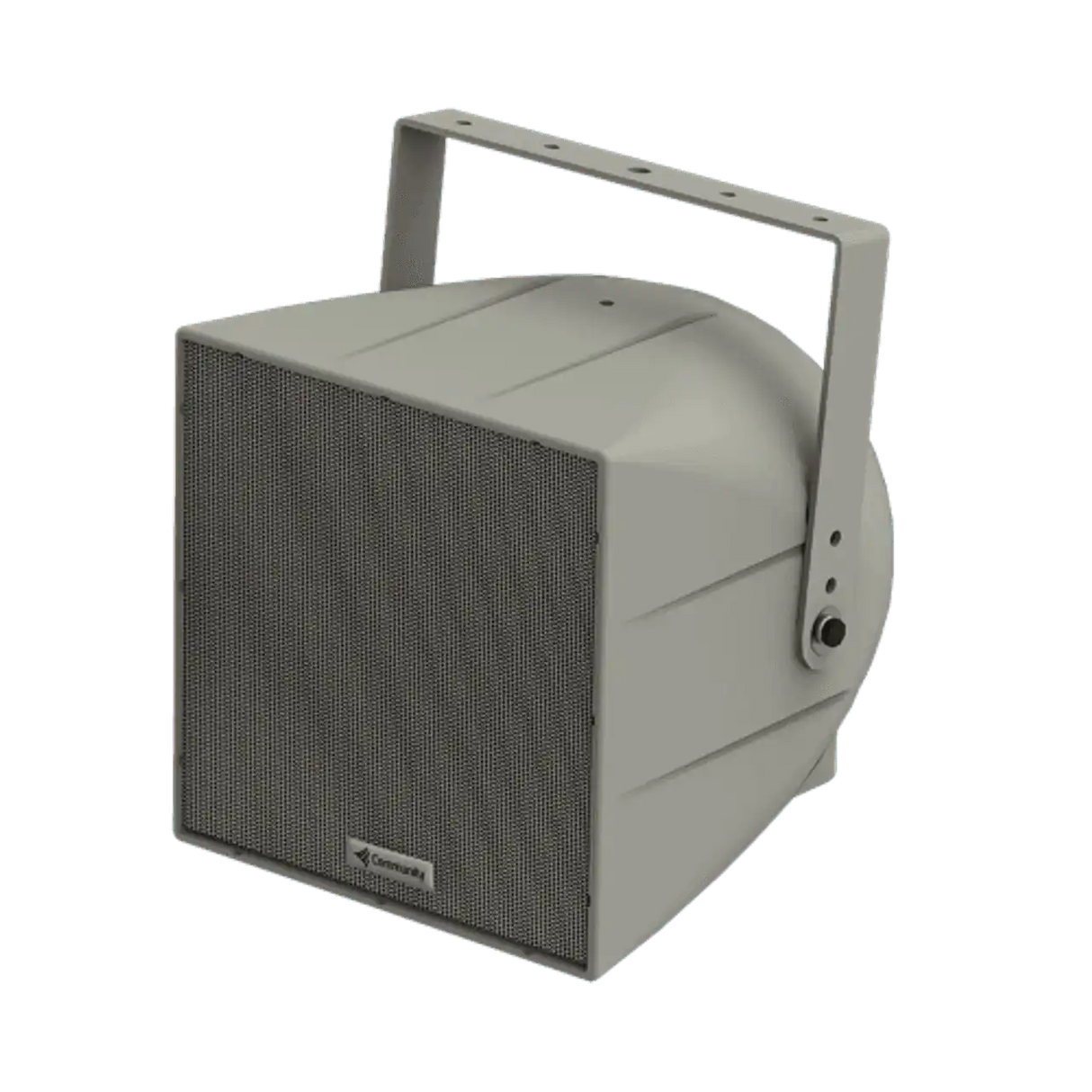

Designed for use in voice-range sound reinforcement and announcement/signaling applications, the Community R.5-V2200 is a complete horn/driver system that provides focused, very high output sound projection, with predictable performance, and remarkable long-term durability.
The horn portion of the assembly is a patented, hand-crafted one piece focused Array waveguide, precision molded in hand-laminated reinforced fiberglass, delivering optimum performance. The fiberglass horn is enclosed in a roto-molded polyethylene enclosure that provides weather and UV resistance, and incorporates a Weather-Stop grille. The resulting inherent strength and rigidity of the system's construction enhances sonic efficiency by preventing sound energy loss, and offers a highly weather-resistant installed loudspeaker system.
The compression drivers are high-output, high-sensitivity loudspeakers configured with the diaphragm facing forward, isolating the voice coil and magnetic structure of each driver from the environment. The one-piece, non-metallic diaphragm/suspension gives exceptional resistance to the effects of humidity, dust, and corrosive atmospheres. A fiberglass rear cover protects the drivers from the effects of weather and corrosion.
- Industrial Paging
- Large Public Gatherings
- Voice Alert Systems
- Tone Signaling
- R.5-V2200 unit
- SSYR5 Yoke bracket, dual layer powder-coated steel
- 2" (51 mm) Throat Exit x 2
- High Efficiency
- High Power Output
- Non-metallic Diaphragms
- Highly Resistant to Harsh Environments
- Loudspeaker Type: Dual Driver, PC Horn-loaded, Weather-Resistant Loudspeaker for High Level Paging
- Operating Range: 450 Hz - 8 kHz
- Usable LF Limit: 400
- Max Input Ratings:
- 150W continuous, 400W Program; 30 volts RMS, 69 volts momentary peak
- Recommended Power Amplifier: 330W to 480W @ 6 Ohms
- Flare Rate: 360 Hz
- Throat Entrance Diameter: 2 x 2"
- Axial Sensitivity 1W/1m: 114 dB SPL (400 Hz - 4 kHz 1/3 octave bands with 2 x M200 driver)
- Maximum Output: 136 dB SPL / 143 dB SPL peak (with 2 x M200 driver)
- Nominal Impedance: 6 Ohms
- Min Impedance: 4.8 Ohms @ 400 Hz
- Nominal -6 dB Beamwidth:
- Horizontal: 80° (+5° / -17°, 1600 Hz - 4000 Hz)
- Vertical: 40° (+9° / -17°, 1600 Hz - 4000 Hz)
- Axial Q: 20.5
- Axial DI: 13.1
- Recommended Signal Processing:
- 400 Hz high pass filter (for 2 x M200 driver standalone)
- 8 kHz low pass filter (for 2 x M200 driver standalone)
- Construction: Hand-laminated, multi layer glass composite within a rotomolded polyethelene enclosure
- Dimensions (HxWxD): 16" x 16" x 16.2" (406.4 x 406.4 x 413mm)
- (without yoke): 36.1 lbs (16.4 kg)
- (with Yoke): 39.3 lbs (17.8 kg)
- Shipping: 44 lbs (20 kg)
- Required Accessories: Bandpass filtering
- Optional Accessories (sold separately): TRC400 Transformer
