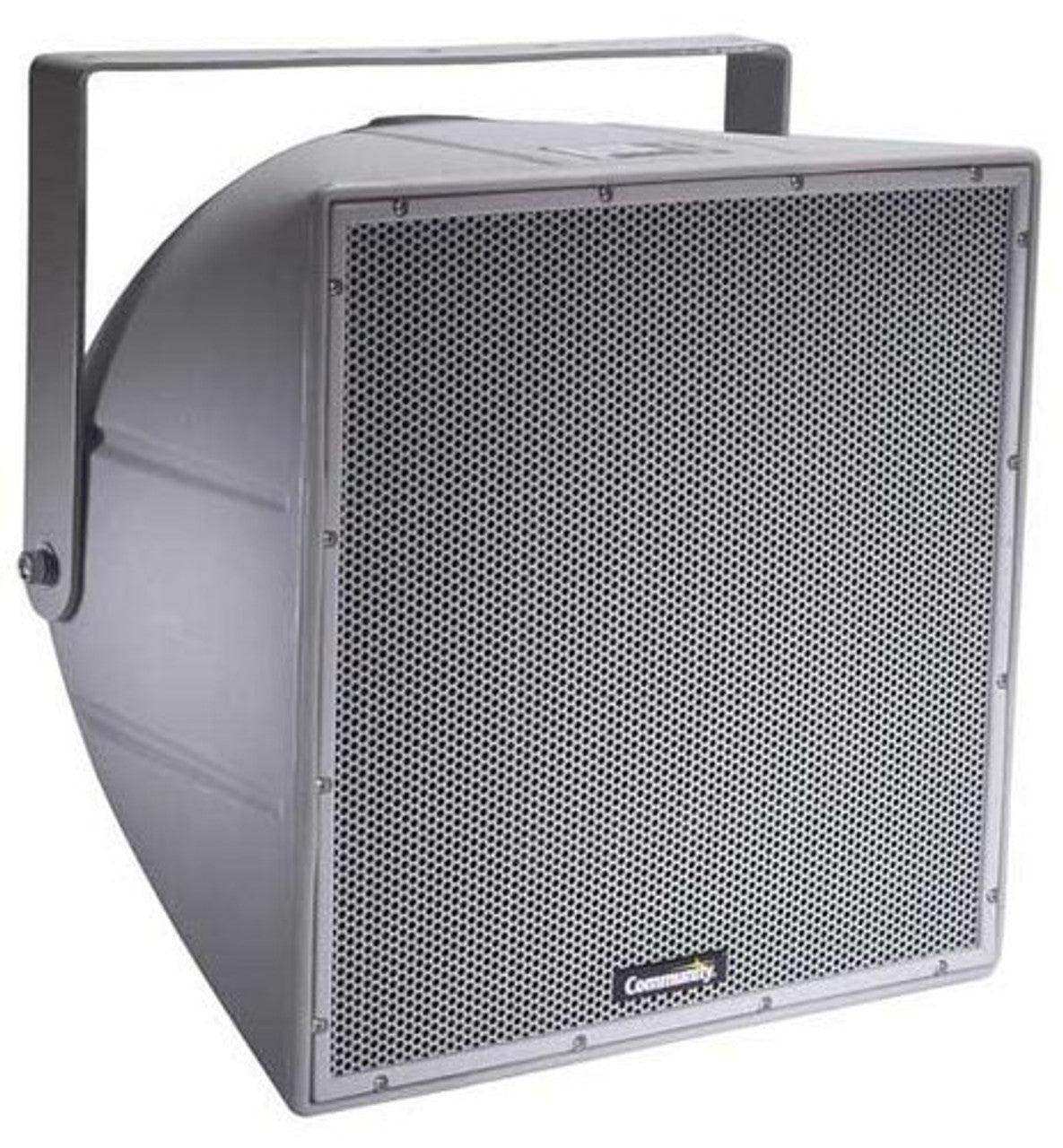

Biamp Community R.5-99Z Full-Range 2-Way 12-Inch Horn Loaded 90 X 90 Grey
Biamp Community R.5-99Z Full-Range 2-Way 12-Inch Horn Loaded 90 X 90 Grey is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community R.5-99Z Full-Range 2-Way 12-Inch Horn Loaded 90 X 9...
Product Overview
The Biamp Community R.5-99Z is a weather-resistant two-way, full-range 12-inch horn-loaded coaxial loudspeaker with 90 x 90 dispersion. It delivers high-efficiency, high-fidelity music and clear speech for indoor and outdoor sound reinforcement and paging. Relevant searches include outdoor weather-resistant loudspeaker, 12-inch coaxial loudspeaker, and horn-loaded full-range speaker.
Product Description
The R.5-99Z two-way, full-range loudspeaker is engineered to provide quality full-range sound projection across a variety of outdoor and indoor applications. Its wide range, smooth frequency response, and high efficiency ensure both high-fidelity music reproduction and clear intelligible speech with very low distortion. The rotomolded UV-resistant enclosure, weather-treated drivers and crossovers, and corrosion-resistant powder-coated steel grille and yoke make it suitable for demanding installations. It is backed by a five-year limited product warranty and a fifteen-year enclosure warranty.
Key Features
- Horn-loaded coaxial design — A 12-inch Ferrofluid-cooled LF driver and 1-inch titanium-free HF compression driver provide controlled pattern coverage.
- Weather-resistant enclosure — A rotomolded UV-resistant enclosure with 3-layer WeatherStop grille suits indoor and outdoor installation.
- DYNA-TECH protection — DYNA-TECH active protection circuitry guards the drivers during demanding use.
- High-power passive crossover — A high-power passive crossover with a 2 kHz crossover frequency manages driver handoff.
- Integral mounting — Five rigging points plus an included stainless steel yoke bracket and aiming strap simplify installation.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Government space
Technical Specifications
| Loudspeaker Type | 2-way, horn-loaded coaxial, weather-resistant |
| Operating Range | 85 Hz to 16 kHz |
| Nominal Beamwidth (H x V) | 90 H x 90 V |
| Crossover Frequency | 2 kHz |
| Max Input Ratings | 200W continuous, 500W program |
| Drivers | LF 1x 12" Ferrofluid-cooled; HF 1x 1" exit titanium-free Ferrofluid-cooled |
| Sensitivity (1W/1m) | 101 dB SPL |
| Maximum Output | 124 dB SPL / 131 dB peak |
| Minimum Impedance | 4.2 ohms @ 9.7 kHz |
| Driver Protection | DYNA-TECH |
| Grille | 3-layer WeatherStop |
| Enclosure | Rotomolded UV-resistant polyethylene |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Supplied Accessories | Yoke bracket; aiming strap |
| Finish | Light grey |
| Warranty | Biamp 5-year product / 15-year enclosure |
Frequently Asked Questions
Is the R.5-99Z suitable for outdoor use?
Yes. Its rotomolded UV-resistant enclosure, weather-treated drivers, and WeatherStop grille are engineered for outdoor and indoor installation.
What dispersion pattern does it provide?
It offers a nominal 90 x 90 coverage pattern.
Does it include 70V/100V capability?
No. This model is a low-impedance speaker; the matching 70V/100V autoformer version is offered separately.
