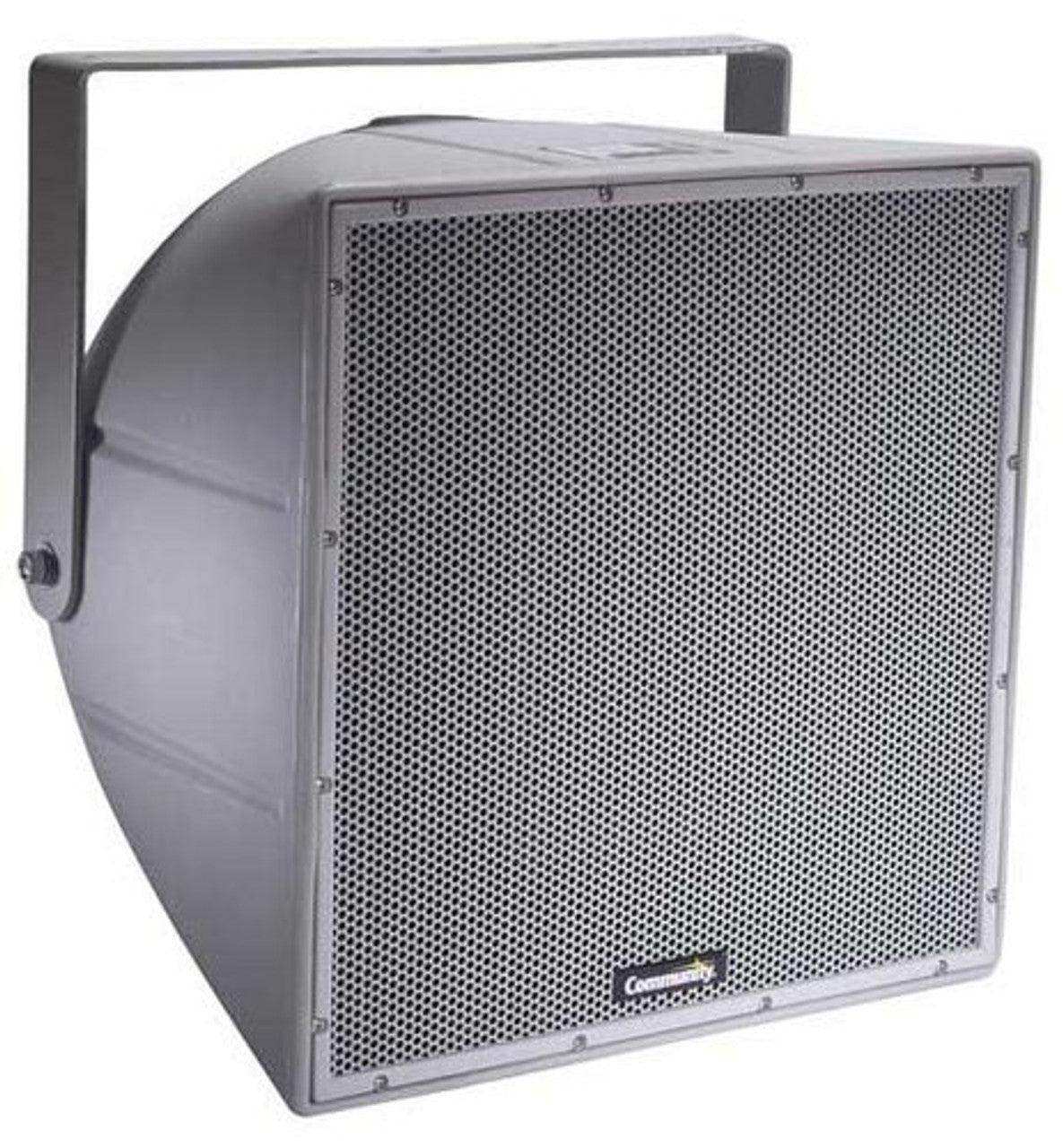

Biamp Community R.5-99TZ Full-Range 2-Way 12-Inch Horn Loaded 90 X 90 Grey 70V/100V Speaker

Community's R.5-99TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines.

Features

• Weather-resistant, roto-molded UV enclosure
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• Pattern control down to 630 Hz
• High efficiency
• Integral mounting points
• High power passive crossover
• DYNA-TECH protection circuitry
• Multi-tap 200W autoformer for 70V and 100V inputs

Specifications

• Loudspeaker Type: 2-way, horn-loaded coaxial, weather-resistant
• Operating Range:
• 85 Hz to 16 kHz
• 125 Hz to 10 kHz (+/-5dB)
• Max Input Ratings: 200W, 70V/100V
• Recommended Power Amplifier:
• 25W to 200W @ 70 Volts
• 50W to 200W @100 Volts
• Sensitivity (1W/1m):
• 100 dB SPL (125Hz to 10kHz 1/3 octave bands)
• 100 dB SPL (250Hz to 4kHz speech range)
• Maximum Output on 200W Tap: 123 dB SPL
• 200W Nominal Impedance: 25 Ohms
• 200W Minimum Impedance: 16.2 Ohms @ 8.6 kHz
• Nominal -6dB Beamwidth: 90° H (+2° / -43°, 1.6 kHz to 12.5 kHz); 90°V (+6° / -46°, 1.6 kHz to 12.5 kHz)
• Axial Q / DI: 13.6/11.3, 1.6 kHz to 10 kHz
• Crossover Frequency: 2 kHz
• Recommended Signal Processing: 90 Hz high pass filter
• Crossover Frequency: 2 kHz
• Recommended Signal Processing: 90 Hz high pass filter
• Drivers:
• LF: (1) 12" Ferrofluid-cooled
• HF: (1) 1" exit, titanium free, Ferrofluid-cooled
• Driver Protection: DYNA-TECH
• Input Connection: 12 foot SJOW #16 gauge
• Controls:
• 4 position autoformer TAP select switch
• 70V switchable taps @ 200W, 100W, 50W, 25W
• 100V switchable taps @ 200W, 100W, 50W
• Enclosure: Rotomolded LLDPE, light grey
• Mounting/Rigging Provisions: (5) 3/8-16 rigging points
• Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
• Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
• Required Accessories: 24 dB/Oct high pass filter
• Supplied Accessories:
• (1) Yoke bracket, light grey
• (1) Aiming strap
• Optional Accessories: PMB Series pole mount brackets
• Dimensions: 16" H x 16" W x 15.94" D
• Weight: 37 lbs
