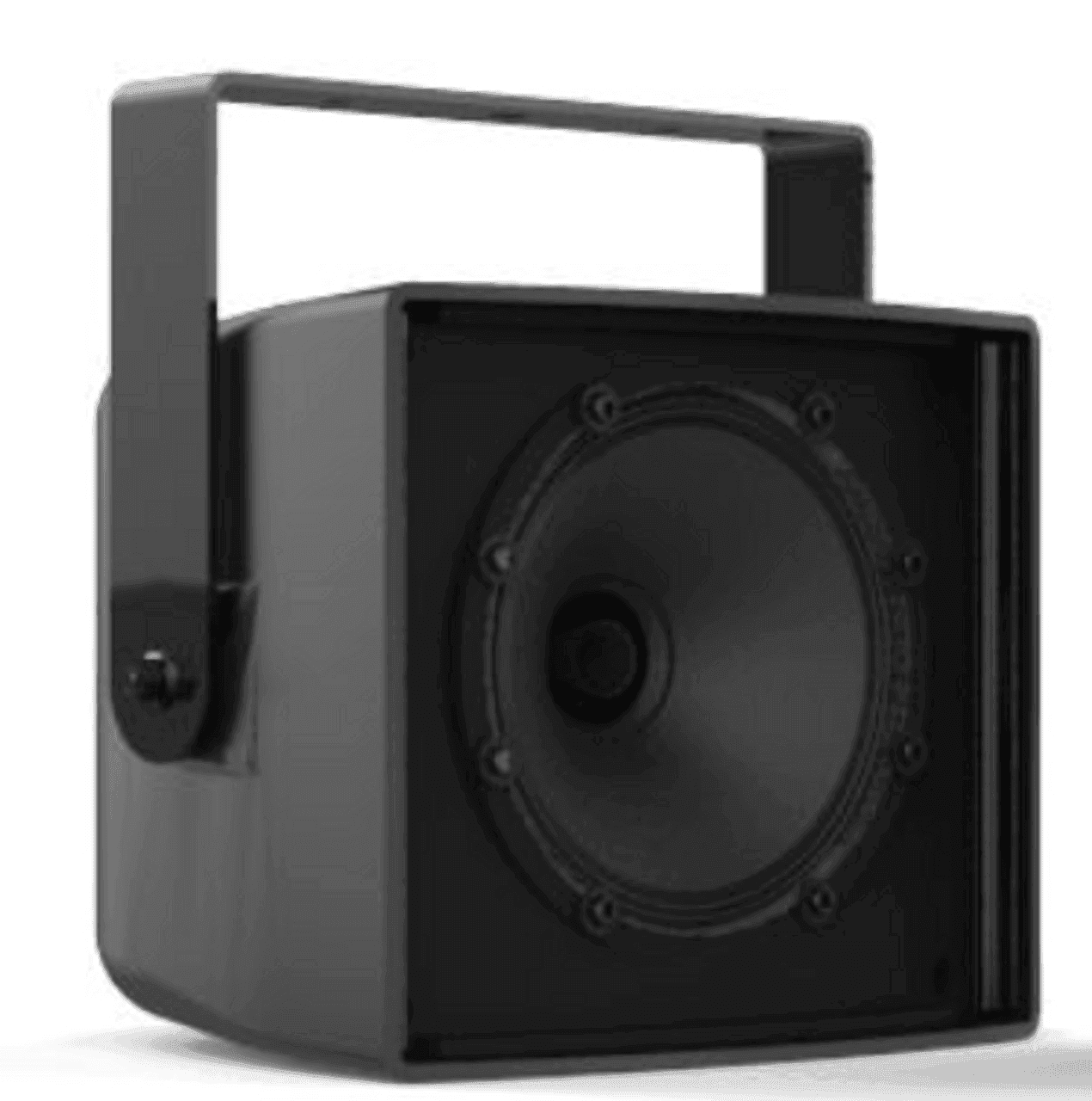

Biamp Community R.5-96MAX Full-Range 2-Way 12-Inch High Output 90 X 60 Speaker (Black) - 911.1250.900

Biamp SKU: 911.1250.900
No reviews

Price:
Sale price$3,082.00

Description

The R.5-96MAX from Community is a 2-way, full-range loudspeaker system designed to provide high-quality voice and music reproduction in applications requiring extreme weather resistance. It's engineered to withstand long-term exposure to tough, environmental conditions, while providing high-output performance.

It has a 1.4" (36mm) exit high-frequency (HF) compression driver and a 12" (305mm) cone 600 W neodymium low-frequency (LF) driver. The HF assembly is coaxially mounted with the LF driver allowing 90° x 60° coverage with low distortion. The system delivers a flat response with slightly rising HF.

  • Low-distortion, high-quality musicality, excellent speech intelligibility in a compact enclosure
  • High sensitivity, high output (130 dB max)
  • Weather-resistant, roto-molded UV resistant enclosure
  • Weather-resistant grille and drivers, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and yoke
  • Integral mounting points
  • System:
    • Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
    • Operating Range: 70 Hz to 20 kHz (-10 dB)
    • Frequency Response: 95 Hz to 20 kHz (-3 dB)
      • Operating range and frequency response parameters are stated with DSP equalization applied.
    • Max Input Ratings:
      • 600W RMS, 1200W Program
      • 69 volts RMS, 138 volts momentary peak
    • Maximum Output:
      • without EQ: 130 dB (136 dB Peak)
      • with EQ: 129 dB (135 dB Peak)
      • Calculated based on power rating and sensitivity, exclusive of power compression.
      • Recommended equalization as published in the Community Loudspeaker Library within Community's Resyn software.
    • Sensitivity (1 W / 1m) Free Space SPL:
      • 102 dB (125 Hz - 10 kHz)
      • 103 dB (250 Hz - 4 kHz)
      • Raw driver or system response prior to applying any filters for frequency response or power response correction.
      • Free field anechoic sensitivity, calculated using input voltage that would produce 1 W at the nominal impedance.
    • Nominal Impedance: 8 Ω, 4.8 Ω @ 200 Hz minimum
    • Nominal Beamwidth (-6 dB): 90° x 60°, 1.6 kHz to 10 kHz
    • Axial Q / DI: 13.8/11.4, 1.6 kHz to 10 kHz
    • Crossover Frequency: 900 Hz
    • Recommended Processing‡: DSP with CONEQ power response correction
      • ‡Community's dSPEC226 loudspeaker signal processor DSP and Resyn software include CONEQ 1000 point FIR filter power response correction filters within the preconfigured speaker file for this model of loudspeaker.
    • Recommended Amplifier: 1200 W to 1800 W at 8 Ω
  • Transducers:
    • LF: 1x 12" inherently weather-resistant cone with neodymium motor and aluminum demodulation ring
    • HF: 1x 1.4" exit compression, 2.87" Voice coil
  • Physical:
    • Input Connection: 12ft (3.6m) SJOW #16 gauge
    • Enclosure: Roto-molded LLDPE plastic
    • Mounting/Rigging Provisions: (5) 3/8"-16 rigging points; Steel zinc-rich epoxy dual-layer powder-coated bracket; Aluminum aiming strap to secure angle
    • Grille: 3-layer Weather-Stop™ with polyester mesh, foam, zinc-rich epoxy dual-layer powder-coated perforated steel color-matched to enclosure
    • Environmental: IEC529 IP55W rating with a minimum 5° down-tilt
    • Dimensions (H x W x D): 16" x 16" x 16.19" (406 x 406 x 411 mm)
    • Loudspeaker Unit Weight:
      • 44 lbs. (20 kg) loudspeaker only
      • 47 lbs. (21.3 kg) with yoke bracket
    • Shipping Weight: 51 lbs. (23.1 kg)
