Biamp Community R.5-96MAX Full-Range 2-Way 12-Inch High Output 90 X 60 Speaker (Grey) - 911.1249.900
Biamp Community R.5-96MAX Full-Range 2-Way 12-Inch High Output 90 X 60 Speaker (Grey) - 911.1249.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community R.5-96MAX Full-Range 2-Way 12-Inch High Output 90 X...
Product Overview

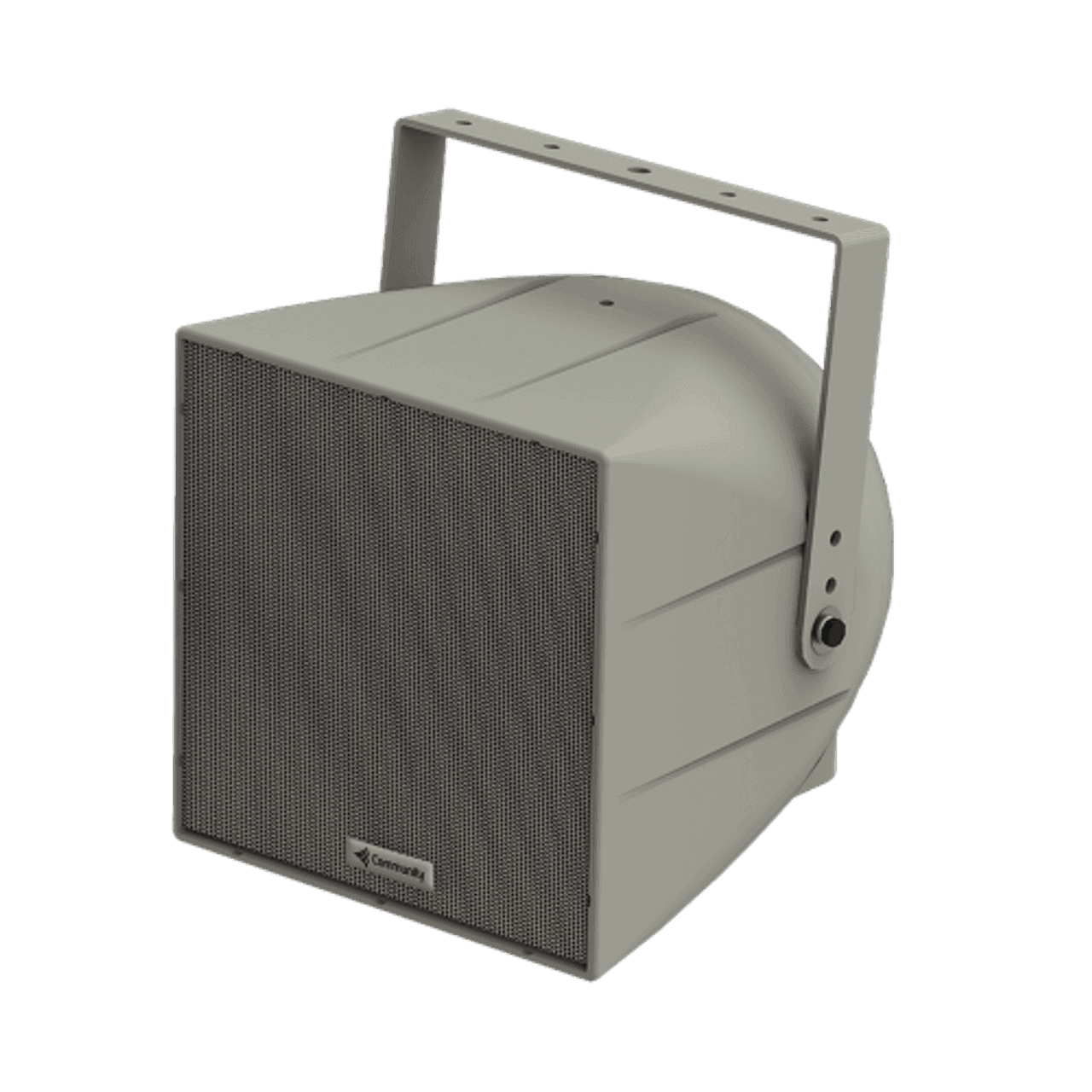

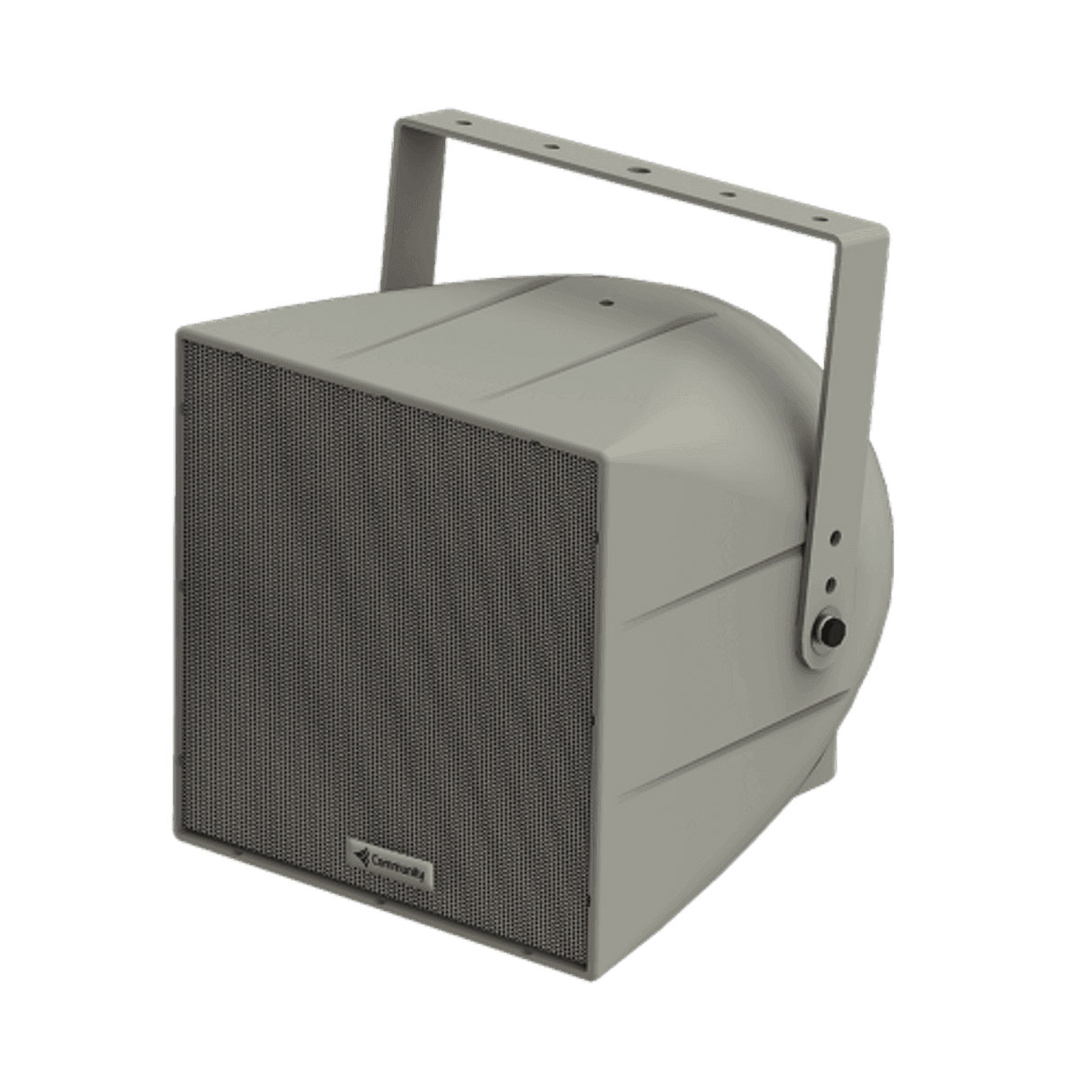

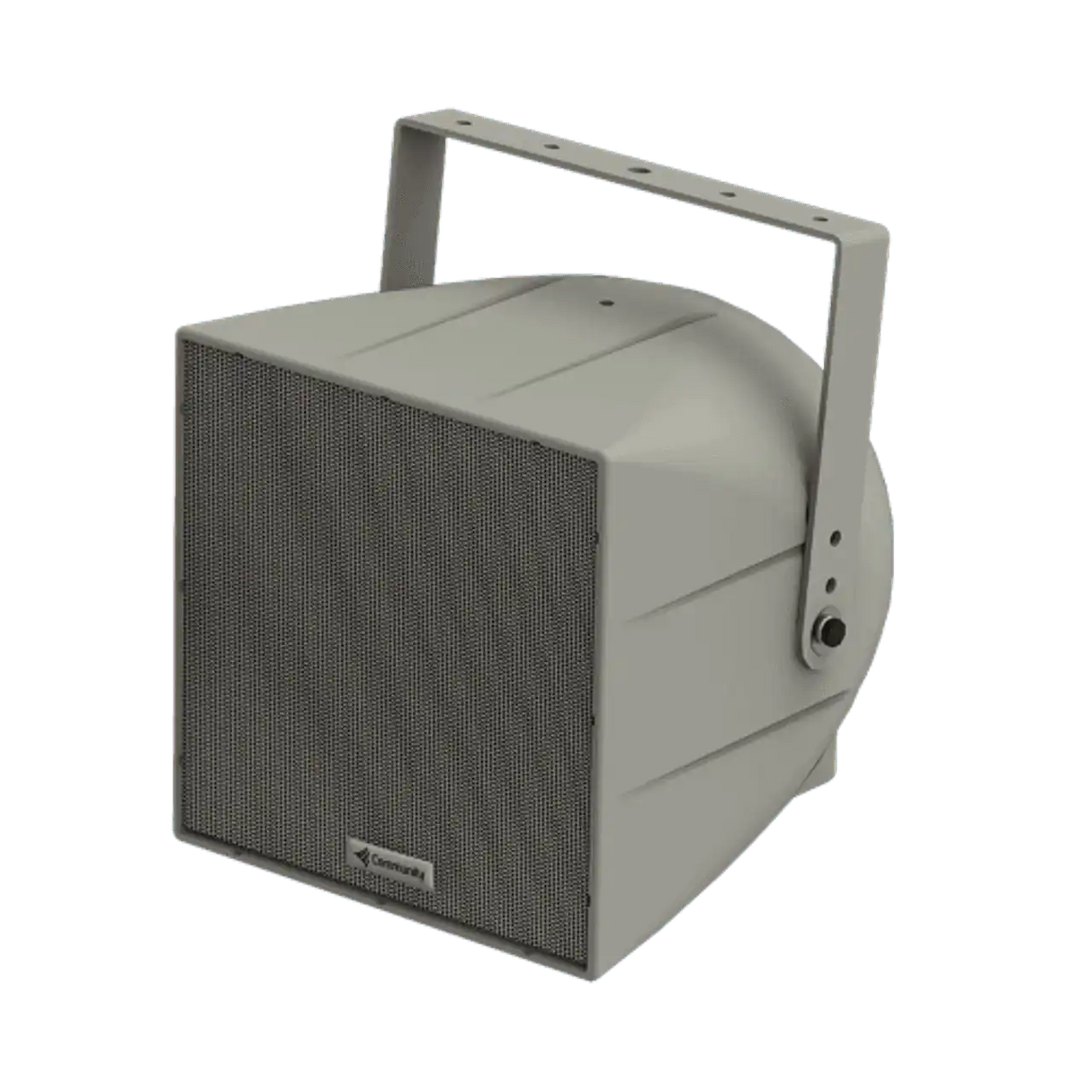

The Biamp Community R.5-96MAX is a high-output full-range 2-way 12-inch coaxial weather-resistant loudspeaker, finished in grey. With a 90° x 60° pattern and 600W RMS power handling, it delivers high-quality music and speech reproduction with up to 130 dB maximum output. It is engineered for houses of worship, auditoriums and outdoor commercial venues requiring extreme weather resistance. Its rotomolded UV-resistant enclosure withstands long-term environmental exposure.
Product Description
The R.5-96MAX is a two-way full-range loudspeaker designed for applications requiring extreme weather resistance, engineered to withstand long-term exposure while providing high output. It uses a 1.4-inch exit HF compression driver coaxially mounted with a 12-inch 600W neodymium LF driver, allowing 90° x 60° coverage with low distortion. The system delivers a flat response with slightly rising HF. It features a weather-resistant rotomolded UV-resistant enclosure, weather-resistant grille and drivers, and a moisture-sealed crossover, with a corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and yoke and integral mounting points.
Key Features
- High-output musicality — Low-distortion, high-quality musicality and excellent speech intelligibility in a compact enclosure.
- High sensitivity — High sensitivity and high output up to 130 dB maximum.
- Weather-resistant enclosure — Weather-resistant, rotomolded UV-resistant enclosure.
- Corrosion-resistant hardware — Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and yoke.
- Coaxial design — Coaxially mounted HF and LF drivers for 90° x 60° coverage with low distortion.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Type | Full-range, two-way, coaxial, weather-resistant |
| Operating Range | 70 Hz to 20 kHz (-10 dB) |
| Frequency Response | 95 Hz to 20 kHz (-3 dB) |
| Max Input Ratings | 600W RMS, 1200W program, 69 V RMS, 138 V momentary peak |
| Maximum Output | Without EQ: 130 dB (136 dB peak); with EQ: 129 dB (135 dB peak) |
| Sensitivity (1W/1m) | 102 dB (125 Hz - 10 kHz); 103 dB (250 Hz - 4 kHz) |
| Nominal Impedance | 8 ohms; 4.8 ohms @ 200 Hz minimum |
| Nominal Beamwidth (-6 dB) | 90° x 60°, 1.6 kHz to 10 kHz |
| Crossover Frequency | 900 Hz |
| Recommended Amplifier | 1200W to 1800W at 8 ohms |
| Transducers | LF: 1 x 12" weather-resistant cone, neodymium motor, aluminum demodulation ring; HF: 1 x 1.4" exit compression, 2.87" voice coil |
| Enclosure | Roto-molded LLDPE plastic; grey |
| Environmental | IEC529 IP55W with minimum 5-degree down-tilt |
| Dimensions (H x W x D) | 16" x 16" x 16.19" (406 x 406 x 411 mm) |
| Weight | 44 lbs (20 kg); 47 lbs (21.3 kg) with yoke |
Frequently Asked Questions
Is the R.5-96MAX weather resistant?
Yes. It uses a rotomolded UV-resistant enclosure, weather-resistant grille and drivers, and a moisture-sealed crossover with an IEC529 IP55W rating.
What amplifier power is recommended?
A 1200W to 1800W amplifier at 8 ohms is recommended; DSP with CONEQ power-response correction is recommended processing.
What coverage does it provide?
It provides a nominal 90° x 60° coverage pattern via its coaxial driver design.
