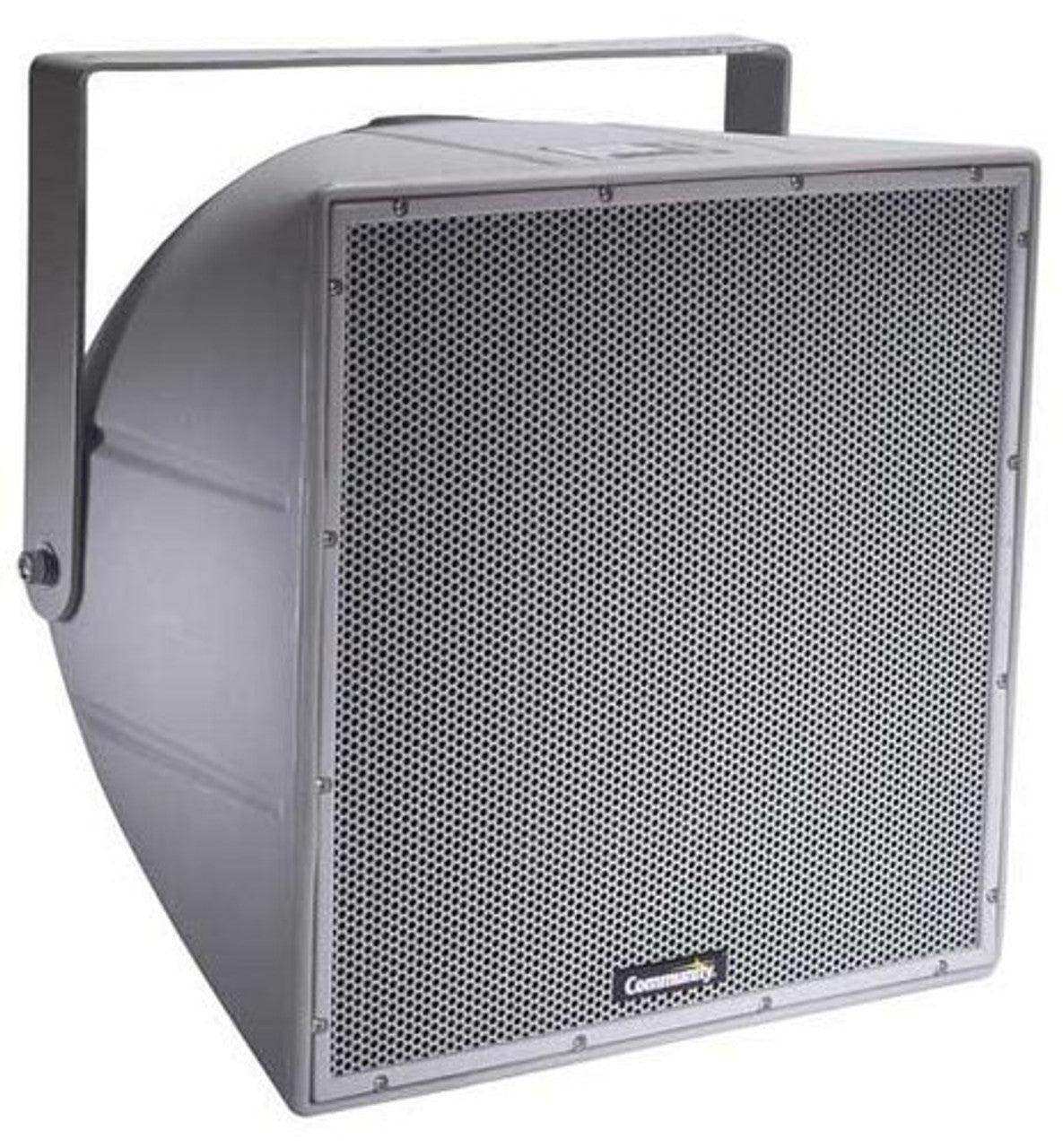

Biamp Community R.5-94Z Full-Range 2-Way 12-Inch Horn Loaded 90 X 40 Grey

Biamp SKU: 911.1248.900
No reviews

Sale price$1,486.00


Community's R.5-94Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion.


  • Fill speaker for stadium, athletic fields, arenas and race tracks
  • Convention centers
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems
  • Rotomolded, UV enclosure
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH active protection circuitry
  • Loudspeaker Type: 2-way, horn-loaded coaxial, weather-resistant
  • Operating Range: 85 Hz to 16 kHz; 125 Hz to 10 kHz(+/-4dB)
  • Max Input Ratings: 200W Continuous, 500W Program; 40 Volts RMS, 89 Volts momentary peak
  • Recommended Power Amplifier: 420W to 600W @ 8 ohms
  • Sensitivity (1W/1m): 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 102 dBSPL (250 Hz to 4 kHz speech range)
  • Maximum Output: 124 dB SPL/131 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 4.2 ohms @ 9.7 kHz
  • Nominal -6dB Beamwidth: 90° H x 40° V
  • Axial Q/DI: 18.1/12.6, 1.6 kHz to 10 kHz
  • Crossover Frequency: 2 kHz
  • Recommended Signal Processing: 90 Hz high pass filter
  • Drivers: LF (1) 12" Ferrofluid-cooled, HF (1) 1"exit, titanium free, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH
  • Input Connection: 12 foot SJOW #16 gauge
  • Controls: None
  • Enclosure: Rotomolded HDPE, light grey
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop (Perforated steel, foam, stainless steel mesh)
  • Required Accessories: 24 dB/Oct high pass filter
  • Supplied Accessories: (1) Stainless Steel (304) yoke bracket; (1) Aiming strap
  • Optional Accessories: Pole mount system
  • Dimensions (HxWxD): 16" x 16" x 16"
  • Weight: 35 lbs
  • Shipping Weight: 40 lbs
