The R.5-MAX loudspeakers deliver outstanding musical performance. Housed in the same size enclosures as Community’s flagship R.5 models, the two R.5-MAX models feature powerful 1.4-inch exit HF drivers and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. While providing the outstanding dynamic range and projection expected from R SERIES, the R.5-MAX offers listeners a superior musical experience with higher output than the R.5HP.

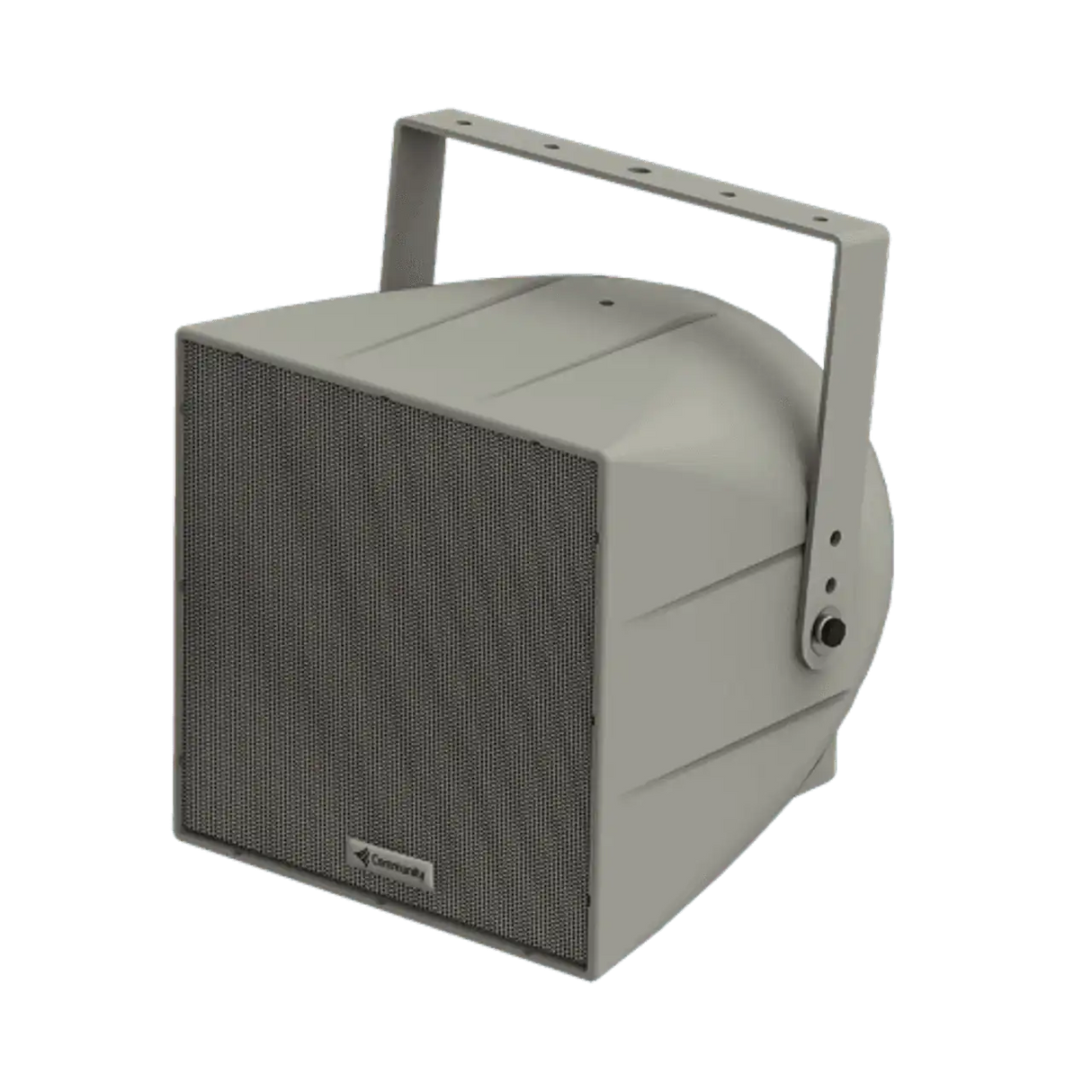

The Community R.5-66MAX is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide high output performance.
The R.5-66MAX has a 1.4" (36 mm) exit HF compression driver and a 12" (305 mm) cone 600W neodymium LF driver. The HF assembly is coaxially mounted with the LF driver allowing 60° x 60° coverage with low distortion. The system has been designed to provide a flat response with slightly rising HF.
- Low distortion, high quality musicality, excellent speech intelligibility in a compact enclosure
- High sensitivity, high output (132 dB max)
- Weather-resistant, rotomolded UV resistant enclosure
- Weather-resistant grille and drivers, and moisture-sealed crossover
- Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
- Operating Range: 70 Hz to 20 kHz (-10 dB)
- Frequency Response: 95 Hz to 19 kHz (-3dB)
- Max Input Ratings: 600W RMS, 1200W Program, 69 volts RMS, 138 volts momentary peak
- Maximum Output:
- without EQ: 131dB (137dB Peak)
- with EQ: 130dB (136dB Peak)
- Sensitivity (1W / 1m): 103dB (125 Hz - 10 kHz)
- Free Space SPL: 103dB (250 Hz - 4 kHz)
- Nominal Impedance: 8 Ohms, 4.8 Ohms @ 200 Hz minimum
- Nominal Beamwidth (-6dB): 60° x 60°, 1.6 kHz to 10 kHz
- Axial Q / DI: 18.7/12.7, 1.6 kHz to 10 kHz
- Crossover Frequency: 900 Hz
- Recommended Processing: DSP with CONEQ™ power response correction
- Recommended Amplifier: 1200W to 1800W at 8 ohms
- Low Frequency Transducer: 1x 12" inherently weather-resistant cone with neodymium motor and aluminum demodulation ring
- High Frequency Transducer: 1x 1.4" exit compression, 2.87" Voice coil
- Input Connection: 12 foot (3.6 m) SJOW #16 gauge
- Enclosure: Rotomolded LLDPE plastic
- Finish: Black, White and Light Grey (RAL# 9004, 9003, and 7038)
- Mounting/Rigging Provisions: (5) 3/8"-16 rigging points; Steel zinc-rich epoxy dual-layer powder-coated bracket; Aluminum aiming strap to secure angle
- Grille: 3-layer Weather-Stop™ with polyester mesh, foam, zinc-rich epoxy dual-layer powder-coated perforated steel color-matched to enclosure
- Environmental: IEC529 IP55W rating with a minimum 5° down-tilt
- Dimensions (HxWxD): 16" x 16" x 16.19" (406 mm x 406 mm x 411 mm)
- Weight: 44 lbs (20 kg) loudspeaker only; 47 lbs (21.3 kg) with yoke bracket
