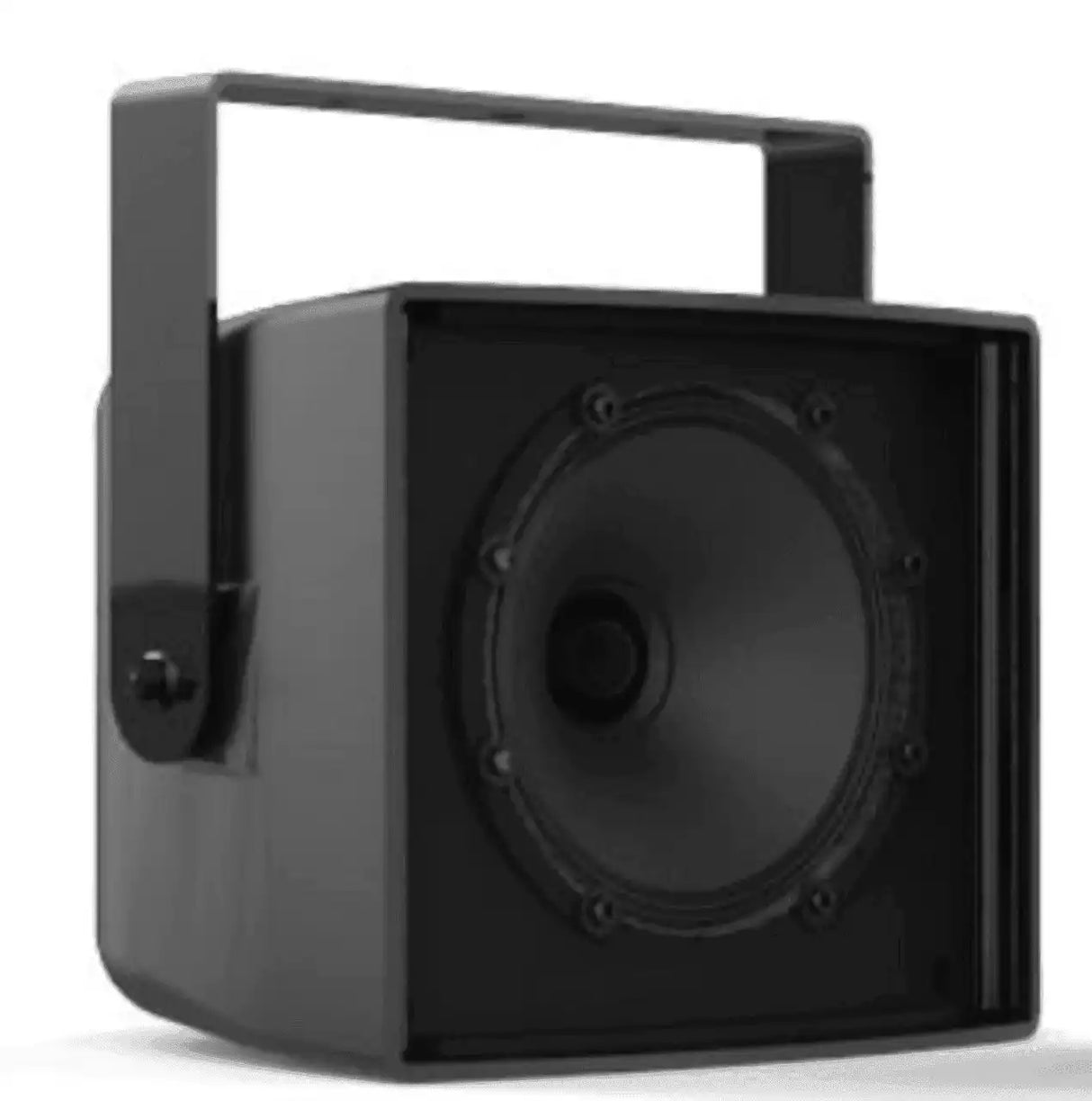

Biamp Community R.35-3896 Full-Range 3-Way 8-Inch 90 X 60 Speakers (Black) - 911.1239.900

Product Overview

The Biamp Community R.35-3896 is an EN54-24 certified, triaxial 8-inch Carbon Ring Cone loudspeaker with Community's MultiSource Waveguide technology. It integrates dual mid-range compression drivers and a 1-inch exit HF compression driver into a single coherent source. This makes it a strong fit as a compact high-output install loudspeaker, an EN54-24 voice-alarm loudspeaker, and an indoor/outdoor full-range speaker. The enclosure is available in a black finish.

Product Description

Fully passive, the R.35-3896 is voiced for flat musical reproduction without EQ and delivers class-leading SPL for a loudspeaker of its size. It meets the need for a high-performance compact loudspeaker for fill and supplementary areas in larger venues and for smaller venues wanting EN54 conformance. With strong voice and music quality, it is suited to indoor and outdoor use across corporate AV, leisure centers, theaters, shopping malls, stadiums, and factories. The high-output, 3-inch voice coil, 8-inch carbon ring cone LF driver uses a flange-less frame design that permits a cone area nearly equivalent to a typical 10-inch driver, resulting in high sensitivity and increased LF extension. The low LF/MR passive crossover point improves mid-range pattern control and eliminates horn coloration in the LF response. A built-in autoformer certifies the loudspeaker for 100V distributed system applications. The weather-resistant enclosure uses high-impact ABS plastic with a modified-trapezoidal shape, hydrophobically treated grille and LF cones, polymer HF and MR diaphragms, and a moisture-sealed crossover.

Key Features

• EN54-24 Certification — The loudspeaker is certified for voice-alarm applications.
• MultiSource Waveguide — The waveguide integrates dual MR drivers and the HF driver into a coherent source.
• Carbon Ring Cone LF Driver — The flange-less 8-inch driver gives near-10-inch cone area for high sensitivity.
• Weather-Resistant Build — Hydrophobic grille and cones with a moisture-sealed crossover suit indoor and outdoor use.
• Built-In Autoformer — The loudspeaker is certified for 100V distributed systems.
• Flat Voicing — It is voiced for flat musical reproduction without EQ.

Typical Applications

• Auditorium — Compact high output suits fill and supplementary areas in larger venues.
• House of Worship — Flat voicing supports clear voice and music reproduction.
• Commercial Meeting Space — Weather resistance and 100V operation suit distributed indoor/outdoor systems.

Technical Specifications

Frequently Asked Questions

Is the R.35-3896 certified for voice alarm?
Yes. It is EN54-24 certified.

Can it be used outdoors?
Yes. It is weather-resistant with hydrophobic treatment and a moisture-sealed crossover, suitable for indoor and outdoor use.

Does it support 100V distributed systems?
Yes. A built-in autoformer certifies it for 100V distributed system applications.

Does it require external EQ?
No. It is voiced for flat musical reproduction without EQ.
