Biamp Community R.15COAX Full-Range 2-Way 6.5-Inch Coax (Grey) - 911.1234.900
Biamp Community R.15COAX Full-Range 2-Way 6.5-Inch Coax (Grey) - 911.1234.900 is backordered and will ship as soon as it is back in stock.
Biamp Community R.15COAX Full-Range 2-Way 6.5-Inch Coax (Grey) - 91...
Product Overview

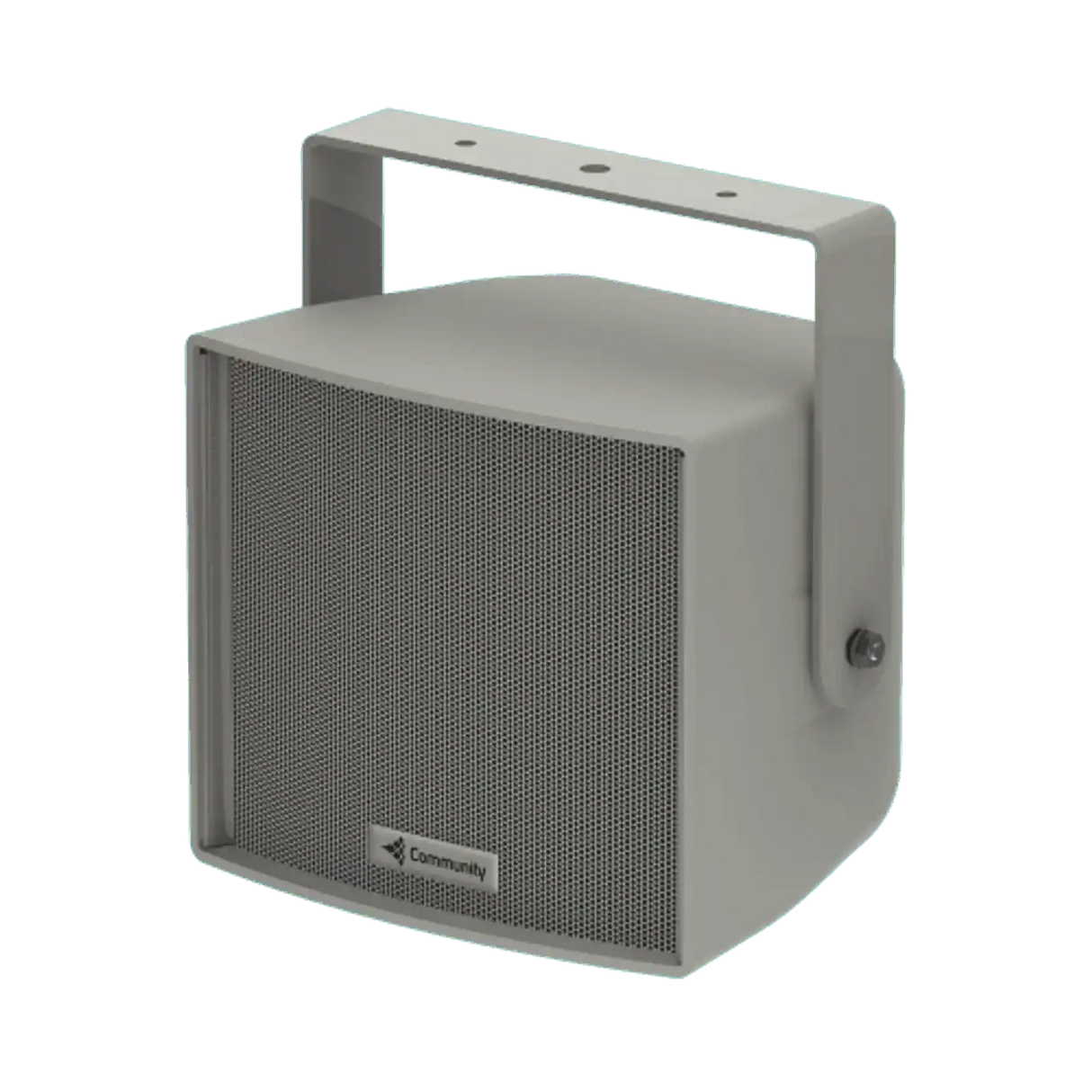

The Biamp Community R.15COAX is a two-way, full-range coaxial loudspeaker (grey) designed to provide high-quality voice and music reproduction in applications requiring extreme weather resistance. It is built to withstand long-term exposure to harsh environmental conditions while delivering performance normally associated only with indoor loudspeakers. It pairs a 1.25-inch exit HF compression driver coaxially mounted with a 6.5-inch carbon ring cone LF driver for wide 100 x 100 degree coverage with low distortion.
Product Description
A Music/Voice switch provides an out-of-the-box selectable response for additional application flexibility, and Community's Tru-Phase HF compression driver phase plug supports wide dispersion, low distortion, and increased intelligibility. The sealed enclosure provides vocal clarity and weather protection for the interior components, with a hydrophobically treated grille and LF cone, polymer HF diaphragm, and moisture-sealed crossover. A standard 120W autoformer allows selectable 8-ohm or 70V/100V operation. The compact, paintable high-impact ABS enclosure and corrosion-resistant powder-coated steel yoke suit demanding outdoor and indoor venues.
Key Features
- Coaxial design — A 1.25-inch HF compression driver is coaxially mounted with a 6.5-inch carbon ring cone LF driver.
- Weather resistant — Hydrophobically treated grille and LF cone, polymer HF diaphragm, and a moisture-sealed crossover withstand harsh conditions.
- Wide coverage — The coaxial design provides wide 100 x 100 degree conical coverage with low distortion.
- Music/Voice switch — A selectable Music/Voice response adds application flexibility out of the box.
- Built-in autoformer — A standard 120W autoformer enables selectable 8-ohm or 70V/100V operation.
- Paintable enclosure — The compact, modified-trapezoidal ABS enclosure is paintable for installation flexibility.
Typical Applications
The R.15COAX suits multi-purpose outdoor and indoor venues, including commercial meeting spaces and government spaces requiring weather-resistant audio.
Technical Specifications
| Transducers | LF 1 x 6.5-inch carbon ring cone; coaxial HF 1 x 1.25-inch exit compression driver |
| Operating range | 90 Hz - 16 kHz |
| Sensitivity (1W/1m) | 94 dB |
| Power handling | 150W continuous @ 8 ohms |
| Continuous max output | 117 dB (123 dB peak) |
| Autoformer (70V/100V) | 120W, 60W, 30W, 15W (@ 70V only) |
| Nominal beamwidth (H x V) | 100 x 100 degrees (conical) |
| Finish | Light grey or black ABS matte plastic, paintable; dual-layer powder-coated steel grille with NeverWet treatment |
| Dimensions (H x W x D) | 9.0 in x 10.2 in x 10.2 in (229 x 258 x 259 mm) |
Frequently Asked Questions
Is the R.15COAX weather resistant?
Yes. It is designed for long-term exposure to harsh environmental conditions, with a hydrophobically treated grille and cone, polymer HF diaphragm, and moisture-sealed crossover.
Does it support 70V/100V systems?
Yes. A standard 120W autoformer allows selectable 8-ohm or 70V/100V operation.
What coverage does it provide?
The coaxial design provides wide 100 x 100 degree conical coverage with low distortion.
