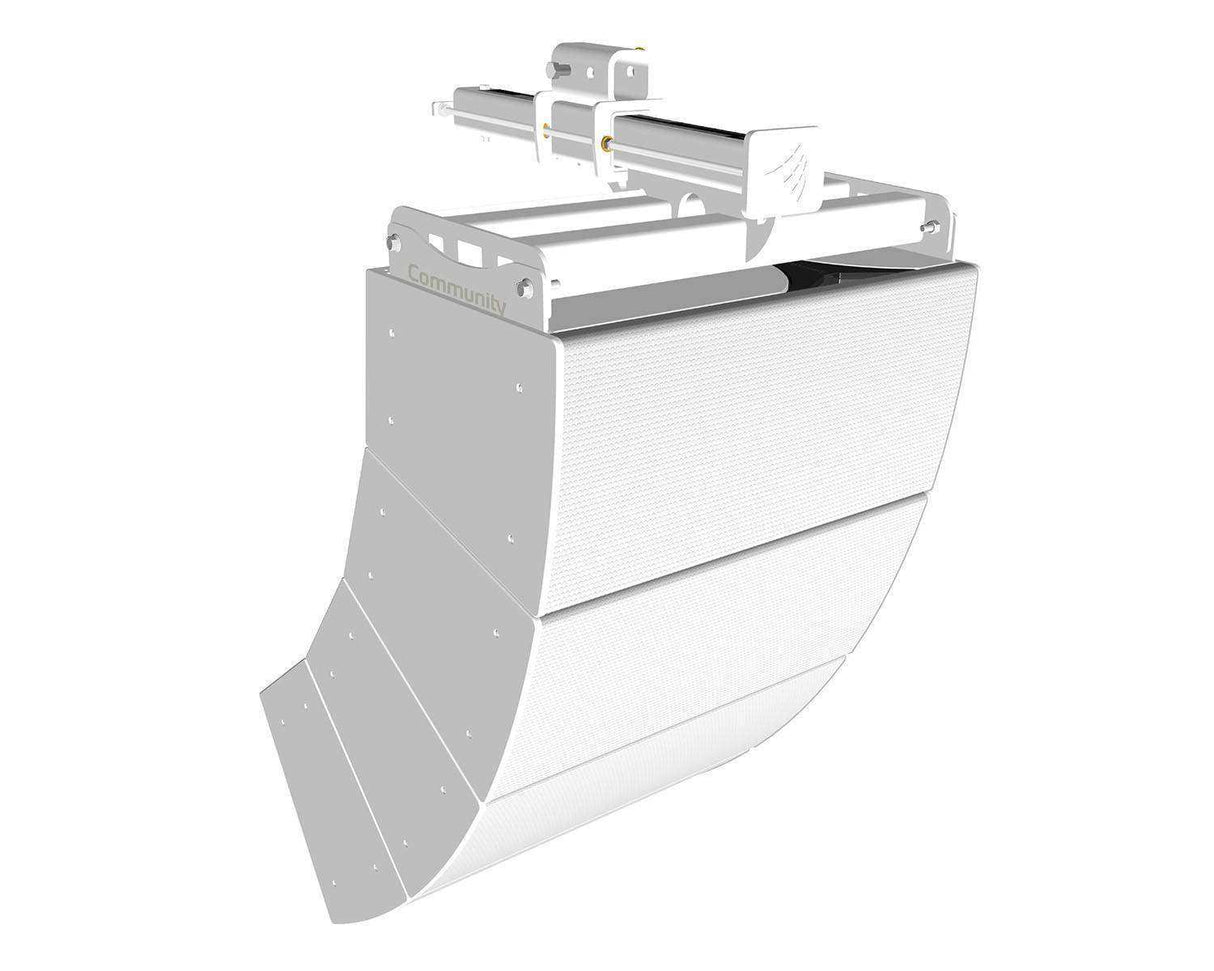

Biamp Community IV6-1122WR05 12-inch two-way, 120 x 05 (Weather-Resistant, White) - 911.1194.900

Biamp SKU: 911.1194.900
No reviews

Price:
Sale price$5,832.00

Description

Aesthetically designed for installed applications, indoors or out, IV6 is a scalable, adaptive sound reinforcement system featuring wide-dispersion array elements (12-inch, 2-way) available in two complementary vertical coverage angle versions (5° and 15°) that support long-throw line arrays, medium-throw progressive curvature arrays and compact constant-curvature arrays.

Weather-Resistant (WR) Option: PolyGlas outdoor technology cabinet construction, stainless steel hardware, marine-grade aluminum grille with hydrophobic fabric treatment, and fiberglass reinforced high strength lightweight composite cabinets finished with UV-resistant exterior grade paint. The standard color is grey, but black and white finishes can also be ordered.

Please note images are for illustrative purposes only. Product appearance may differ.

  • Modular, can be combined to make arrays of up to twenty elements @ 10:1 safety ratio
  • Versatile configurations for both constant curve and line array applications
  • Built-in Passive Acoustic Optimization settings allow array response shaping using one amplifier channel
  • Elegant acoustics designed for permanent installations
  • Exclusive Acoustic Optimization and Rigging SafetyCheck modules integrated into EASE® Focus 3
  • Weather Resistant
  • Transducers: LF- 1 x 12" (305mm) ferrite driver, 3"(76mm) voice coil, inherently weather-resistant cone; HF- 2 x 1.7" (43mm)voice coil, 1" (25mm) exit, ketone polymer diaphragm, neodymium compression drivers
  • Operating Range: 40 Hz to 18.5 kHz
  • Passive Array Optimization: Element Attenuation: 15dB range (in 1.5 dB steps)
  • Continuous Power Handling @ Nominal Impedance: 80V,400W @ 16 ohms
  • Max continuous output (for 4 cabinets): 139 dB
  • Nominal Beamwidth (H x V); 1122/05 – 120° x 5° (max);1122/15 – 120° x 15° (max); Vertical beamwidth is array dependent and can be modified by splay brackets
  • Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor(WR): 15mm PolyGlas, Grey, Black or White heavily textured exterior-rated coating with powder-coated marine-grade aluminum
  • Dimensions: 14.02" x 28.12" x 16.55" (356 x 714 x 421 mm)
