Product Overview

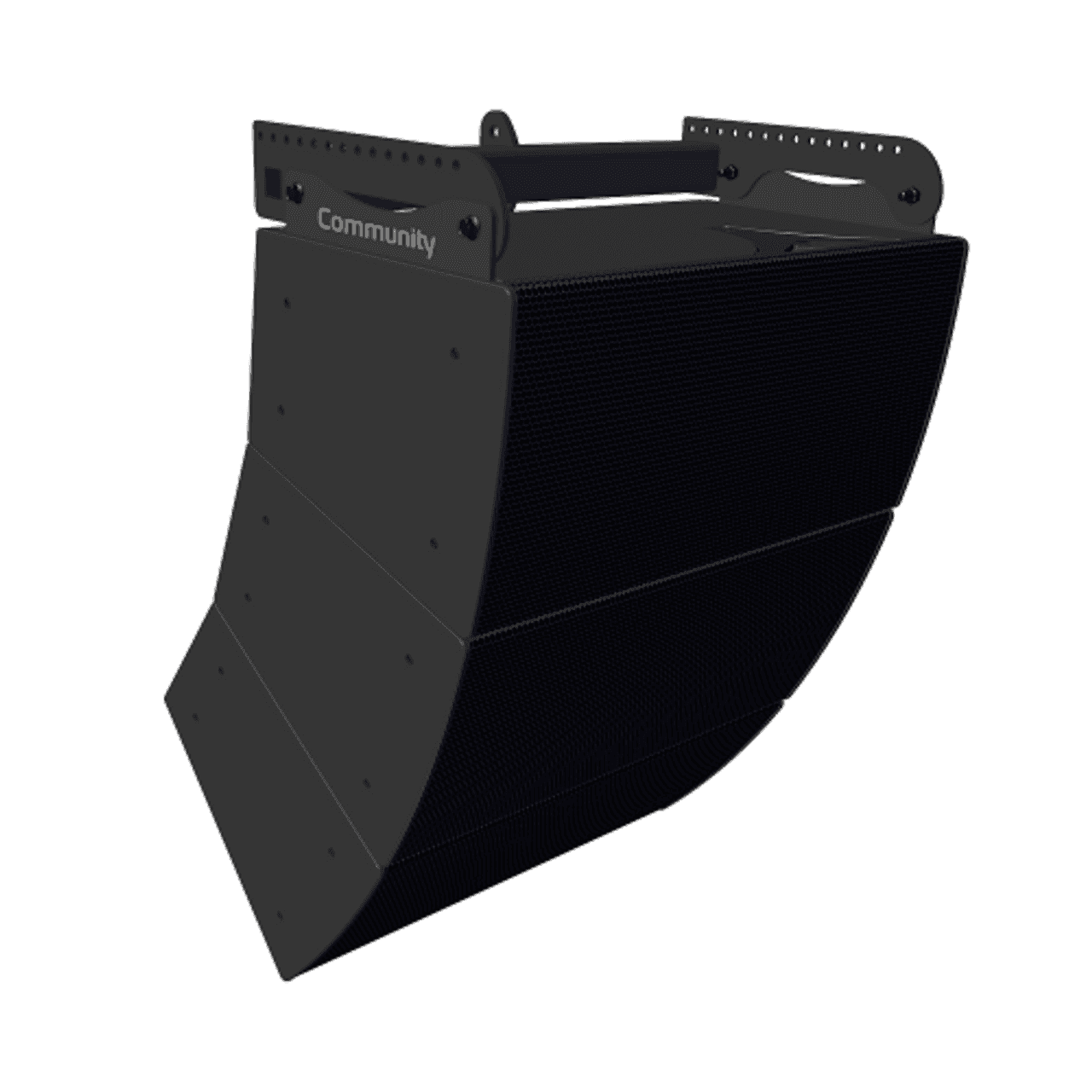

The Community IV6-1122 is a 12-inch two-way modular vertical array element with 120° x 5° coverage, built for scalable, adaptive sound reinforcement in houses of worship, auditoriums and large multi-purpose venues. As part of the I Series Modular Vertical Array 600 it supports line-array and constant-curvature configurations.
Product Description
This IV6-1122 (Black, 120 x 05) is part of the I Series Modular Vertical Array 600, a scalable, adaptive sound reinforcement system of vertically arrayable elements that can be used together or separately, with or without splay between cabinets, for an extensive range of vertical coverage and throw configurations. Two complementary coverage angles permit true line-array configurations for longer throws, progressive-curvature arrays for medium rooms and compact constant-curvature arrays for near-field point-source coverage. Constraining splay between adjacent elements to 0, 2.5 or 5 degrees eliminates excessive coverage overlap and gaps. The IV6 includes built-in Passive Acoustic Optimization, which provides frequency-selective attenuation in 1.5 dB steps within each element to correct level and response across the array's vertical plane using a single amplifier channel.
Key Features
- Modular vertical array — Elements combine into arrays of up to twenty cabinets at a 10:1 safety ratio for scalable coverage.
- Versatile configurations — The design supports both constant-curve and line-array configurations for varied throw distances.
- Passive Acoustic Optimization — Built-in PAO settings shape array response using a single amplifier channel without added DSP.
- Install-grade acoustics — Elegant acoustics and finishes are designed for permanent installations.
- EASE Focus 3 integration — Exclusive Acoustic Optimization and Rigging Safety Check modules are integrated into EASE Focus 3.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Government space
Technical Specifications
| Nominal Beamwidth (max) | 120° x 5° |
| Transducers | LF: 1 x 12" (305mm) ferrite driver, 3" voice coil, weather-resistant cone; HF: 2 x 1" exit, 1.7" voice coil, ketone polymer diaphragm, neodymium compression drivers |
| Operating Range | 40 Hz to 18.5 kHz |
| Passive Array Optimization | Element attenuation: 15 dB range in 1.5 dB steps |
| Power Handling | 400W @ 16 ohms (80V) |
| Max Continuous Output | 139 dB (for 4 cabinets) |
| Finish | Low-gloss textured painted 15mm Baltic Birch plywood with powder-coated steel grille |
| Dimensions | 14.02" x 28.12" x 16.55" (356 x 714 x 421 mm) |
| Warranty | Biamp 5-year warranty |
Frequently Asked Questions
Is this loudspeaker suitable for outdoor installation?
Weather-resistant models use Community's exterior-rated construction and grille for permanent outdoor use; indoor models are rated for interior installations. Check the specifications for the exact environmental rating.
What amplifier should I pair with it?
Match amplifier power to the loudspeaker's continuous power handling and impedance shown in the specifications. Biamp Community ALC and Voltera controllers include factory loudspeaker presets for this series.
Can it be flown or pole mounted?
Yes. The series uses Community's modular bracket and rigging systems with the threaded mounting points listed in the specifications for suspended or bracketed installation.
What is the warranty and support?
The product is supported by Biamp, and Creation Networks can assist with system design, amplifier matching and ordering.
