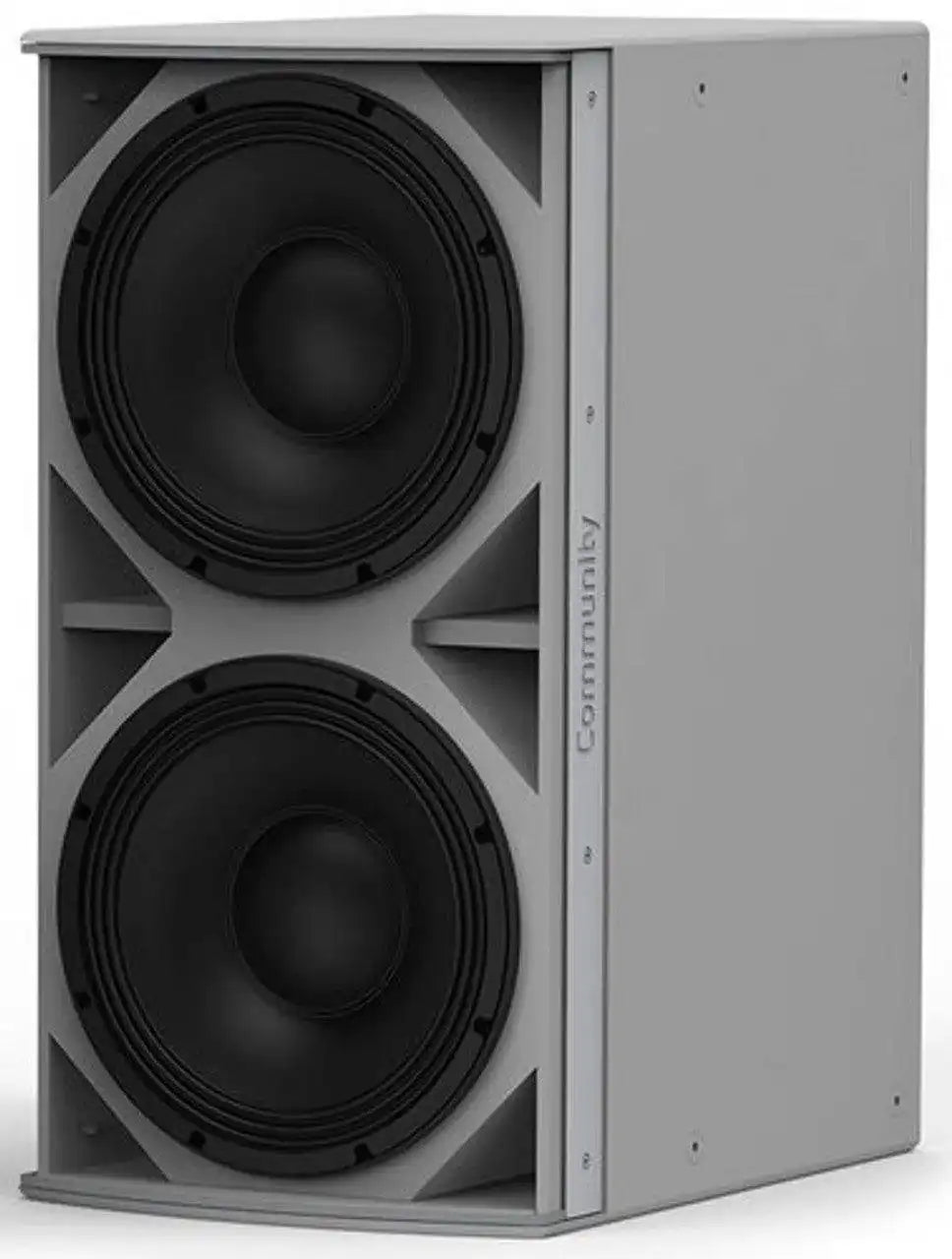

Biamp Community IS6-218WR Medium Power Dual 18-Inch Subwoofer (Weather-Resistant, Grey)

Biamp SKU: 911.1142.900
No reviews

Price:
Sale price$6,000.00

Description

The Community IS6-218WR is an I Series Subwoofer 600 dual 18" 1400W (4 Ohms) passive installation subwoofer housed in a Weather-Resistant Light Grey Polyglas cabinet. Well-suited for application usage such as houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, or any other application where extended low-frequency reinforcement is required, and is built for a lifetime of performance outdoors, as it's IP56-rated (per IEC 60529).

I Series Subwoofer 600 loudspeakers offer exemplary acoustic performance, modular versatility, and elegant aesthetics for contemporary performance venues. They're designed to support the goals of systems integrators and consultants both acoustically and mechanically, so are available in a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

Each cabinet has a been carefully engineered to provide matching heights, face widths, and suspension point locations for seamless integration into flown arrays* with I Series full-range models. The wide range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

A direct radiating subwoofer, the IS6-218WR features large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, which reduces distortion and extends system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. Not only does this arrangement provide additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I Series dual driver subwoofer model.

About Community Weather-Resistant Models - A leader in understanding loudspeaker performance and durability in outdoor situations, Community utilizes PolyGlas construction for their weather-resistant I SERIES loudspeakers. This technique lets them make better quality enclosures at comparable prices while providing superior, longer-lasting protection than any fiberglass-covered wood loudspeaker, and they' re virtually immune to the destructive effects of moisture and temperature cycling. Additionally, manufacture and delivery times of PolyGlas I SERIES are similar to the wood versions, eliminating excessively long lead times.

Applications

  • Small to Medium Size Venues:
    • Houses of Worship
    • Auditoriums
    • Restaurants
    • Meeting Rooms
    • Theaters
    • Corporate A/V Systems
  • Larger Size Venues:
    • Arenas
    • Stadiums
    • Night Clubs
    • Theaters
    • Themed Entertainment
    • Larger Houses of Worship
  • Weather Resistant design: IP56-rated (per IEC 60529)
  • Long excursion ferrite LF drivers with FEA-optimized motors and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1400W continuous power handling (5600W peak)
  • High sensitivity design minimizes power compression losses and required amplifier size
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Operating Mode: Single or Dual Amp
  • Operating Environment: Indoor/Outdoor
  • Operating Range: 32 Hz - 145 Hz
  • Transducers: 2x 18" (457 mm) double-treated cones with 4" (102 mm) inner/outer wound voice coil, ferrite construction
  • Continuous Power Handling @ Nominal Impedance:
    • Single Amp, 75V: 1400W @ 4 Ohms (5600W peak)
    • Dual Amp, 75V: 700W @ 8 Ohms (2800W peak) each
  • Nominal Sensitivity:
    • Half Space: 107dB @ 1W; 110dB @ 2.83V
    • Whole Space: 101dB @ 1W; 104dB @ 2.83V
  • Nominal Maximum SPL:
    • Half Space: 138dB continuous; 144dB peak
    • Whole Space: 132dB continuous; 138dB peak
  • Equalized Sensitivity:
    • Half Space: 102dB @ 1W; 105dB @ 2.83V
    • Whole Space: 96dB @ 1W; 99dB @ 2.83V
  • Equalized Maximum SPL:
    • Half Space: 133dB continuous; 139dB peak
    • Whole Space: 127dB continuous; 133dB peak
  • Recommended Amplifiers:
    • Single Amp: 1400W - 2800W @ 4 Ohms (75V - 106V)
    • Dual Amp: 700W - 1400W @ 8 Ohms (75V - 106V) each driver
  • Physical:
    • Dimensions (HxWxD): 39.00" x 22.10" x 28.89 " (991 x 561 x 734 mm)
    • Weight (loudspeaker only): 131 lbs (59.4 kg)
    • Input Connection/Cable:
      • Sealed gland nut with 15 ft (4.6m) 14 ga unterminated SJOW cable
      • 10 ga SJOW cable and custom lengths are available as CTO options (sold separately). Contact your Sales Pro for details
    • Transducers / Components: Inherently weather-resistant transducers and crossovers sealed with Community's Envirotech protective coating.
    • Mounting Points: (23) M10 threaded rigging points
    • Exterior Finish / Standard Color: PolyGlas enclosures are inherently weather-resistant without further external treatment. To maintain I SERIES aesthetics, the enclosures receive heavy coats of exterior-grade textured primer and an exterior-grade UV-resistant top coat. Light Grey is the standard color.
    • Enclosure Material: PolyGlas is a structural-grade cross-linked polymer substrate permanently intertwined with dual layers of woven fiberglass cloth embedded just beneath the external surface. Waterproof two-part adhesive and advanced cabinet joinery techniques are used to permanently bond all enclosure panels and internal bracing.
    • Grille:
      • Backing: Hydrophobic (treated) black acoustic fabric
      • Grille Material: Perforated marine-grade aluminum
      • Grille Finish: Dual-layer powder-coated semi-gloss, color-matched to enclosure
    • Environmental: IP56-rated, per IEC 60529, conforming with MIL-STD-810G
