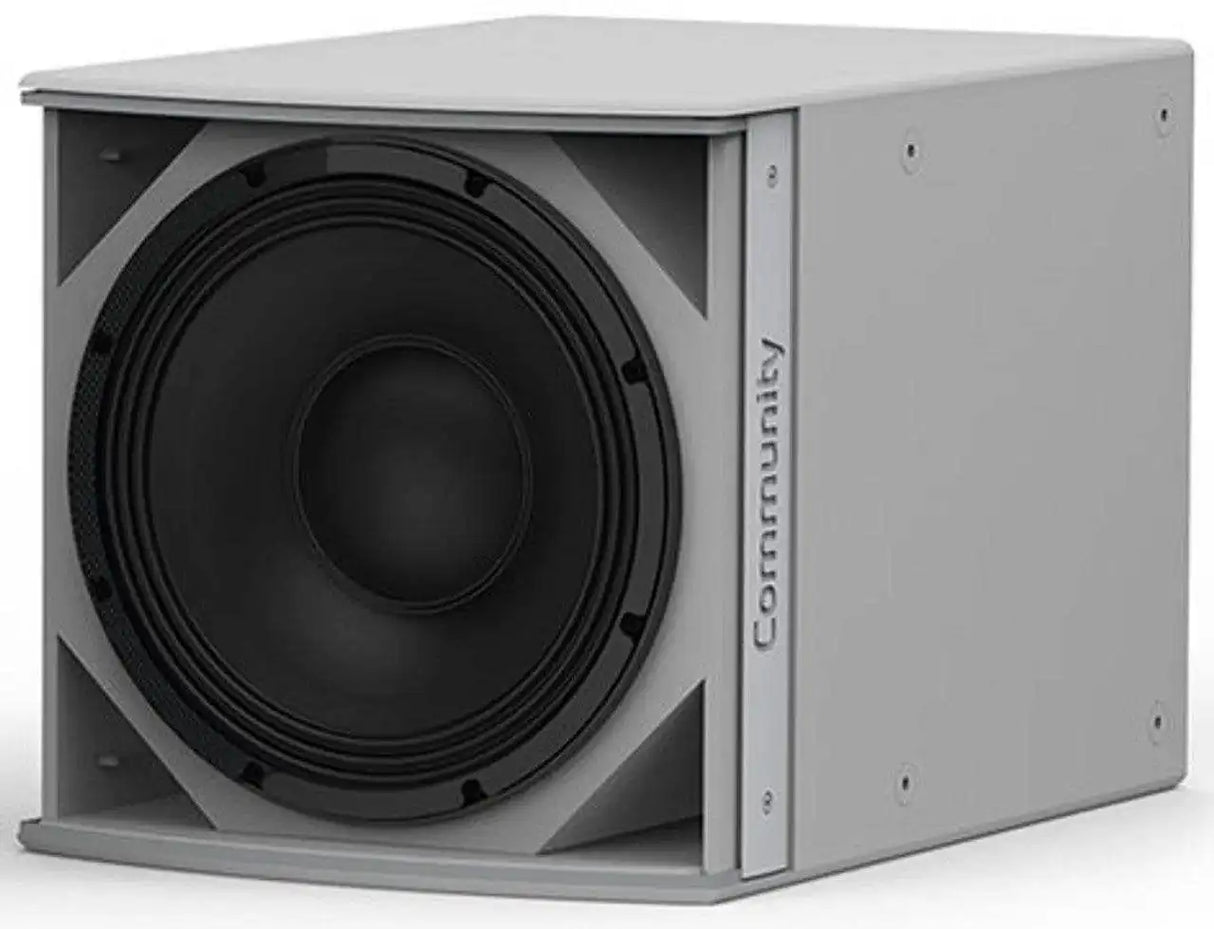

Biamp Community IS6-118WR Medium Power 18-Inch Subwoofer (Weather Resistant, Grey)

The Community IS6-118 is a medium power 18" subwoofer.

I SERIES Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS6-118 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s size.

Features

• Long excursion ferrite LF driver with FEA-optimized-motor and symmetric movement suspension
• Matched-size enclosure and aligned suspension point for seamless flown array integration
• 700W continuous power handling (2800W peak)
• High sensitivity design minimizes power compression losses and required amplifier size
• Weather-resistant PolyGlas enclosure

Specifications

• Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor(WR): 15mm PolyGlas, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminum grille
• Nominal Beamwidth (H x V): 360° x 180°
• Continuous Max Output: 132 dB (138 dB Peak)
• Operating Range: 32 Hz – 145 Hz
• Sensitivity (1W/1m): 104 dB
• Power Handling: 700W continuous @ 8 ohms
• Transducer: 1 x 18" double-treated cone with 4” inner/outer wound voice coil, ferrite construction
• Dimensions (H x W x D): 19.80" x 22.10" x 28.89" (503 x 561 x 734 mm)
