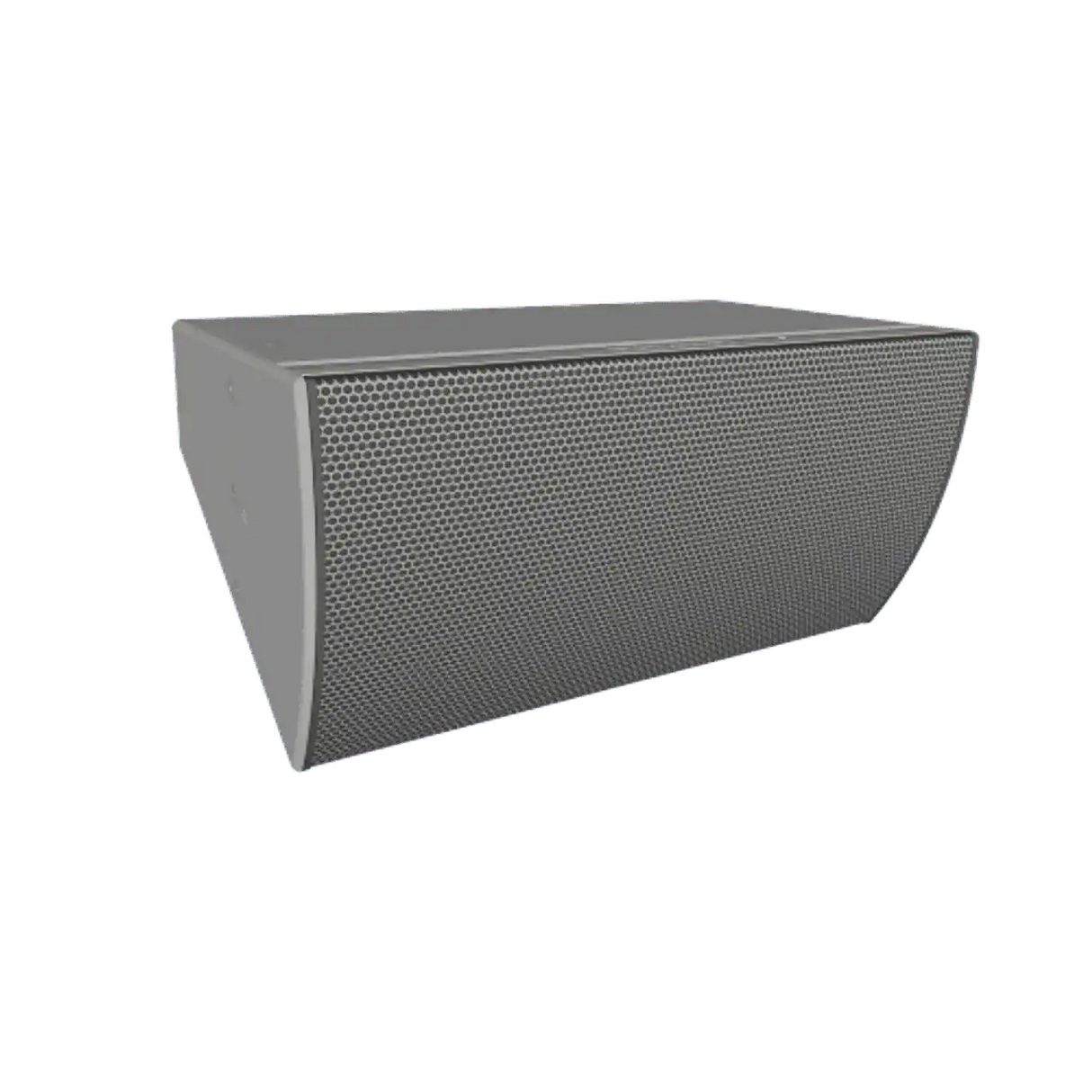

Biamp Community IP8-1152WR64 High Power 15-Inch 2-Way 60 X 40 Speaker (Weather Resistant, Grey)

The IP8-1152WR from Community is part of their I SERIES of Point Source 800 weather-resistant loudspeakers with this grouping coming in a weather-resistant grey. These speakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, the I SERIES includes a wide variety of rotatable coverage patterns and an easily installed U-Bracket that accelerate system design and system commissioning.

FEA-optimized linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced mid-range in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beam width matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Factory-standard passive or optional biamp operating modes further expand performance capabilities.

Models include:

• IP8-1152WR26: High Power 15-Inch 2-Way 120° X 60°
• IP8-1152WR64: High Power 15-Inch 2-Way 60° X 40°
• IP8-1152WR66: High Power 15-Inch 2-Way 60° X 60°
• IP8-1152WR94: High Power 15-Inch 2-Way 90° X 40°
• IP8-1152WR96: High Power 15-Inch 2-Way 90° X 60°
• IP8-1152WR99: High Power 15-Inch 2-Way 90° X 90°

• Large user-rotatable waveguide with individually voiced crossover, single amp or biamp operation
• Lightweight and compact with deep LF extension
• Exceptional sound quality and clarity at very high output levels
• High-flux, linear neodymium motors with demodulation rings for very low distortion
• Weather-resistant hardware and grille, with high-strength PolyGlas cabinet construction

• Transducers: LF - 1 x 15" cone, 3” voice coil, demodulation ring, neodymium driver; HF - 1 x 1.4" exit , 2.6” voice coil, ketone polymer diaphragm, neodymium compression driver
• Operating Range: 30 Hz – 22.4 kHz
• Power Handling: 800W continuous @ 8 ohms
• Continuous Max Output (with processing): 123 dB (129 dB Peak)
• Sensitivity (1W/1m): 94 dB
• Nominal Beamwidth (H x V): /26 (120° x 60°), /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°), /96 (90° x 60°), /99 (90° x 90°)
• Enclosure: 15mm PolyGlas, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminum grille with water-repellent synthetic fabric backing
• Dimensions (H x W x D): 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)
