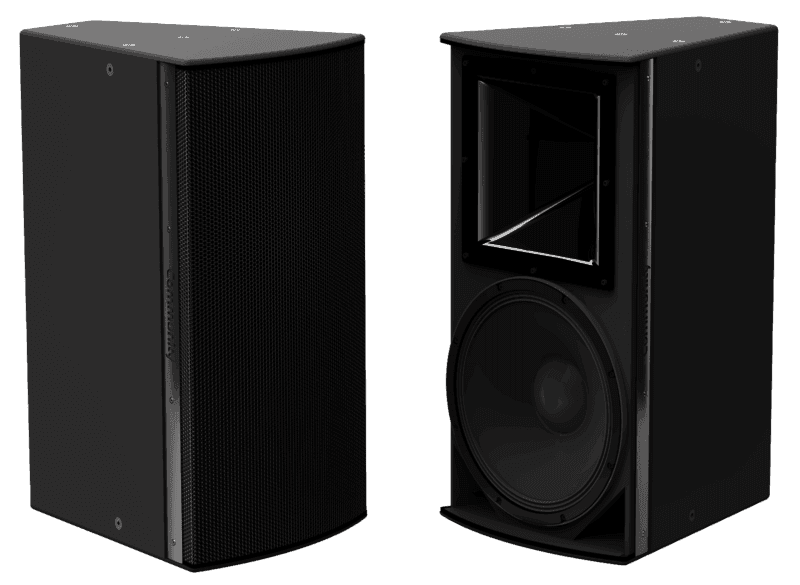

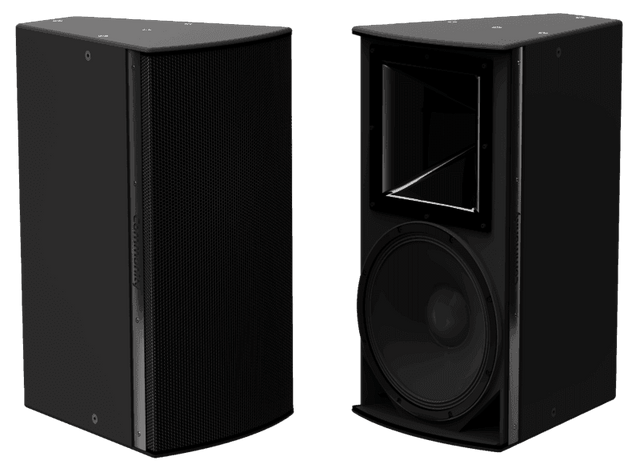

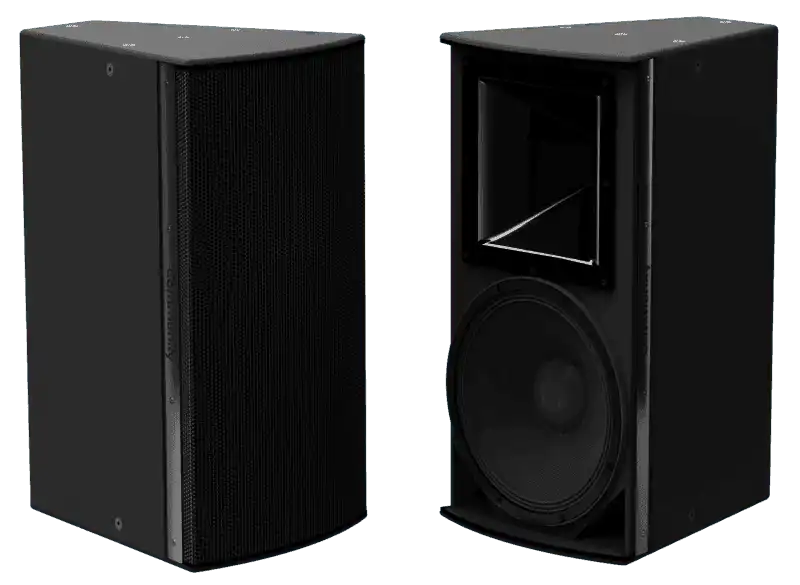

Biamp Community IP8-1152/99 High Power 15-Inch 2-Way 90 X 90 Speaker (Black) - 911.1100.900

I SERIES Point Source 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning.

FEA-optimized linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced mid-range in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beam width matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single amp or biamp operating modes expand application flexibility.

Applications

MAIN PA (Small to Medium Size Venues)

• Houses of Worship
• Auditoriums
• Restaurants Meeting Rooms
• Theaters
• Corporate A/V Systems

DISTRIBUTED OR FILL (Larger Size Venues)

• Arenas
• Stadiums
• Night Clubs
• Theaters Themed Entertainment
• Larger Houses of Worship

• High-flux, linear neodymium motors with demodulation rings for very low distortion
• Exceptional sound quality and clarity at very high output levels
• Lightweight and compact with deep LF extension
• Large rotatable waveguide with individually voiced crossover, single amp/biamp selectable
• Innovative low profile modular bracket systems create elegant arrays with simplified installation

• Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor (WR): 15mm PolyGlas, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminum grille
• Nominal Beamwidth (H x V): /26 (120° x 60°), /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°), /96 (90° x 60°), /99 (90° x 90°)
• Continuous Max Output (with processing): 123 dB (129 dB Peak)
• Power Handling: 800W continuous @ 8 ohms
• Operating Range: 30 Hz – 22.4 kHz
• Sensitivity (1W/1m): 94 dB
• Transducers: LF - 1 x 15" cone, 3” voice coil, demodulation ring, neodymium HF - 1 x 1.4" exit , 2.6” voice coil, ketone polymer diaphragm, neodymium compression driver
• Dimensions (H x W x D): 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)
