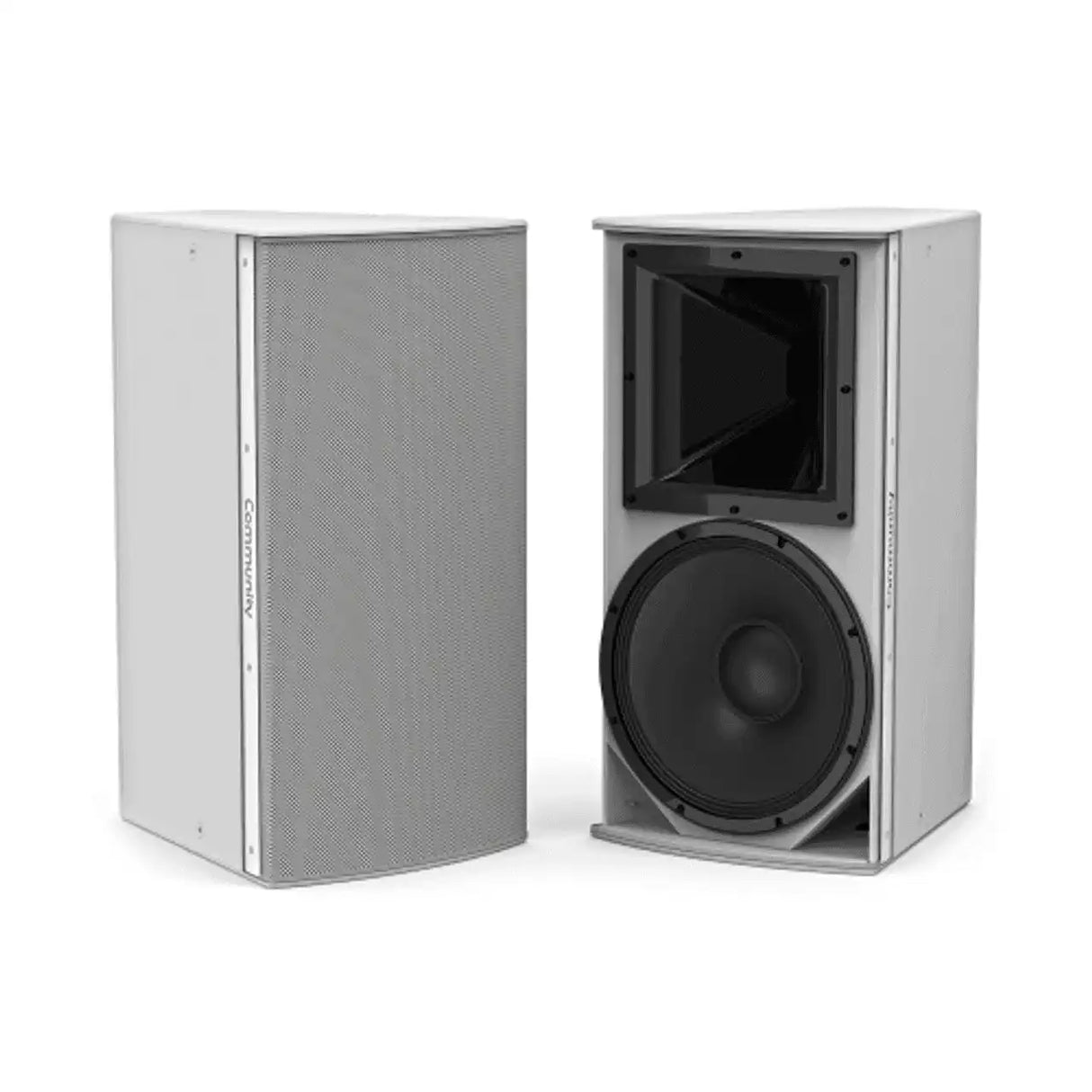

Biamp Community IP8-1152/26 High Power 15-Inch 2-Way 120 X 60 Speaker (White) - 911.1091.900

Product Overview

The Biamp Community IP8-1152/26 is a high power 15-inch 2-way passive installation loudspeaker from the I SERIES Point Source 800 line, finished in White. With a 120° x 60° rotatable waveguide and 800W continuous power handling, it is engineered for clear, high-output sound reinforcement in demanding fixed-install environments. It serves as a primary AV loudspeaker for houses of worship, auditoriums and large commercial meeting spaces. This installation point source loudspeaker pairs long-throw projection with smooth off-axis response for consistent coverage.

Product Description

I SERIES Point Source 800 loudspeakers provide acoustic performance, modular flexibility and refined aesthetics for modern performance venues, supporting both the acoustic and mechanical goals of integrators and consultants. FEA-optimized linear suspensions, high-flux neodymium motors and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass and balanced mid-range, while the HF compression driver's non-metallic diaphragm reproduces sources naturally and transparently. The rotatable 13-inch (330 mm) HF waveguide provides well-defined coverage and smooth off-axis response that enhances arrayability, and individually voiced crossovers allow horn patterns to be mixed throughout an installation. User-selectable single-amp or biamp operating modes expand application flexibility across the I SERIES range.

Key Features

• High-flux neodymium motors — Linear neodymium motors with demodulation rings keep distortion very low at high output.
• High-output clarity — Delivers exceptional sound quality and clarity at very high output levels.
• Deep LF extension — Lightweight, compact enclosure with deep low-frequency extension for full-range reinforcement.
• Rotatable waveguide — A large rotatable waveguide with individually voiced crossover supports single-amp or biamp operation.
• Modular bracket systems — Low-profile modular bracket systems create clean arrays and simplify installation.

Typical Applications

• House of worship
• Auditorium
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Is the IP8-1152 a passive loudspeaker?
Yes. It is a passive installation loudspeaker rated at 800W continuous into 8 ohms and supports user-selectable single-amp or biamp operation with external amplification and DSP.

What coverage pattern does the /26 provide?
The /26 provides a nominal 120° x 60° coverage pattern via its rotatable 13-inch HF waveguide for flexible aiming in the room.

Can these be arrayed together?
Yes. Individually voiced crossovers and matching sonic signatures allow horn patterns to be mixed, and the low-profile modular brackets support clean array configurations.
