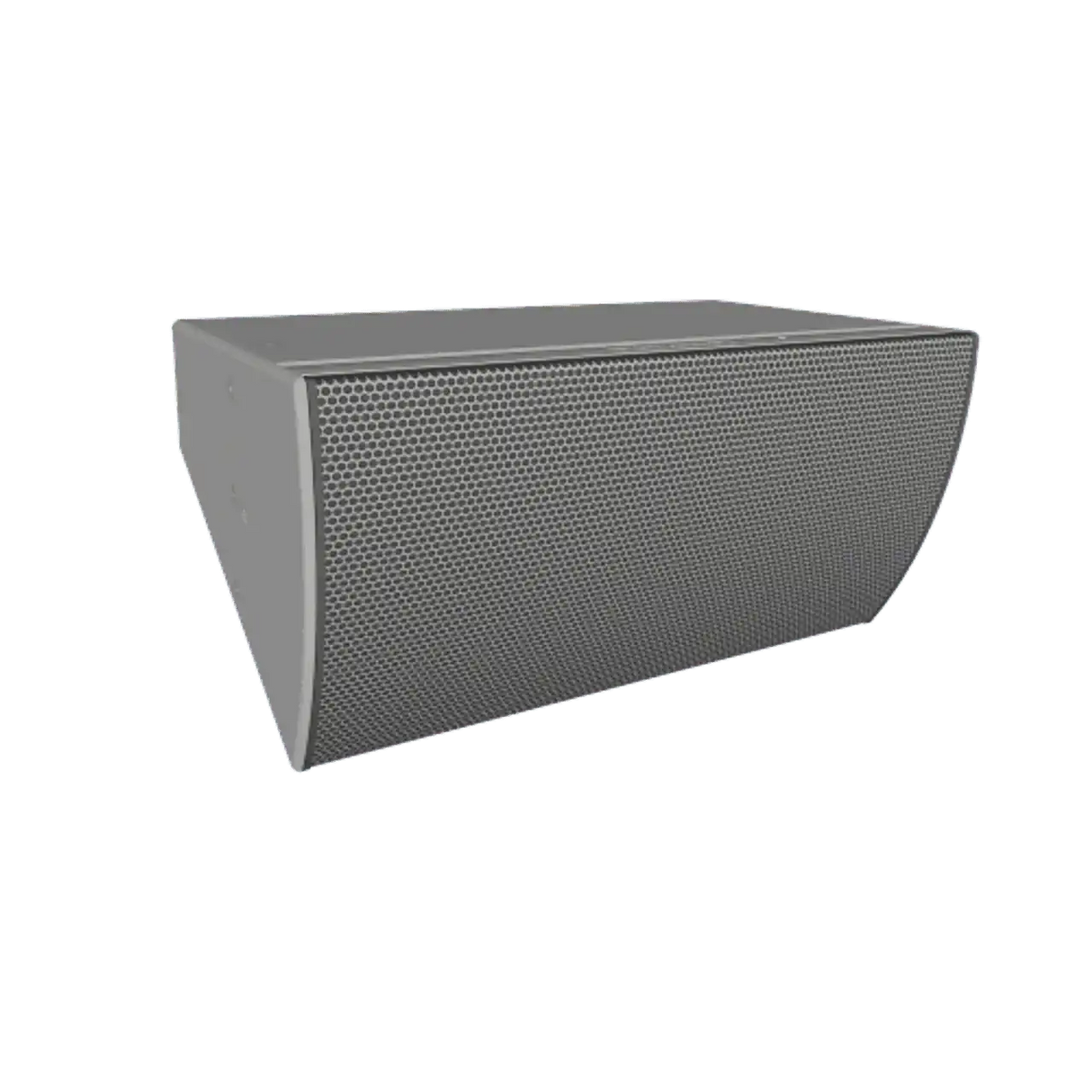

Biamp Community IP8-1122WR94 High Power 12-Inch 2-Way 90 X 40 Speaker (Weather Resistant, Grey)
Biamp Community IP8-1122WR94 High Power 12-Inch 2-Way 90 X 40 Speaker (Weather Resistant, Grey) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IP8-1122WR94 High Power 12-Inch 2-Way 90 X 40 Speak...
Product Overview
The Community IP8-1122WR is a high-power 12-inch 2-way weather-resistant installation loudspeaker with a 90° x 40° dispersion pattern, built for outdoor sound reinforcement in houses of worship, auditoriums and multi-purpose venues. As part of the I Series Point Source 800 line it combines high output with a rotatable waveguide for flexible coverage.
Product Description
This IP8-1122WR is part of Community's I Series Point Source 800 loudspeakers, providing acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. FEA-optimized linear suspensions, high-flux neodymium motors and integral demodulation rings ensure precise transducer motion control and very low distortion at high SPL levels. The custom long-excursion 12-inch LF driver delivers deep bass response and a balanced mid-range, while the HF compression driver's non-metallic diaphragm provides natural, transparent sound. The rotatable 13-inch HF waveguide gives well-defined 90° x 40° coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers permit horn patterns to be mixed throughout an installation, and user-selectable single-amp or biamp operating modes expand application flexibility.
Key Features
- Rotatable HF waveguide — A large rotatable 13-inch waveguide with individually voiced crossover supports single-amp or biamp operation.
- Compact 12-inch design — A custom long-excursion 12-inch LF driver delivers deep extension from a lightweight, compact enclosure.
- High output with low distortion — High-flux linear neodymium motors with demodulation rings keep distortion low at very high SPL levels.
- Weather-resistant build — Weather-resistant hardware and grille with high-strength PolyGlas construction suit exposed installations.
- Modular bracket system — Innovative low-profile modular bracket systems create elegant arrays with simplified installation.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Government space
Technical Specifications
| Nominal Beamwidth (H x V) | 90° x 40° |
| Transducers | LF: 1 x 12" neodymium driver, 3" voice coil, demodulation ring; HF: 1 x 1.4" exit, 2.6" voice coil, ketone polymer diaphragm, neodymium compression driver |
| Operating Range | 43 Hz - 22.4 kHz |
| Power Handling | 800W continuous @ 8 ohms (passive) |
| Continuous Max Output | 123 dB (129 dB Peak), with processing |
| Sensitivity (1W/1m) | 94 dB |
| Enclosure | 15mm PolyGlas, Grey exterior-rated coating, powder-coated marine-grade aluminum grille |
| Dimensions (H x W x D) | 28.0" x 14.5" x 17.7" (711 x 367 x 449 mm) |
| Warranty | Biamp 5-year warranty |
Frequently Asked Questions
Is this loudspeaker suitable for outdoor installation?
Weather-resistant models use Community's exterior-rated construction and grille for permanent outdoor use; indoor models are rated for interior installations. Check the specifications for the exact environmental rating.
What amplifier should I pair with it?
Match amplifier power to the loudspeaker's continuous power handling and impedance shown in the specifications. Biamp Community ALC and Voltera controllers include factory loudspeaker presets for this series.
Can it be flown or pole mounted?
Yes. The series uses Community's modular bracket and rigging systems with the threaded mounting points listed in the specifications for suspended or bracketed installation.
What is the warranty and support?
The product is supported by Biamp, and Creation Networks can assist with system design, amplifier matching and ordering.
