Biamp Community IP8-1122/94 High Power 12-Inch 2-Way 90 X 40 Speaker (White) - 911.1078.900
Biamp Community IP8-1122/94 High Power 12-Inch 2-Way 90 X 40 Speaker (White) - 911.1078.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IP8-1122/94 High Power 12-Inch 2-Way 90 X 40 Speake...
Product Overview

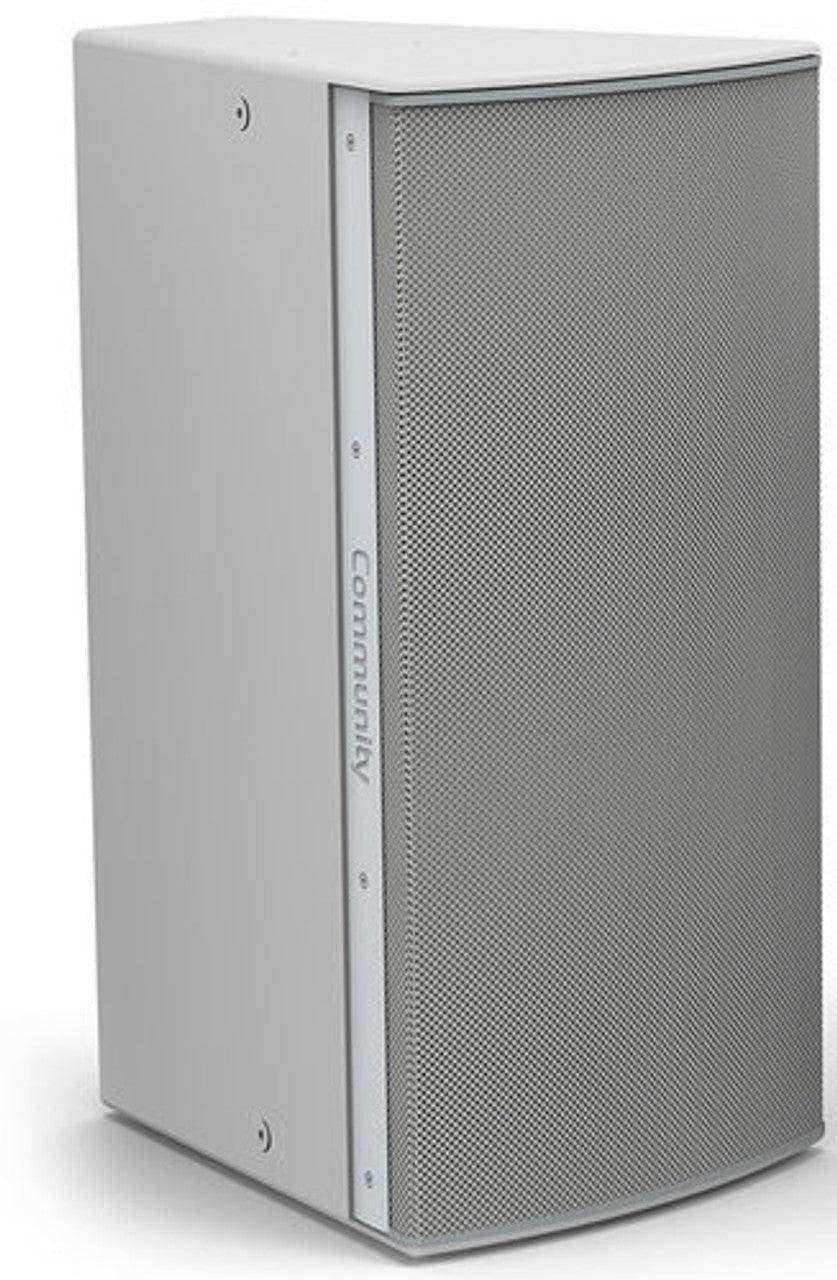

The Biamp Community IP8-1122/94 is a high power 12-inch 2-way passive installation loudspeaker from the I SERIES Point Source 800 line, finished in White. It features a 90° x 40° rotatable waveguide and 800W continuous power handling for long-throw, wide-dispersion sound reinforcement. This installation point source loudspeaker is well suited to houses of worship, auditoriums and commercial meeting spaces that need clear projection. It combines deep LF extension with smooth, well-defined coverage for consistent intelligibility.
Product Description
I SERIES Point Source 800 loudspeakers provide acoustic performance, modular flexibility and refined aesthetics for modern performance venues. FEA-optimized linear suspensions, high-flux neodymium motors and integral demodulation rings ensure precise transducer motion control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass and balanced mid-range, while the HF compression driver's non-metallic diaphragm reproduces sources naturally. The rotatable 13-inch (330 mm) HF waveguide provides well-defined coverage and smooth off-axis response that enhances arrayability, with individually voiced crossovers permitting horn patterns to be mixed throughout an installation. User-selectable single-amp or biamp operating modes expand application flexibility.
Key Features
- High-flux neodymium motors — Linear neodymium motors with demodulation rings keep distortion very low at high output.
- High-output clarity — Delivers exceptional sound quality and clarity at very high output levels.
- Deep LF extension — Lightweight, compact enclosure with deep low-frequency extension.
- Rotatable waveguide — A large rotatable waveguide with individually voiced crossover supports single-amp or biamp modes.
- Modular bracket systems — Low-profile modular bracket systems create clean arrays and simplify installation.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
- Commercial meeting space
Technical Specifications
| Type | I SERIES Point Source 800, 12-inch 2-way |
| Operating Mode | Passive or biamp with DSP |
| Operating Environment | Indoor |
| Operating Range | 43 Hz - 18.5 kHz |
| Nominal Beamwidth (H x V) | 90° x 40°, rotatable waveguide |

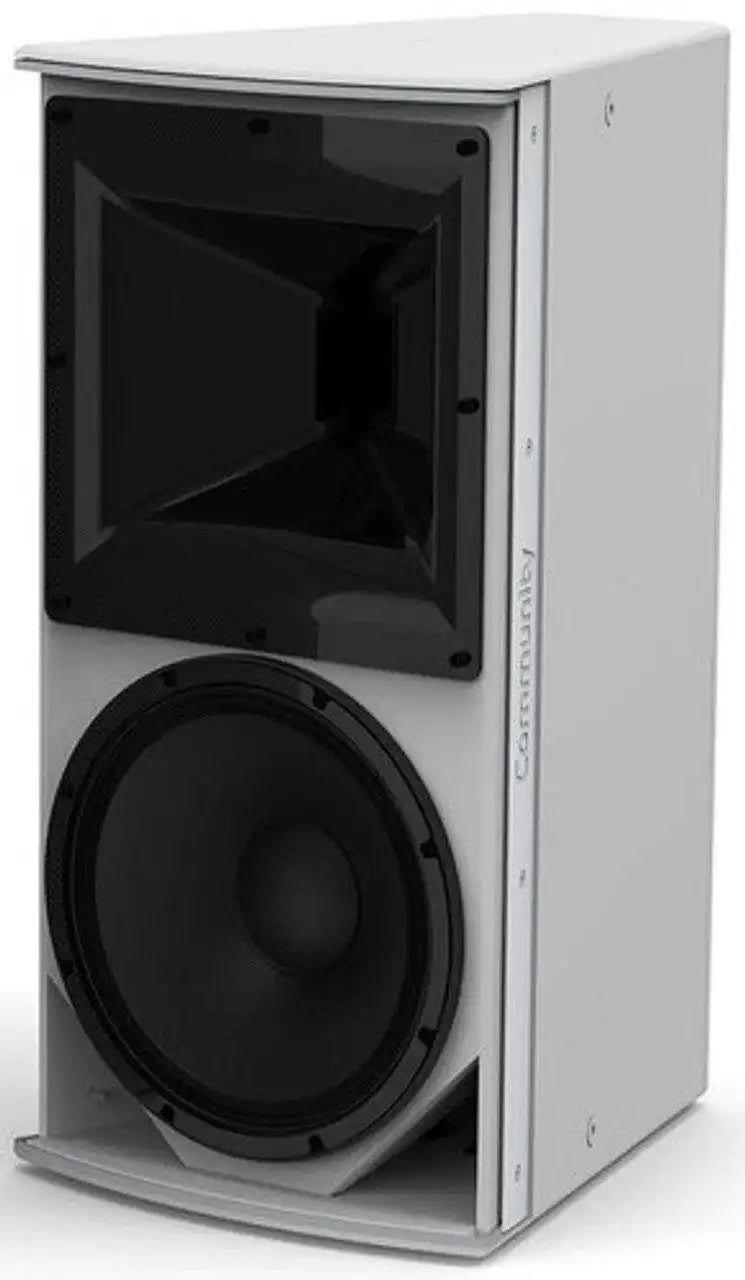

| Transducers | LF: 1 x 12" (305 mm) neodymium, 3" voice coil, demodulation ring; HF: 1 x 1.4" (36 mm) exit compression, 2.6" voice coil, ketone polymer diaphragm, neodymium |
| Continuous Power Handling | Passive, 80V: 800W @ 8 ohms (3200W peak) |
| Nominal Sensitivity | Passive: 94 dB @ 1W/2.83V |
| Nominal Maximum SPL | Passive: 123 dB continuous; 129 dB peak |
| Recommended Amplifier | Passive: 800W - 1600W @ 8 ohms (80V - 113V) |
| Mounting Points | (15) M10 threaded rigging points |
| Environmental | IPX4 per IEC 60529, designed in accordance with MIL-STD-810G |
| Finish | White, I SERIES Point Source 800 |
| Dimensions (H x W x D) | 28.0" x 14.5" x 17.7" (711 x 367 x 449 mm) |
Frequently Asked Questions
Can the IP8-1122 run in biamp mode?
Yes. It supports user-selectable passive or biamp operation with DSP, allowing separate amplification of the LF and HF sections.
What is the coverage pattern of the /94?
The /94 delivers a nominal 90° x 40° pattern through its rotatable 13-inch HF waveguide.
Is it rated for indoor installation?
Yes. This model is specified for indoor operating environments and is built to IPX4 and MIL-STD-810G design criteria.
