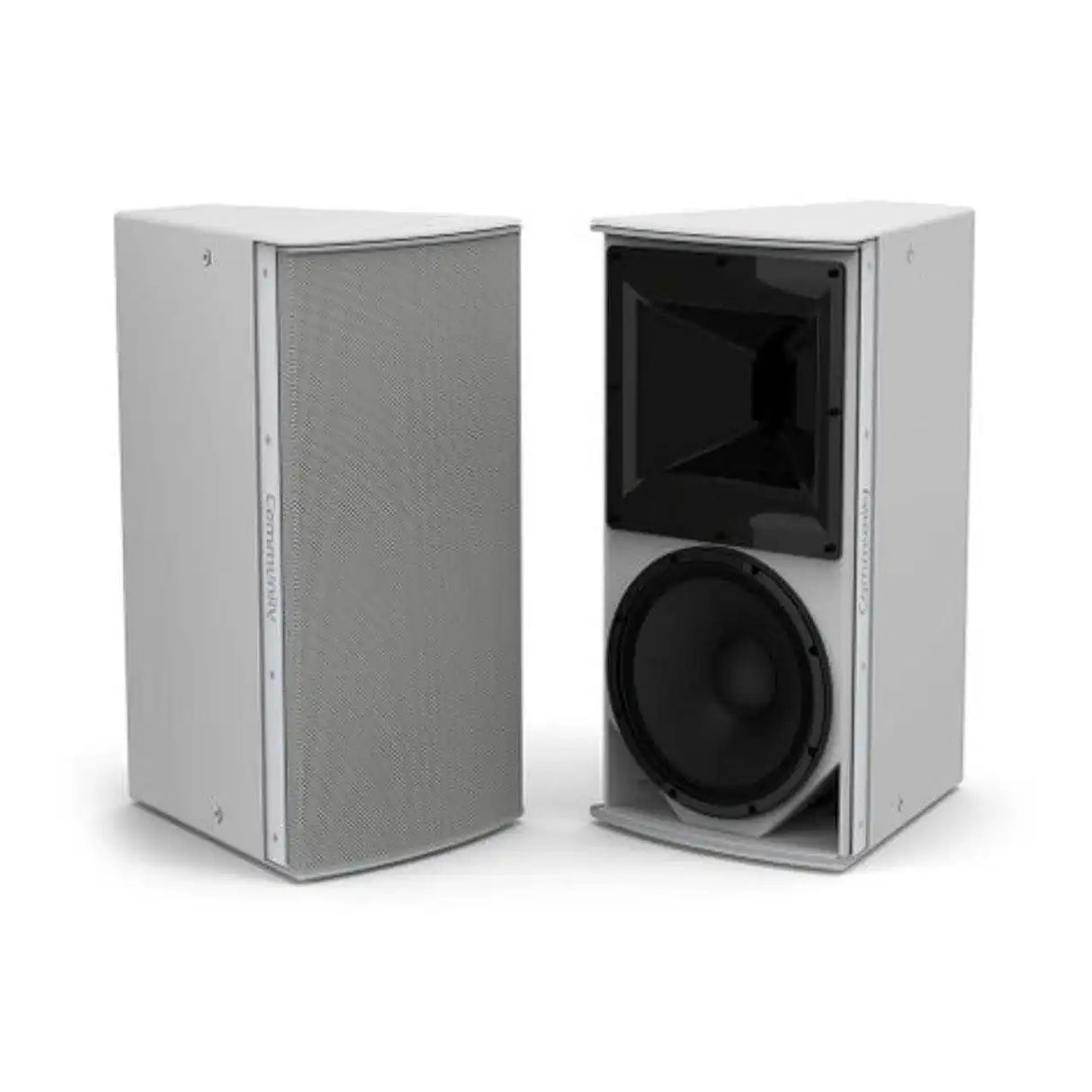

Biamp Community IP6-1152WR94 Medium Power 15-Inch 2-Way 90 X 40 Speaker (Weather Resistant, Grey)
Biamp Community IP6-1152WR94 Medium Power 15-Inch 2-Way 90 X 40 Speaker (Weather Resistant, Grey) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Community IP6-1152WR94 Medium Power 15-Inch 2-Way 90 X 40 Spe...
Product Overview
The Biamp Community IP6-1152WR94 is a weather-resistant 15-inch two-way point source installation loudspeaker built for outdoor and indoor sound reinforcement. As a passive install loudspeaker from the I SERIES Point Source 600 family, it pairs a long-excursion 15-inch LF driver with a rotatable HF waveguide for 90 x 40 coverage. It is well suited for stadiums, houses of worship, and themed entertainment venues that demand high-output, weatherproof loudspeakers with predictable pattern control.
Product Description
The IP6-1152WR94 is part of the Community I SERIES Point Source 600 range, engineered for systems integrators and consultants who need arrayable, rotatable coverage and modular bracketry. FEA-optimized ferrite motors, mechanically mirrored suspension, and an advanced cooling system deliver linear performance with minimal power compression. The custom long-excursion LF driver produces deep bass response and detailed mid-range at maximum SPL, while the HF driver uses a hybrid titanium and polyimide diaphragm on a low-compression, low-resonance phase plug for low distortion with abundant headroom. The rotatable 13-inch (330 mm) HF waveguide gives well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers allow horn patterns to be mixed across an installation, and user-selectable single-amp or biamp operation expands design flexibility. A grey exterior-rated coating and powder-coated marine-grade aluminum grille make it suitable for harsh outdoor environments.
Key Features
- Long-excursion 15-inch LF driver — A ferrite motor with FEA-optimized magnetics and symmetric-movement suspension delivers deep, controlled low-frequency output.
- Hybrid HF compression driver — A 3-inch voice coil, 1.4-inch exit HF driver with titanium/polyimide diaphragm on a low-compression phase plug reproduces highs with low distortion.
- Rotatable HF waveguide — The large rotatable waveguide and individually voiced crossover support mixed coverage patterns within a single array.
- Single-amp or biamp operation — Users can select single-amp or biamp drive per enclosure to match the amplifier and processing design.
- Weather-resistant construction — A grey exterior-rated coating and powder-coated marine-grade aluminum grille protect the loudspeaker outdoors.
- Modular bracket compatibility — Low-profile modular bracket systems create elegant arrays with simplified suspension and faster installation.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Type | 15-inch two-way passive point source, weather-resistant |
| LF Transducer | 1 x 15" cone, 3" voice coil, ceramic motor |
| HF Transducer | 1 x 1.4" exit, 3" voice coil, titanium diaphragm, ceramic motor |
| Operating Range | 30 Hz - 19.5 kHz |
| Sensitivity (1W/1m) | 95 dB |
| Power Handling | 600W continuous @ 8 ohms |
| Continuous Max Output | 123 dB (129 dB peak) |
| Nominal Beamwidth (H x V) | 90 x 40 |
| Finish | Grey heavily textured exterior-rated coating, powder-coated marine-grade aluminum grille |
| Dimensions (H x W x D) | 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm) |
Frequently Asked Questions
Is the IP6-1152WR94 rated for outdoor use?
Yes. It uses a grey exterior-rated coating and a powder-coated marine-grade aluminum grille for weather-resistant outdoor and indoor installation.
Can it be run passively or biamped?
The loudspeaker supports user-selectable single-amp (passive) or biamp operation per enclosure.
What coverage pattern does this model provide?
This model provides a nominal 90 x 40 (H x V) coverage pattern; other patterns are available in the IP6-1152 series.
