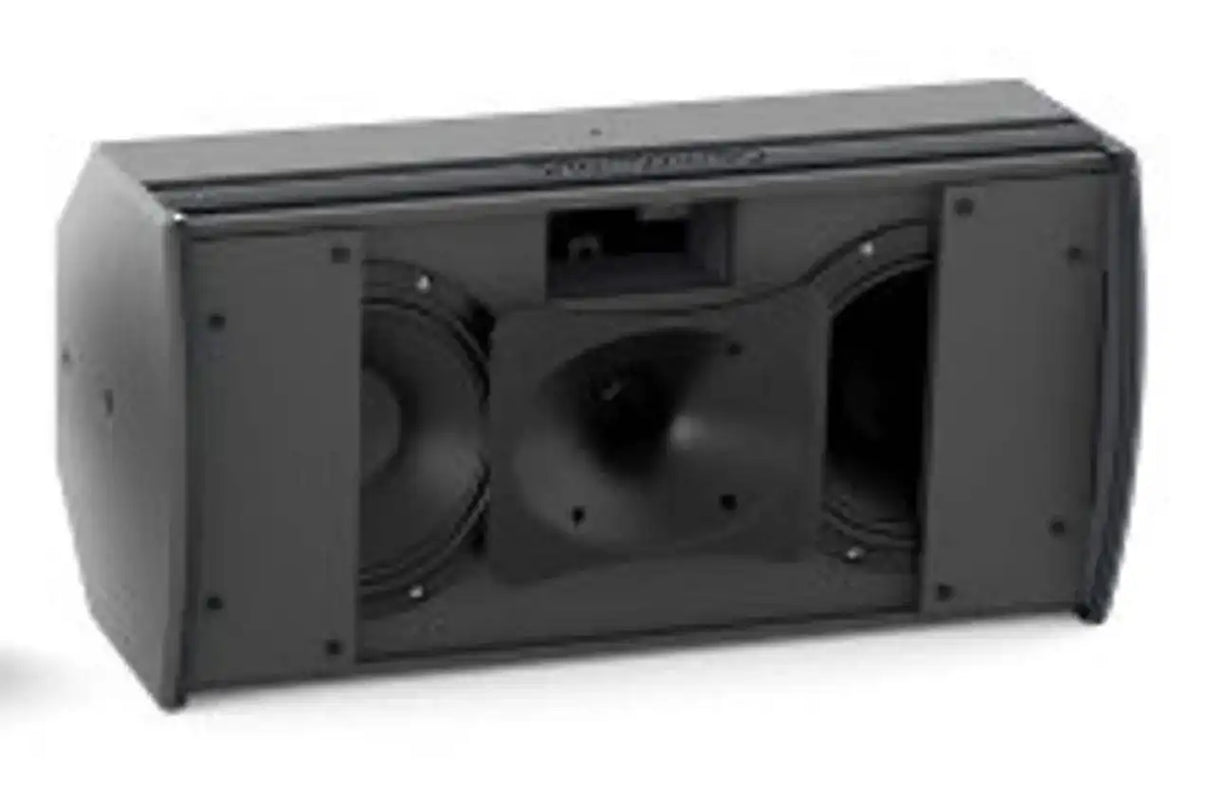

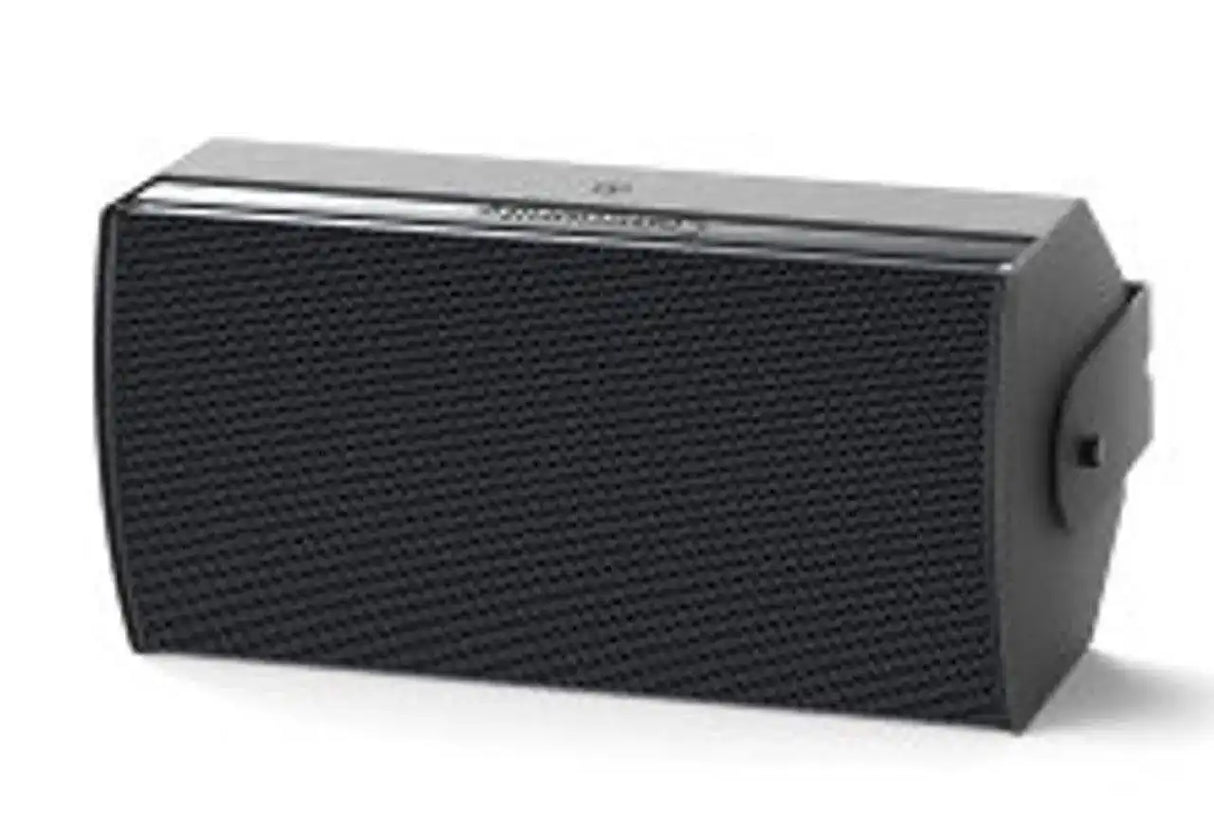

The Community IC6-2082WT96 loudspeaker system is a two-way, full-range design incorporating two 8 in. (203mm) ferrite LF drivers with inherently weather resistant cones and one 1 in. (25mm) exit ketone polymer diaphragm, neodymium compression driver. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 1100 Hz. The system is equipped with a high performance 200W autoformer for use in 70V/100V audio systems, with taps of 25W, 50W, 100W, and 200W for 70V operation (50W, 100W, and 200W for 100V systems). The modified trapezoidal loudspeaker enclosure is constructed of a thermally stable, dense structural-grade composite embedded with dual layers of fiberglass cloth and is fitted with (9) M10 and (4) M8 rigging inserts. The enclosure has a dual-layer finish of heavy exterior-grade paint and a UV resistant top coat. The front of the enclosure is fitted with a wraparound powder-coated 1.5mm perforated marine-grade aluminum grille backed with acoustically transparent woven fabric that has been treated with a hydrophobic compound. The secured input panel cover and gland nut provides a sealed connection for the internally connected 12 ft (3.6m) 14 gauge SJOW cable. The system has an operating range of 49 Hz to 19.5 kHz (-10dB SPL). The system produces a sound pressure level of 99 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and is capable of producing a continuous output of 124 dB SPL (with peak output of 130 dB SPL) on axis at one meter. The nominal dispersion is 90° H x 60° V. The loudspeaker is 11.30 in. (287 mm) H x 22.46 in. (571 mm) W (front) x 5.81 in. (148 mm) W (rear) x 10.62 in. (270 mm) D, and weighs 27.9 lbs. (12.7 kg).
The IC6-2082/26 is designed for demanding extended high output, high performance applications without sacrificing fidelity or coverage consistency. Most symmetrical dual 8" 2-way loudspeakers suffer from serious coverage inconsistencies through the crossover region. The IC6-2082/26 solves this problem by using a very high quality, low distortion 1.7" diaphragm neodymium HF compression driver on a large field-rotatable horn that is crossed over to partially baffled 8" LF drivers at an unusually low crossover frequency. The combination of baffles and low crossover point allows the IC6-2082/26 to perform similarly to a coaxial loudspeaker, resulting in a consistent, symmetrical, and wide coverage pattern through its operating range. The long excursion LF drivers and low velocity port effortlessly extend LF performance at any output level. Additionally, 16 ohm or 70V/100V models expand application flexibility both indoors and out. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.
- Engineered for demanding high output, high performance applications
- Exceptional fidelity with elegant I SERIES aesthetics
- Large, field-rotatable HF horn and LF pattern control technology for wide, consistent coverage
- 70V/100V model
- Technical Specifications
- Operating Environment: Weather-Resistant Outdoor
- Operating Range: 49 Hz to 20 kHz
- Nominal Beamwidth (H x V): 120° x 60°, rotatable waveguide
- LF 2 x 8" (203mm) ferrite driver, 1.5" (37mm) voice coil
- HF 1 x 1" (25mm) exit, 1.7" (44mm) voice coil, ketone polymer diaphragm, neodymium compression driver
- Recommended Amplifiers: 300W -600W @ 16 ohms, (69V - 98V)
- Input Connection: (1) Screw terminal block (5-position)
- Mounting Points: (9) M10 threaded inserts; (4) M8 threaded inserts (rear)
- Environmental Outdoor: IP55W per IEC 60529, MIL-STD-810G
- Weight: 27.9 lbs (12.7 kg) loudspeaker
- Dimensions: 11.30" x 22.46" x 10.62" (287 x 571 x 270 mm)
